1314640000 - 5mm PCB Female Connector, 90° Angle, 4 Poles (Pack of 78)

SKU: SKU: 1314640000 Download PDF

Select a Variant:

1314640000 - 5mm PCB Female Connector, 90° Angle, 4 Poles (Pack of 78)

SET THE QTY:

Now $370.23 Web pricing policy

~~BEFORE $0.00~~ Now $370.23 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

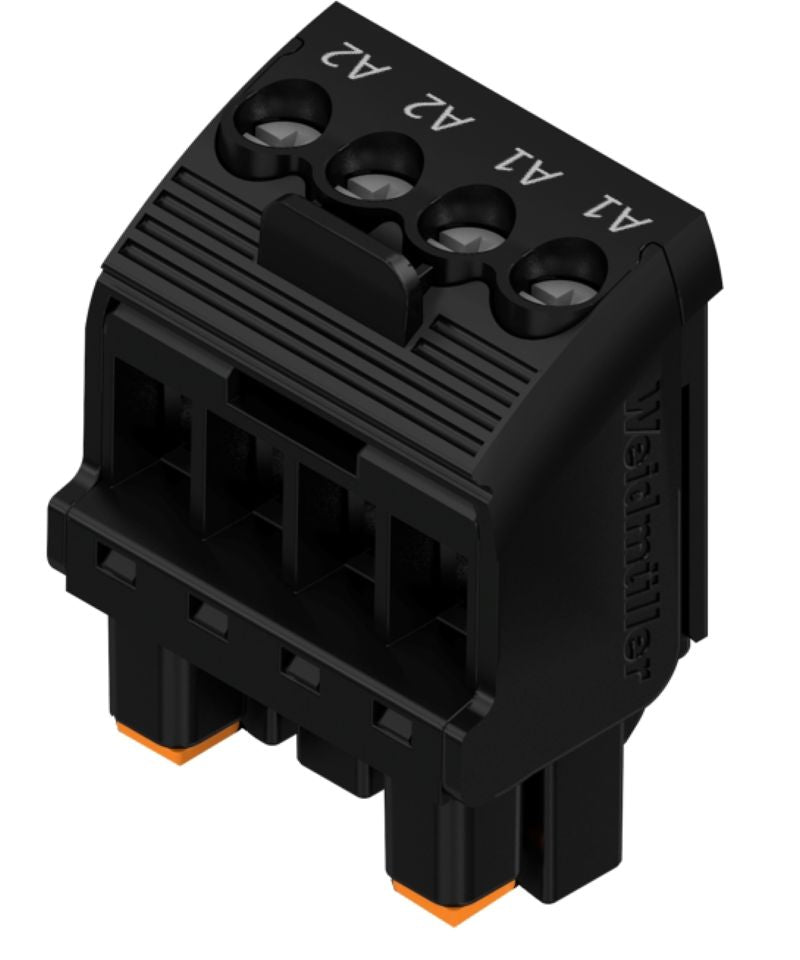

Introducing the BHZ 500/04/90LH female plug-in connector, expertly crafted for PCB applications This connector features a 500 mm pitch and a 90° angle for efficient connections With capacity for 4 poles and a clamping yoke connection method, it is designed for easy installation without the need for coding It supports wire sizes from 02 to 25 mm², with an impressive current rating of 10 A and operates safely at voltages up to 400 V.

Perfect for your electronic projects that require reliable connectivity.

Features and Benefits:

•Compliant with RoHS and free from exemptions.

•Safe from back-of-hand touch.

•Touch-safe protection according to DIN standards.

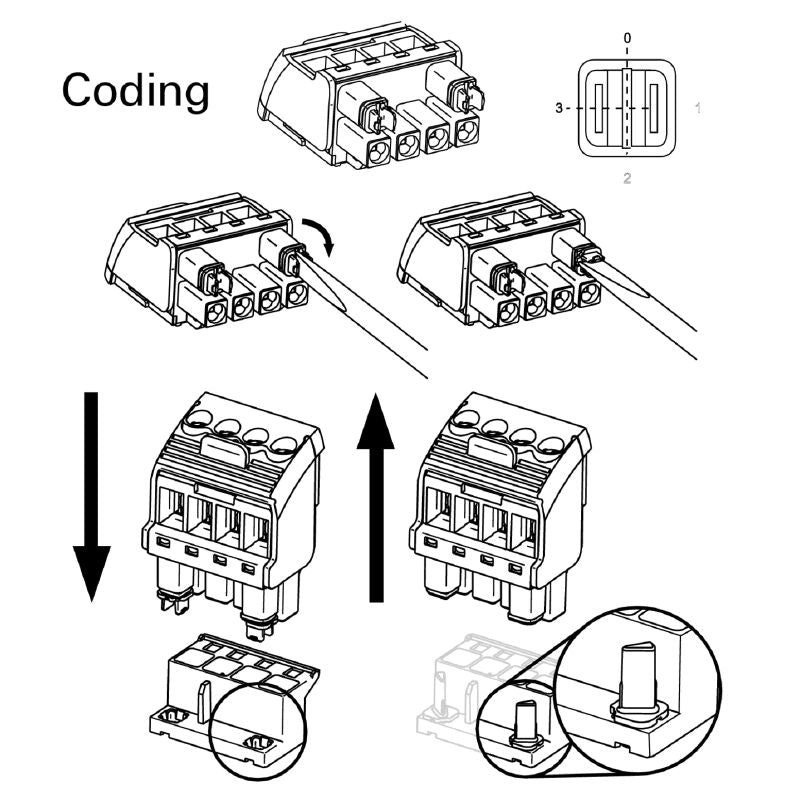

•Can be coded for additional security.

•Available in a variety of insulation materials.

Specifications:

Depth	30.6 mm
Height	29 mm
Width	22.4 mm
Length	14.6 mm
Rated Cross-Section	2.5 mm²
Pitch	5 mm
Number of Poles	4
Protection Degree	IP20
Tightening Torque, Min.	0.4 Nm
Tightening Torque, Max.	0.6 Nm
Storage Temperature, Min.	-40 °C
Storage Temperature, Max.	70 °C
Operating Temperature, Min.	-25 °C
Operating Temperature, Max.	120 °C
Insulating Material	PA 66 GF 30
UL 94 Flammability Rating	V-0
Conductor Outlet Direction	90°
Plugging Cycles	25
