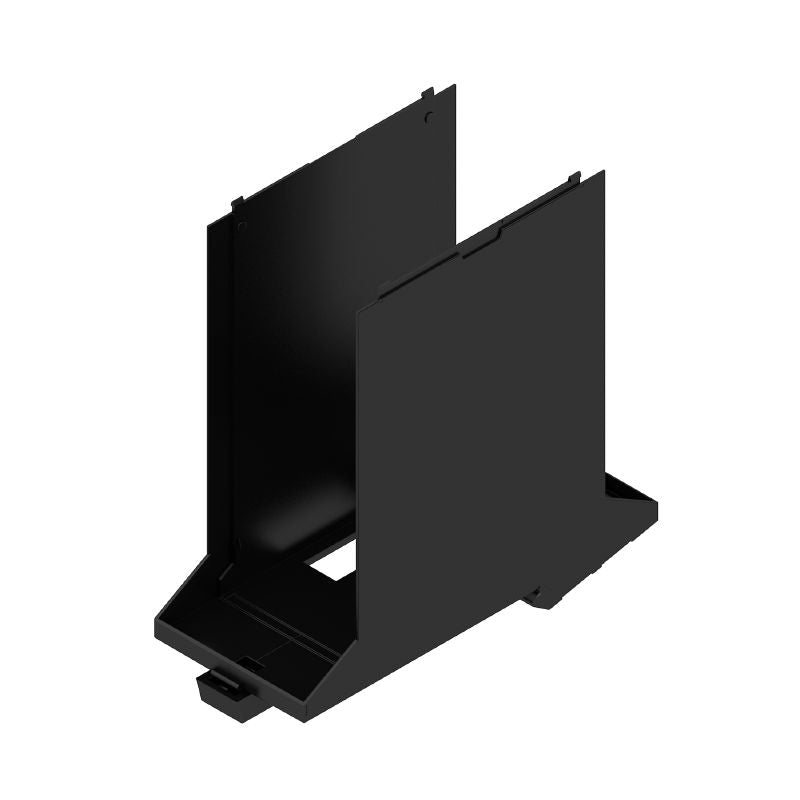

1476000000 - OMNIMATE 45mm Modular Housing with Black Base (Pack of 6)

SKU: SKU: 1476000000 Download PDF

Variant:

1476000000 - OMNIMATE 45mm Modular Housing with Black Base (Pack of 6)

Now $44.66

~~BEFORE $0.00~~ Now $44.66

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

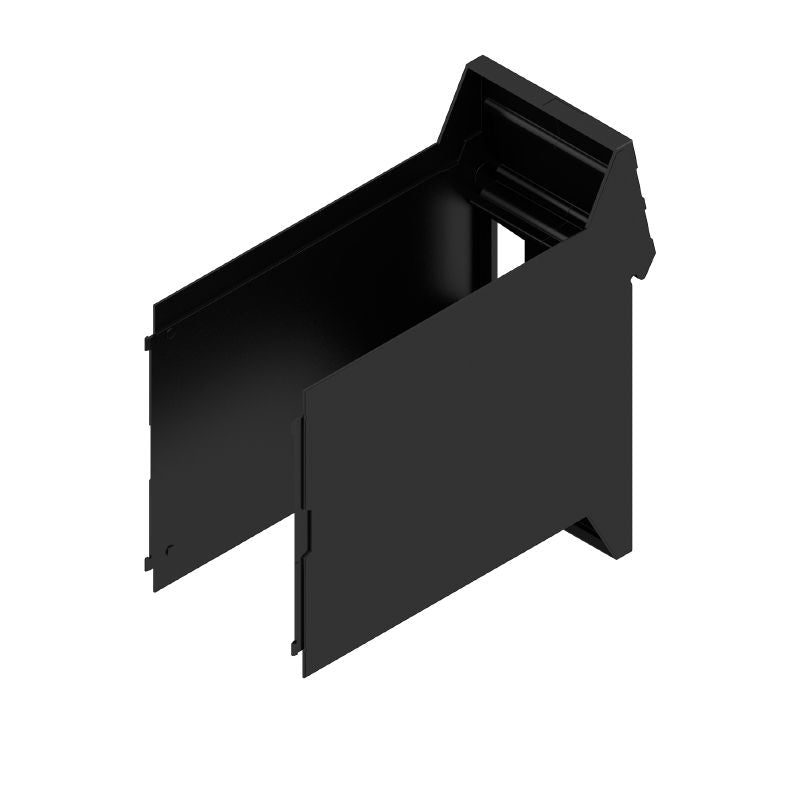

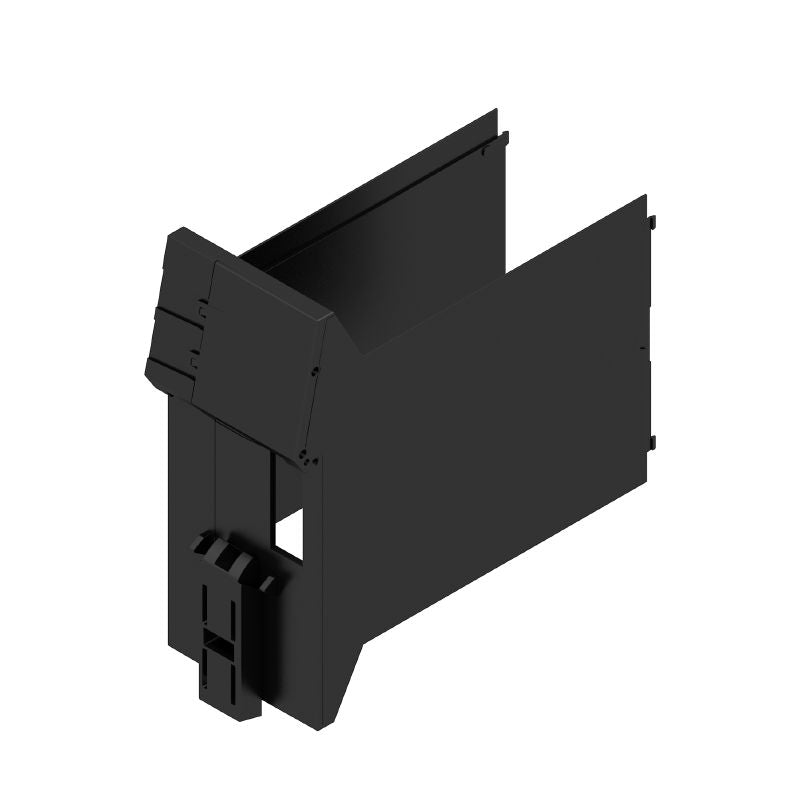

The CH20M45 B BUS BK/BK 2010 is a versatile modular housing from the OMNIMATE line, crafted with a black base element that includes a specialized recess in the detent foot area to accommodate BUS contact With a width of 45 mm, it is designed to meet a variety of application needs effectively.

Features and Benefits:

•Module housing with a recess for BUS contacts.

•Easy installation with a TS 35 mounting rail.

•Compliant with RoHS and has no SVHC above 0.1 wt%.

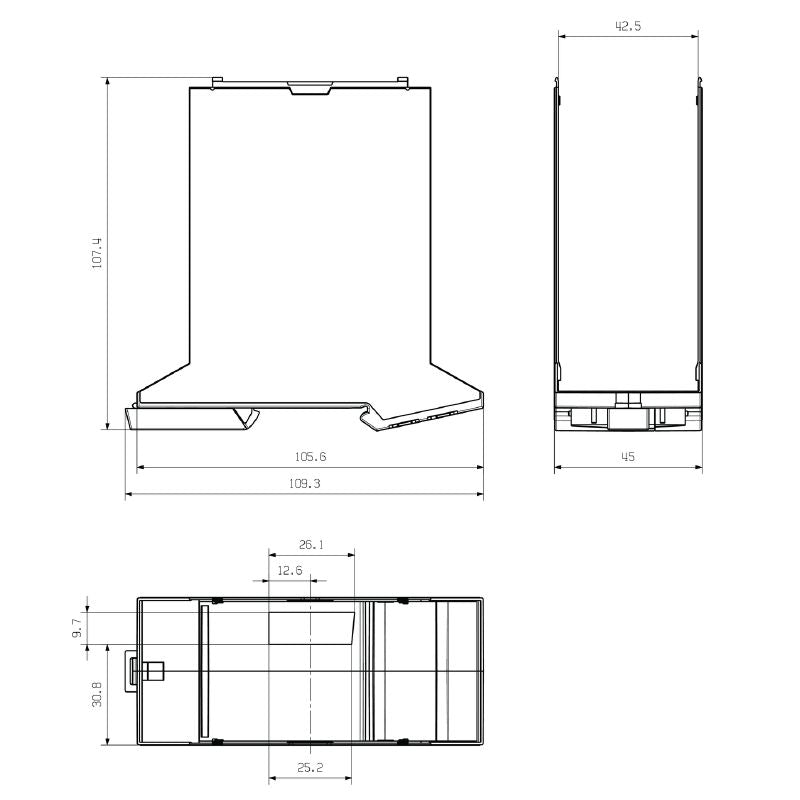

Specifications:

Depth	108 mm
Height	109.3 mm
Width	45 mm
Ambient temperature	-25 °C…85 °C
Operating temperature range	-40...120 °C
Humidity	5 - 93% relative humidity, Tu = 40°C, no condensation
Basic material	Plastic
Comparative Tracking Index (CTI)	600 ≤ CTI
Insulating material	PA 66 GF 30
Insulating material group	I
Surface finish	untreated
UL 94 flammability rating	V-0
Number of slots for female connectors	12
Number of PCBs, max	2
Number of connection levels, max	3
Number of poles, max	48
Height of components on the PCB (1 PCB), max	38.6 mm
Height of components on the PCB (2 PCBs), max	34.7 mm
Type of assembly of the PCB	double-sided
