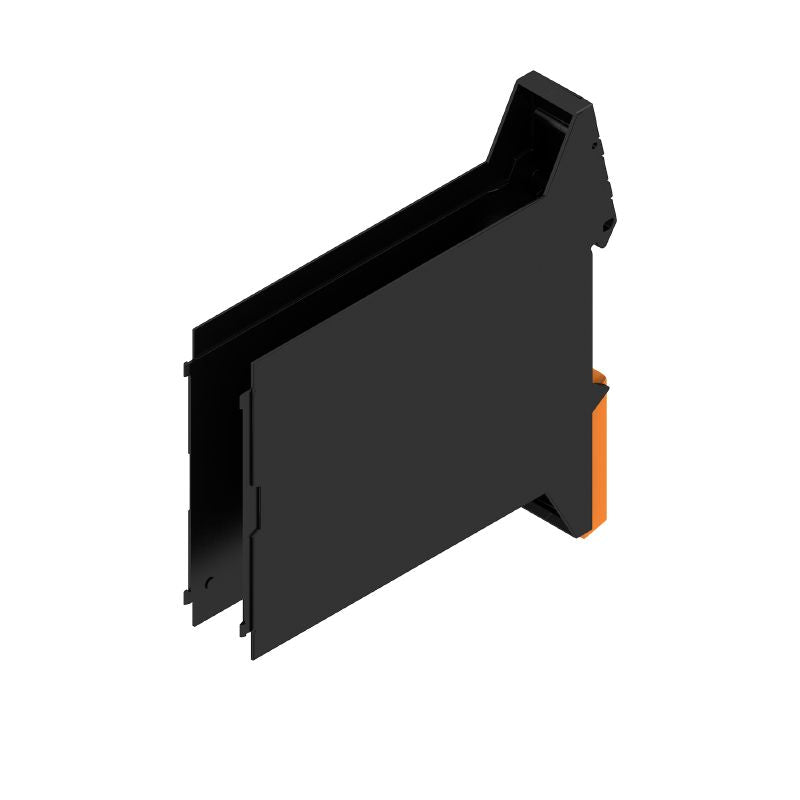

1254180000 - Black OMNIMATE Modular Housing, 17.5mm, 18 Poles Capacity (Pack of 12)

1254180000 - Black OMNIMATE Modular Housing, 17.5mm, 18 Poles Capacity (Pack of 12)

SKU: 1254180000   Download PDF

Select a Variant:
  • 1254180000 - Black OMNIMATE Modular Housing, 17.5mm, 18 Poles Capacity (Pack of 12)
Qty:
Now $53.24   Web pricing policy
BEFORE   $0.00 Now $53.24 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the modular housing for the OMNIMATE CH20M series, featuring a sleek black base element This innovative component includes a dedicated recess for BUS contacts, with a width of 175 mm Fully compliant with RoHS regulations, it is designed for diverse assembly applications, supporting up to 18 poles across three connection levels Its adaptable design makes it perfect for accommodating various printed circuit boards, offering you flexibility and reliability in your projects.

Features and Benefits:

    •Housing made of plastic with untreated surface finish.

    •Temperature resistance ranging from -40 to 120 degrees Celsius.

    •IP20 protection degree when installed.

    •Maximum slots for female connectors: 6.

    •Supports double-sided PCB assembly.

    •Customization options available for customer-specific labeling.

Specifications:

 Depth 108 mm
 Height 109.3 mm
 Insulating material PA 66 GF 30
 Operating temperature range -40 to 120 °C
 Ambient temperature -25 °C to 85 °C
 Protection degree IP20
 Number of connection levels, max 3
 Number of poles, max 18
 PCB thickness 1.6 mm
 UL 94 flammability rating V-0
