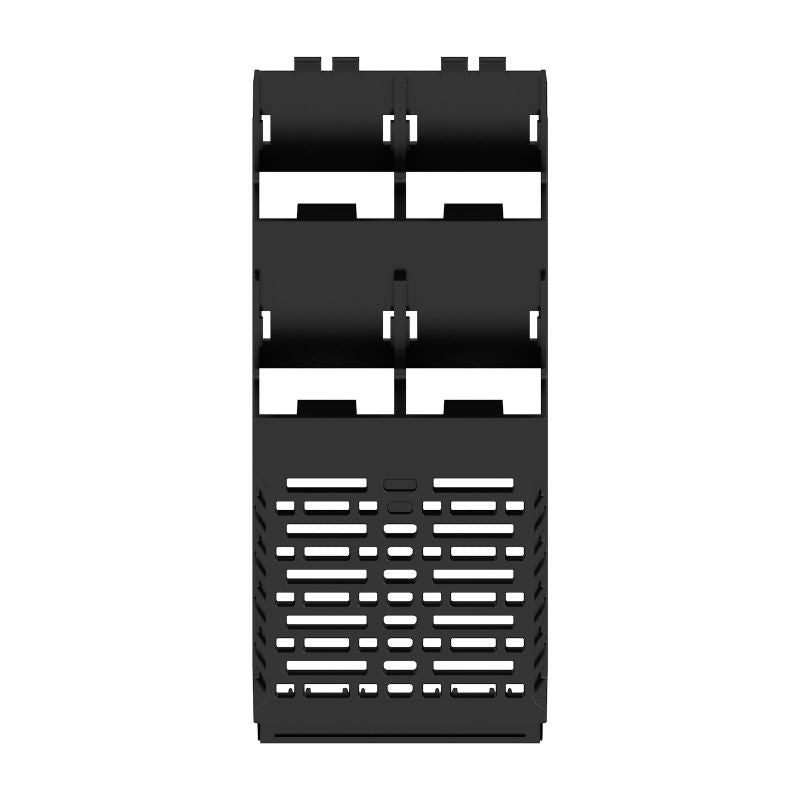

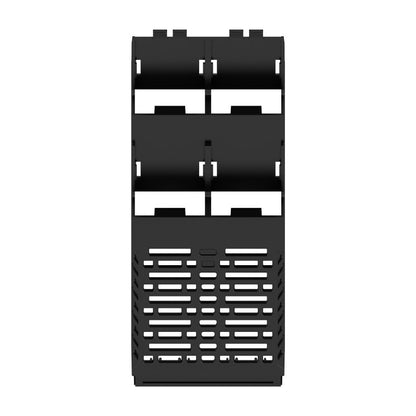

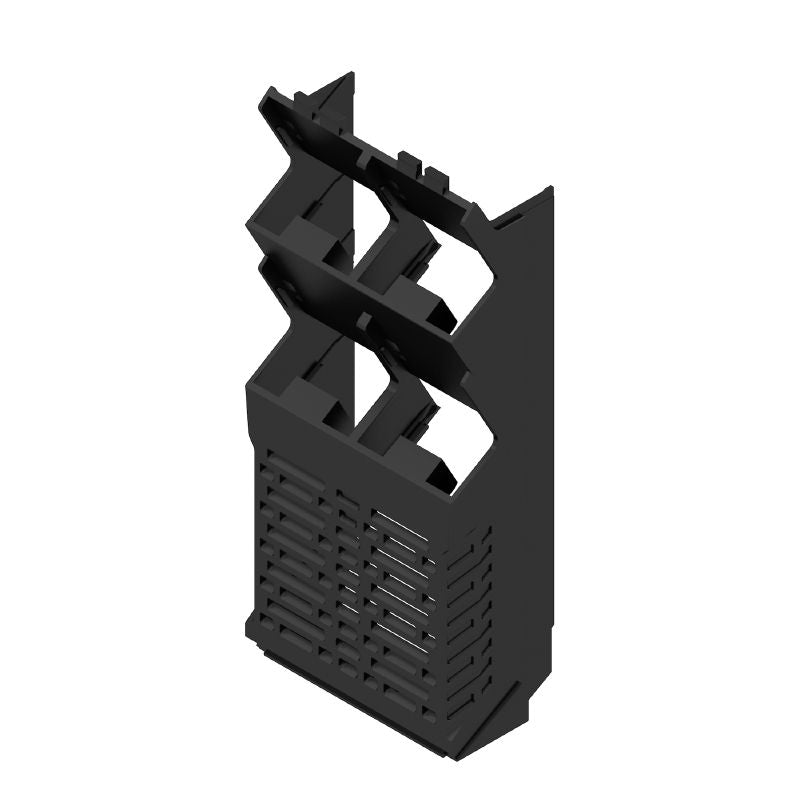

1111720000 - OMNIMATE CH20M45 Black Side Element, 45mm Width (Pack of 6)

1111720000 - OMNIMATE CH20M45 Black Side Element, 45mm Width (Pack of 6)

SKU: 1111720000   Download PDF

Select a Variant:
  • 1111720000 - OMNIMATE CH20M45 Black Side Element, 45mm Width (Pack of 6)
Qty:
Now $25.67   Web pricing policy
BEFORE   $0.00 Now $25.67 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the CH20M45 side element from the OMNIMATE Housing series in a striking black finish Measuring 45 mm in width, this component is perfect for reliable electronic connections Featured in the AIM ELECTRONICS catalog, it meets several compliance standards, including RoHS, ensuring safe and responsible usage Built to last, this housing is ideal for applications where durability and efficiency are paramount.

Features and Benefits:

    •Compliant with RoHS standards without exemptions.

    •Net weight of 13.2 g.

    •Protection degree of IP20 when installed.

    •Operating temperature range from -40 to 120 °C.

    •Humidity range of 5 - 93% relative humidity.

Specifications:

 Order No. 1111720000

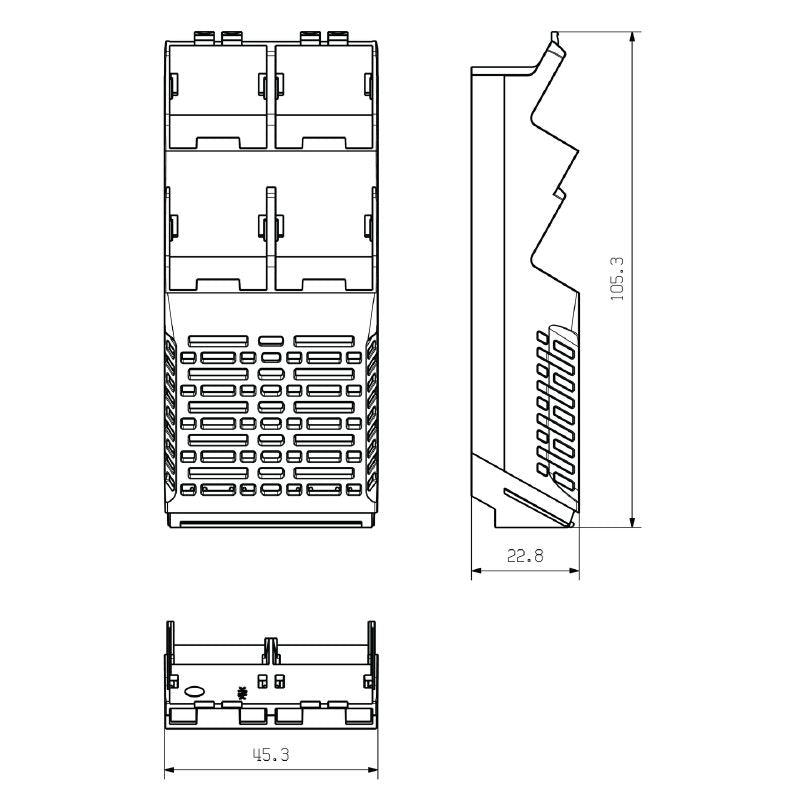

 Depth 105.3 mm
 Height 22.8 mm
 Width 45 mm
 Ambient temperature -25 °C to 85 °C
 Basic material Plastic
 Comparative Tracking Index (CTI) 600 ≤ CTI
 Insulating material PA 66 GF 30
 Insulating material group I
 Surface finish untreated
 UL 94 flammability rating V-0
 Number of connection levels 2
 Number of poles, max. 16
 Number of slots for female plugs 4
 Number of ventilation openings 2
 Color chart (similar) RAL 9011
 Cut out as preparation for functional port integrated No
