1104400000 - OMNIMATE Modular Housing, 45mm Wide, Black Finish, 108mm Depth (Pack of 6)

Description:

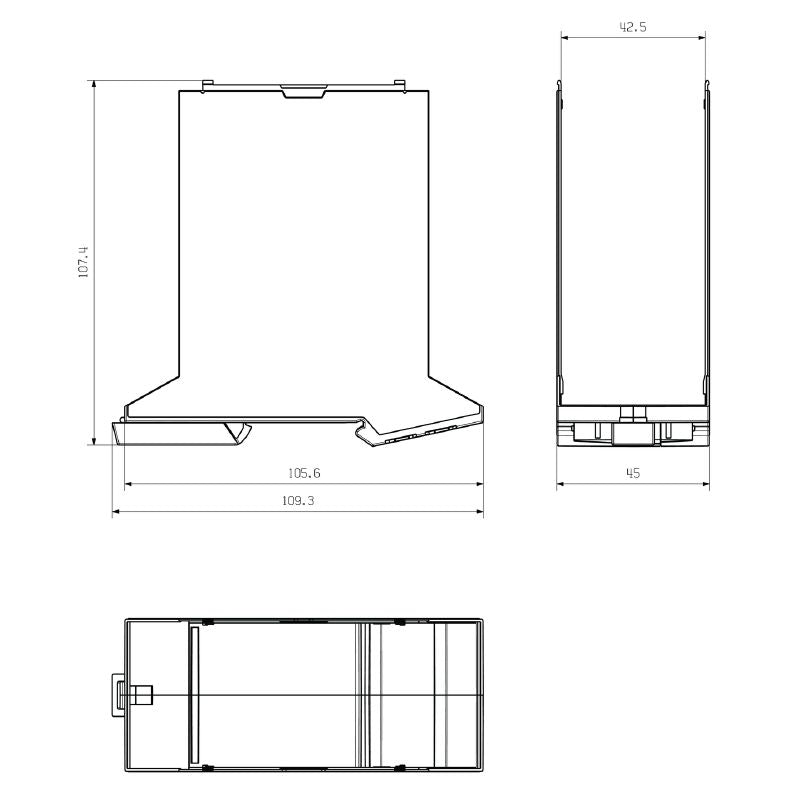

Introducing the CH20M45 B BK/BK 2010 from the OMNIMATE series, a versatile modular housing that combines functionality with a modern black aesthetic Measuring 45 mm in width, its robust plastic construction adheres to ROHS standards The housing dimensions are 45 mm (W) x 108 mm (D) x 1093 mm (H), weighing only 50 g This housing is engineered to perform in a wide range of environments, supporting ambient temperatures from -25 °C to 85 °C and operating temperatures between -40 °C to 120 °C.

It effectively manages humidity levels between 5% and 93%, making it suitable for diverse applications With design flexibility at its core, this modular housing can accommodate up to 12 female connector slots, allows for two printed circuit boards (PCBs), and enables configurations for up to 48 poles, making it an ideal choice for your assembly needs.

Features and Benefits:

•RoHS compliant without exemption.

•No encapsulation option.

•Double-sided PCB assembly type.

•Thermally tested under various conditions with specified power dissipation.

•Customer specific labeling possible.

Specifications:
