1104230000 - Light Blue OMNIMATE Side Element, 12.5mm x 105.5mm x 22.8mm (Pack of 14)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

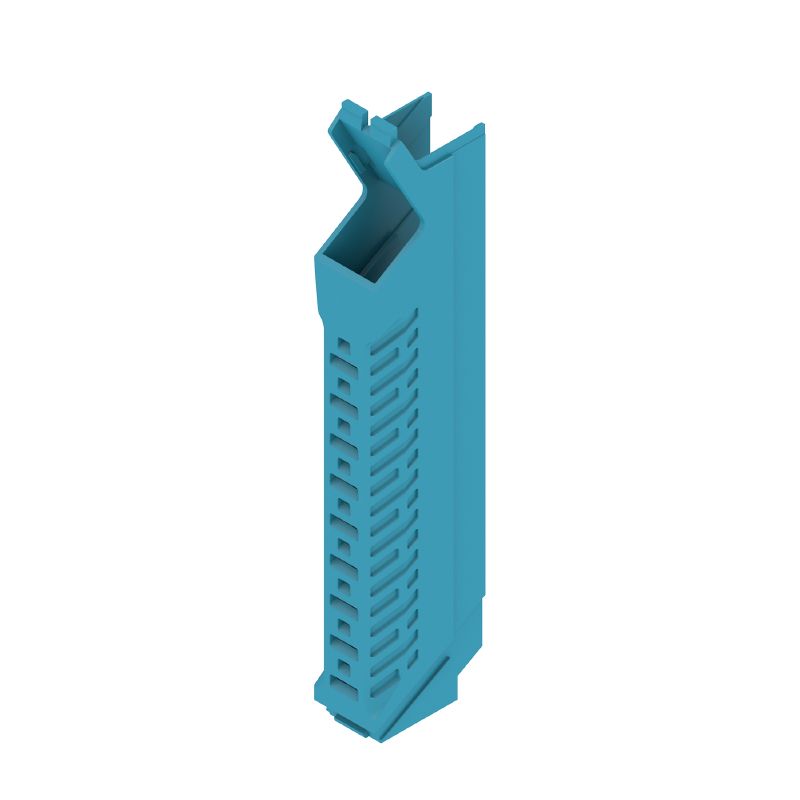

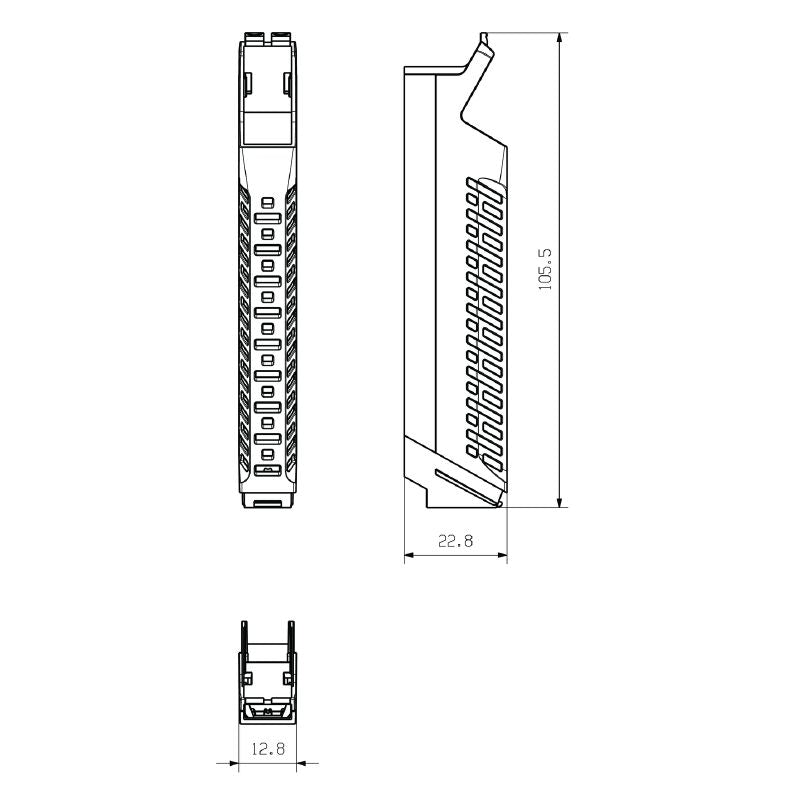

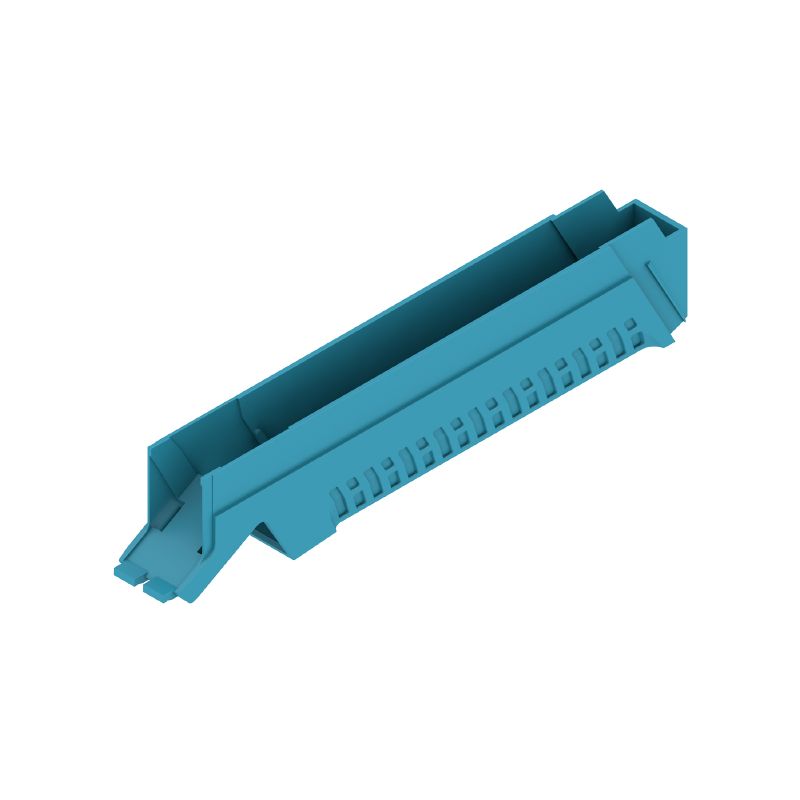

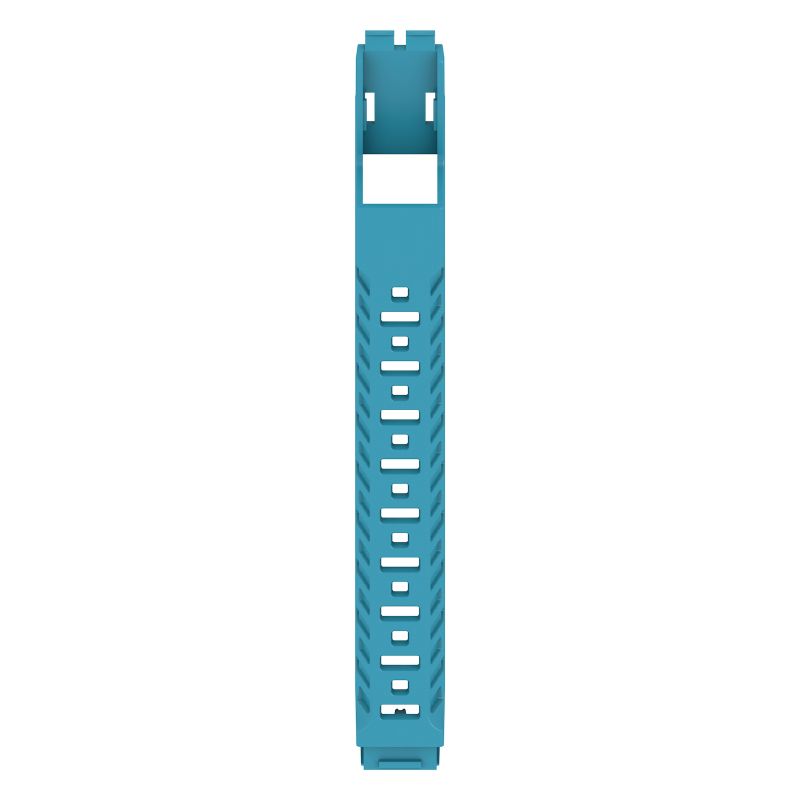

Introducing the CH20M12 S PSCSC BL 2013 side element, part of the OMNIMATE Housing series CH20M Featuring an attractive light blue hue, this component measures 125 mm in width, 1055 mm in depth, and 228 mm in height It complies with ROHS regulations and is designed to perform effectively in a temperature range of -25 °C to 85 °C, while withstanding peak operating temperatures of up to 120 °C With the ability to resist humidity levels from 5% to 93% relative humidity (without condensation), this durable plastic product boasts a CTI rating of 600 or lower.

Additionally, its untreated surfaces meet the UL 94 fire safety standard of V-0, ensuring safety and reliability in various applications.

Features and Benefits:

•Compliant with ROHS without exemption.

•No SVHC above 0.1 wt% in compliance with REACH.

•Protection degree rated at IP20 in installed state.

•Includes two ventilation openings.

•Single connection level with a maximum of two poles.

Specifications:
