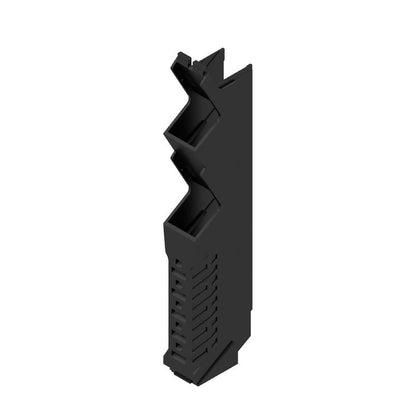

1104200000 - Black OMNIMATE Housing 12.5mm, IP20, 2 Levels, 4 Poles (Pack of 14)

SKU: SKU: 1104200000 Download PDF

Select a Variant:

1104200000 - Black OMNIMATE Housing 12.5mm, IP20, 2 Levels, 4 Poles (Pack of 14)

SET THE QTY:

Now $45.52 Web pricing policy

~~BEFORE $0.00~~ Now $45.52 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

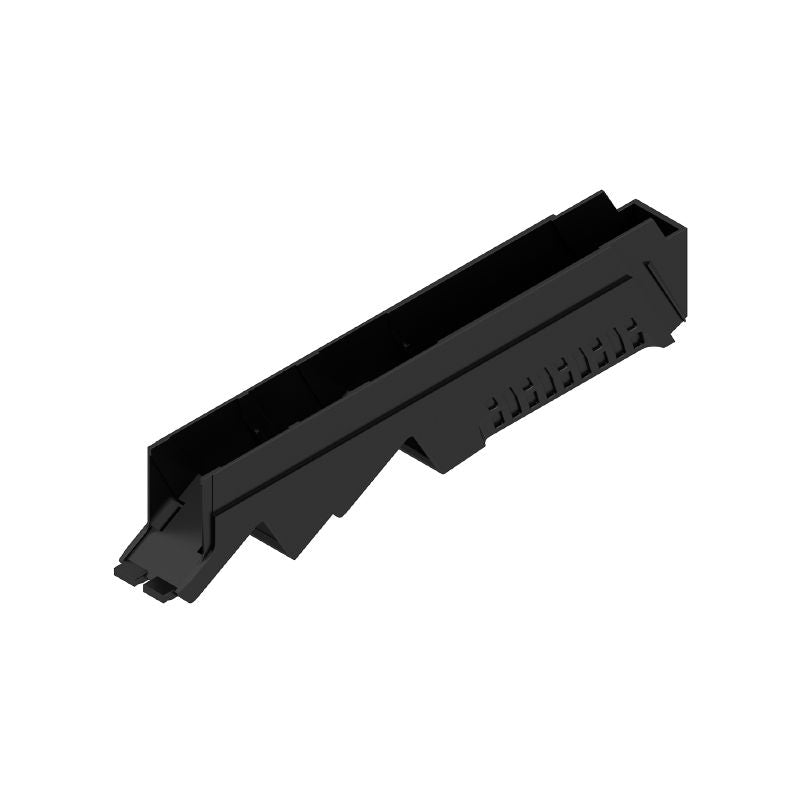

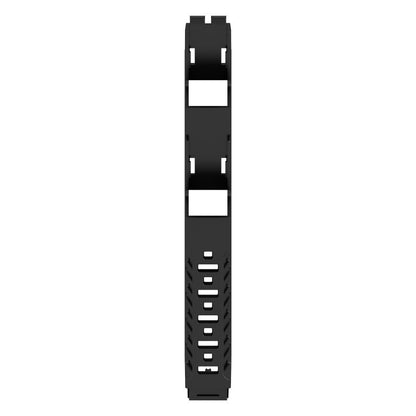

Introducing the CH20M12 S PPSC BK 2010, a robust OMNIMATE Housing side element presented in a chic black color With a compact width of 125 mm, this component is crafted from high-quality plastic and adheres to RoHS standards Designed to support up to two connection levels and accommodate four poles, it is a versatile choice for your electrical needs The housing features a ventilation opening and provides IP20 protection once installed, ensuring effective airflow while maintaining safety.

Features and Benefits:

•RoHS compliant without exemption.

•Basic material made of plastic.

•Not encapsulated.

•IP20 protection in installed state.

Specifications:

Order No.	1104200000
GTIN (EAN)	4032248878574
Depth	105.5 mm
Height	22.8 mm
Width	12.5 mm
Ambient temperature	-25 °C…85 °C
Operating temperature range	-40...120 °C
Humidity	5 - 93% relative humidity, Tu = 40°C, no condensation
Comparative Tracking Index (CTI)	600 ≤ CTI
Insulating material	PA 66 GF 30
Insulating material group	I
Surface finish	untreated
UL 94 flammability rating	V-0
Number of connection levels	2
Number of poles, max.	4
Number of slots for female plugs	2
Number of ventilation openings	1
Protection degree	IP20 in installed state
Colour chart (similar)	RAL 9011
