1086070000 - 5mm Female PCB Connector, 3 Pole, 90° Angle Design (Pack of 108)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

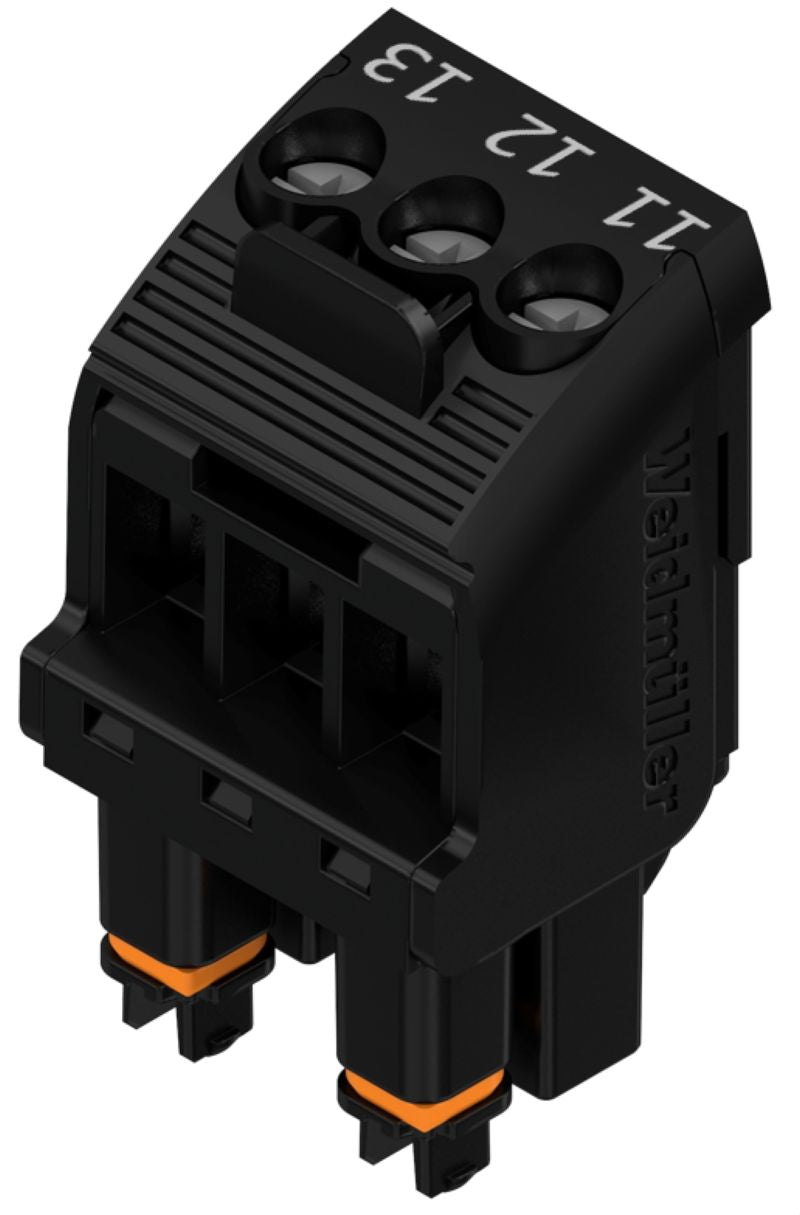

Introducing the BHZ 500/03/90LH, a reliable PCB plug-in connector with a female design, featuring a compact pin spacing of 500 mm arranged at a 90° angle This connector supports three poles and utilizes a clamping yoke for secure connections It's compatible with wire sizes from 02 to 25 mm², meeting IEC ratings of 400 V and 10 A, as well as UL ratings of 300 V and 10 A, accommodating AWG 26 to AWG 12 wires.

Each box contains a total of 108 connectors, making it a practical choice for your project needs.

Features and Benefits:

•Compact size, suitable for various PCB applications.

•Clamping yoke connection facilitating easy wire insertion.

•Touch-safe design protecting against accidental contact.

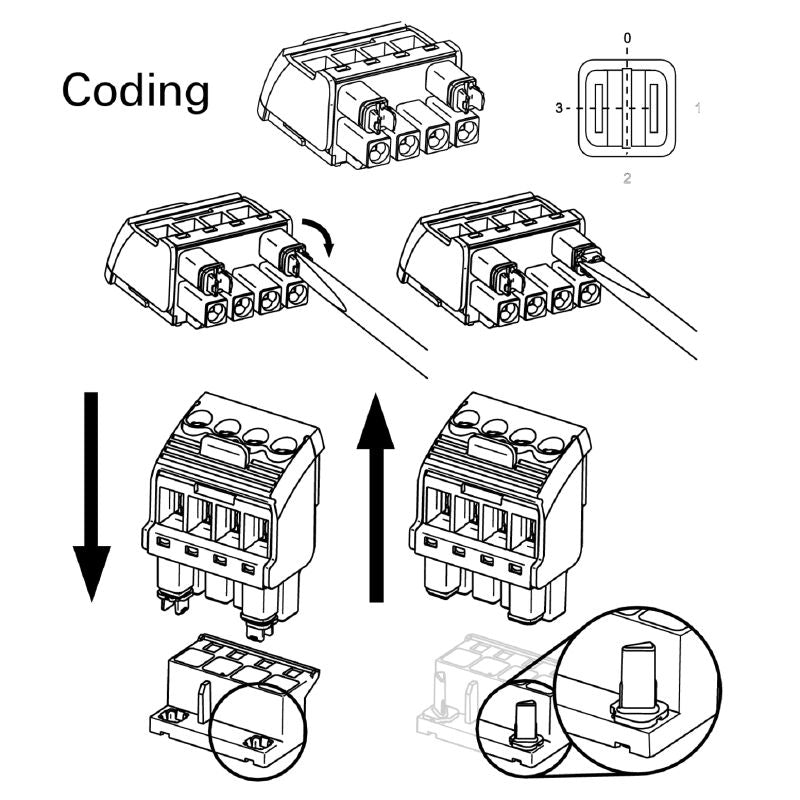

•Can be coded for different applications.

Specifications:
