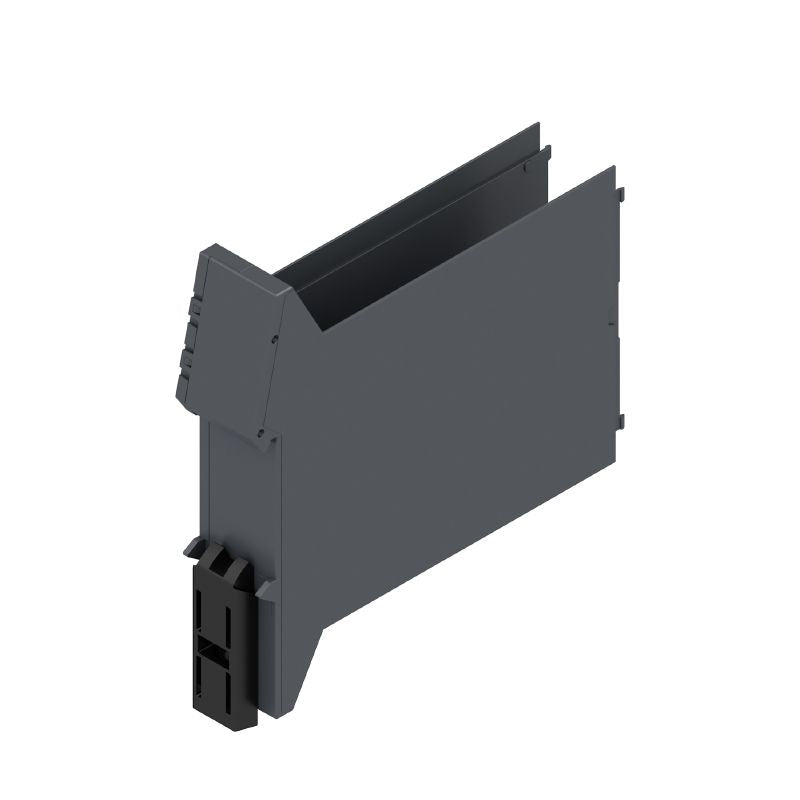

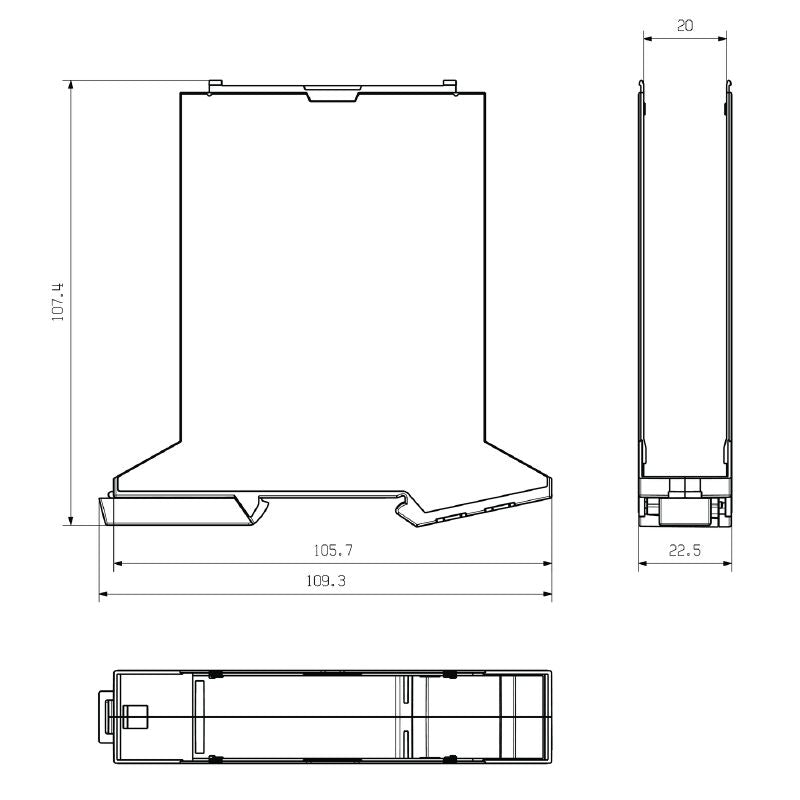

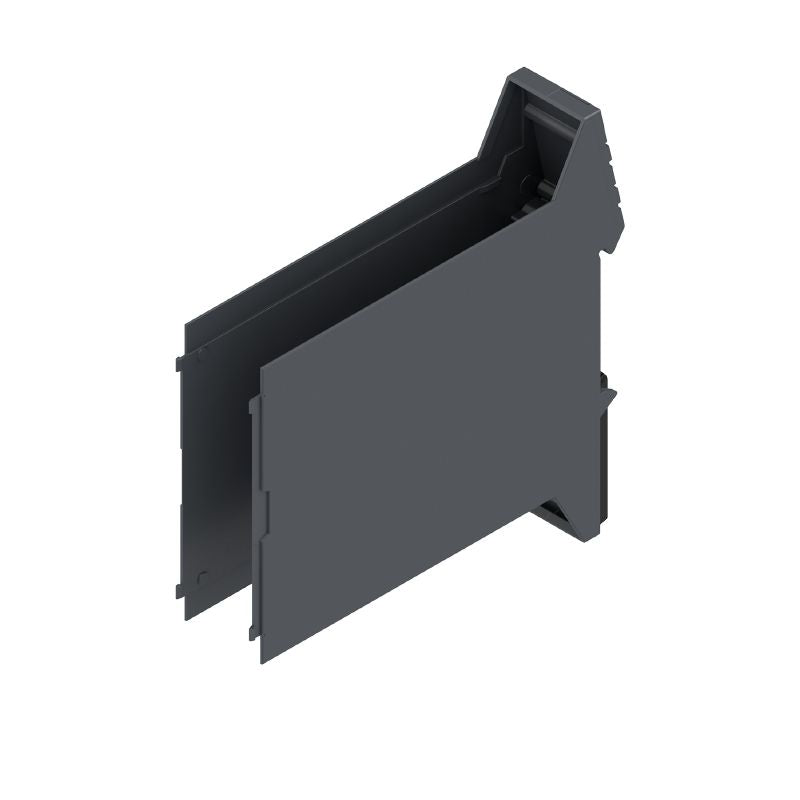

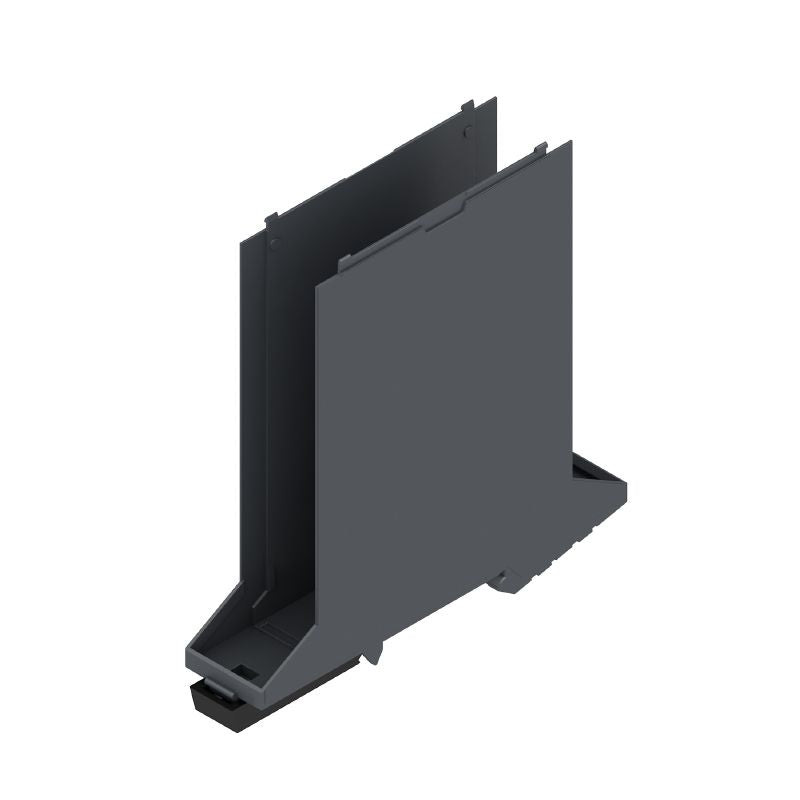

1073350000 - Modular 22.5mm Housing, Graphite Grey, RoHS Compliant (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CH20M22 B GGY/BK 2019 modular housing, crafted from robust plastic in a chic graphite grey shade This versatile component measures 225 mm wide and is ideal for an array of electronic applications Meeting RoHS standards, it is free from substances of very high concern (SVHC) With an impressive temperature tolerance ranging from -40 to 120 °C and capable of enduring humidity levels from 5% to 93% at 40 °C without condensation, this housing ensures reliable performance.

It supports up to 3 connection levels and accommodates 24 poles with space for 6 female connectors Designed with durability in mind, it complies with the DIN EN 61373:1999 standard to withstand shocks and vibrations.

Features and Benefits:

•Graphite grey color.

•Compliant with RoHS without exemptions.

•Insulating material is PA 66 GF 30.

•IP20 protection degree in installed state.

•Supports individualization options and laser processing.
