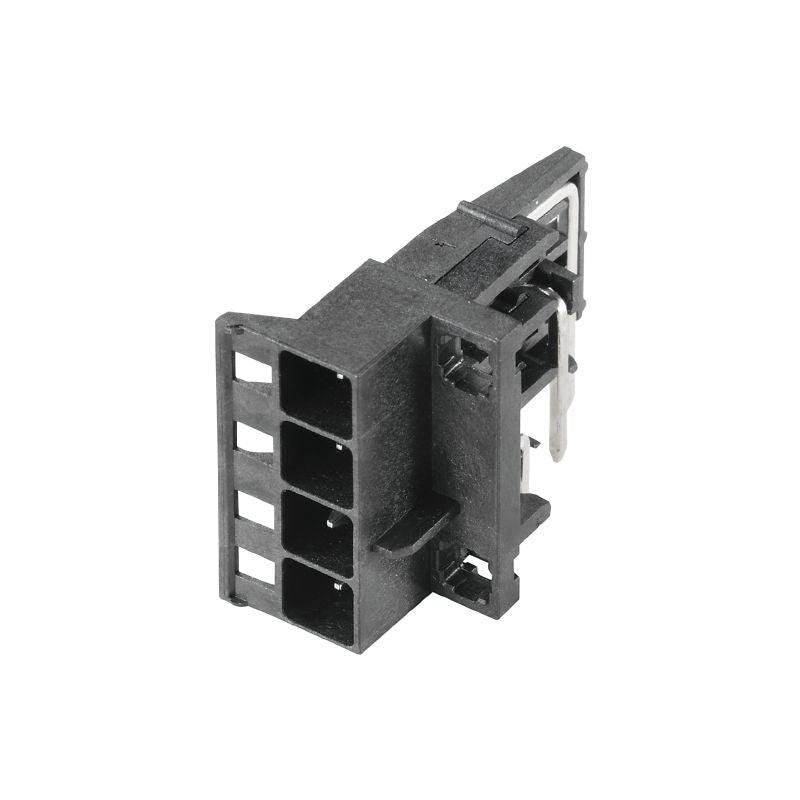

1069810000 - 5.00mm 4-Pole PCB Connector, Left Male Header, Black (Pack of 130)

1069810000 - 5.00mm 4-Pole PCB Connector, Left Male Header, Black (Pack of 130)

SKU: 1069810000 Download PDF

Variant:
  • 1069810000 - 5.00mm 4-Pole PCB Connector, Left Male Header, Black (Pack of 130)
Now $342.61
BEFORE   $0.00 Now $342.61
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

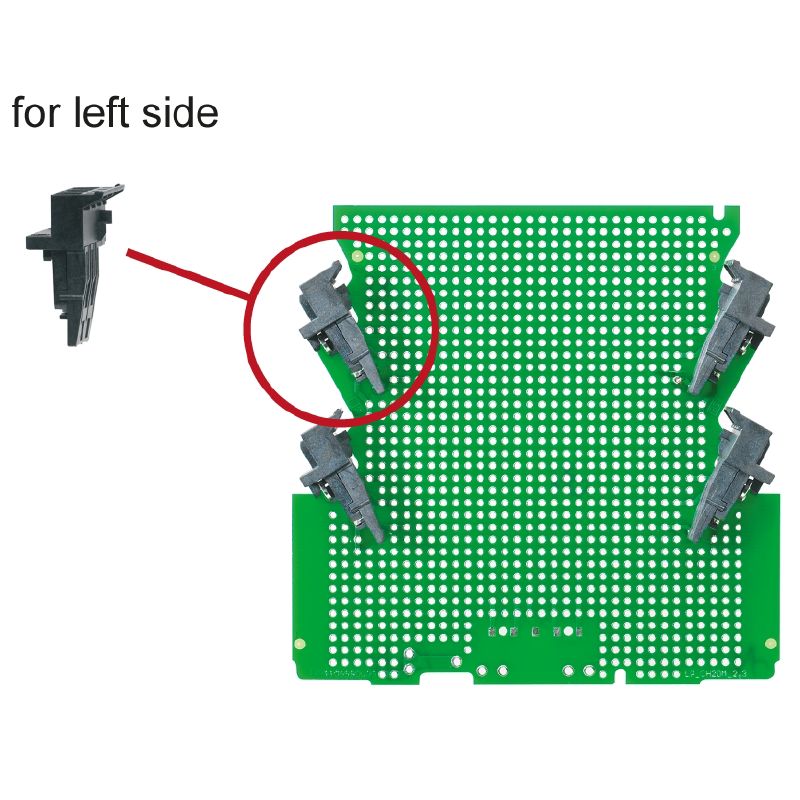

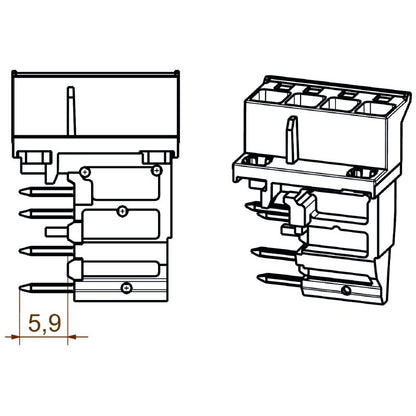

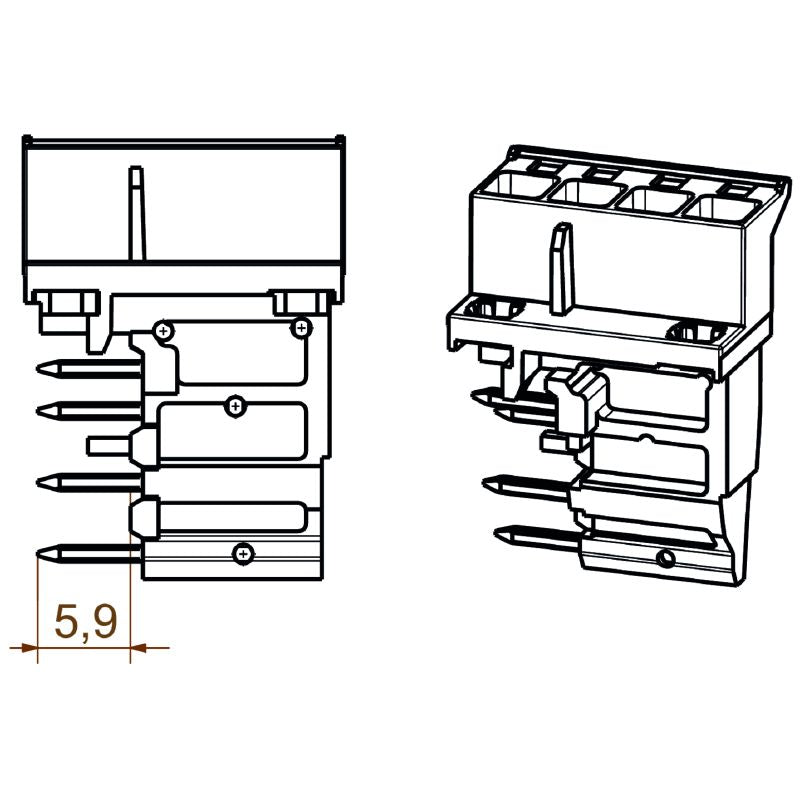

Upgrade your connectivity with this left male header PCB plug-in connector, specially crafted for THT/THR solder applications Featuring a 500 mm pitch and 4 poles, it’s designed for seamless integration The solder pins, coated in tin, measure 59 mm in length, ensuring a reliable connection Available in an elegant black color, this connector also boasts a UL file number E60693 and adheres to RoHS standards for your peace of mind.

Perfect for your project needs!.

Features and Benefits:

    •Number of poles: 4.

    •IP20 protection degree.

    •Can be coded.

    •Insulating material is LCP.

    •Moisture Level (MSL): 1.

    •UL 94 flammability rating: V-0.

    •Contact material: Copper alloy with tinned surface.

Specifications:

 IEC Voltage Rating 400 V
 UL Voltage Rating 300 V / 9 A / AWG 26 - AWG 12
 Depth 27.8 mm
 Height 14.4 mm
 Width 20.6 mm
 Rated current, max. number of poles (Tu=20°C) 10 A
 Rated current, max. number of poles (Tu=40°C) 9 A
 Rated voltage for surge voltage class / pollution degree II/2 400 V
 Rated voltage for surge voltage class / pollution degree III/2 320 V
 Rated voltage for surge voltage class / pollution degree III/3 250 V
 Rated impulse voltage for surge voltage class / pollution degree II/2 4 kV
 Rated impulse voltage for surge voltage class / pollution degree III/2 4 kV
 Rated impulse voltage for surge voltage class / contamination degree III/3 4 kV
