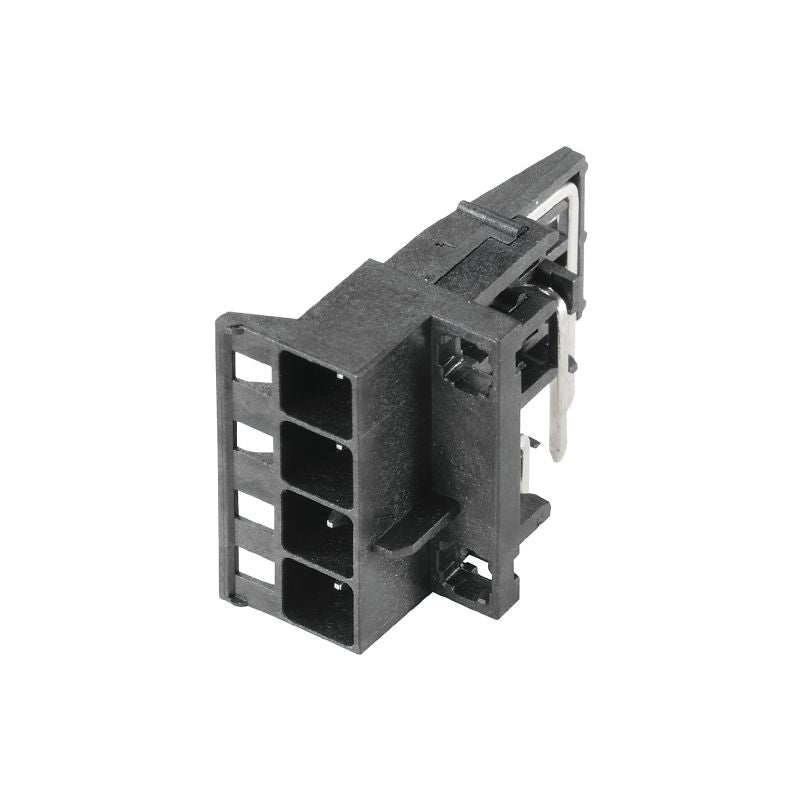

1069770000 - 5.00mm 4-Pole PCB Male Header Connector for Safe Connections (Pack of 108)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

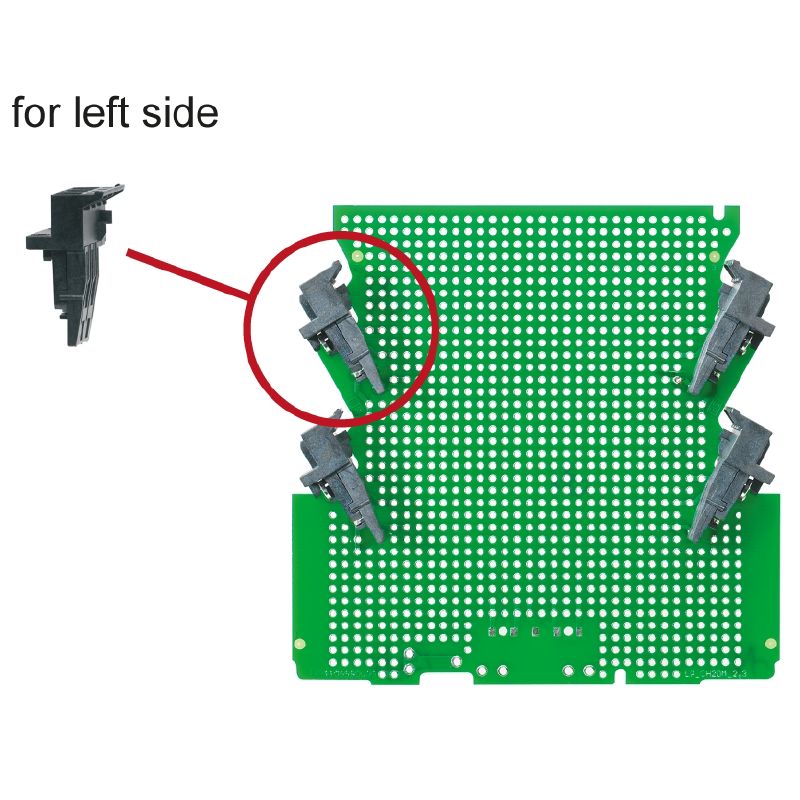

Elevate your connectivity solutions with this left male header PCB plug-in connector Engineered for efficient performance, it features a through-hole solder connection with a pitch of 500 mm, comprising 4 poles arranged at a 90° angle The solder pin extends to 59 mm and is finished with a durable tin coating Each connector is conveniently packaged in a box, ensuring safe transport and storage Adhering to strict safety and performance standards, this component boasts an IEC rating of 400 V and a UL rating of 300 V at 9 A, compatible with AWG sizes from 26 to 12, making it an ideal choice for various applications.

Features and Benefits:

•UL File Number: E60693.

•RoHS compliant without exemption.

•Can be coded.

•Insulating material: LCP.

•Protection degree: IP20.

•Volume resistance: ≤5 mΩ.

•UL 94 flammability rating: V-0.

Specifications:
