1069740000 - 5.00mm Right Male PCB Connector with 4 Poles (Pack of 130)

SKU: SKU: 1069740000 Download PDF

Variant:

1069740000 - 5.00mm Right Male PCB Connector with 4 Poles (Pack of 130)

Now $342.61

~~BEFORE $0.00~~ Now $342.61

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

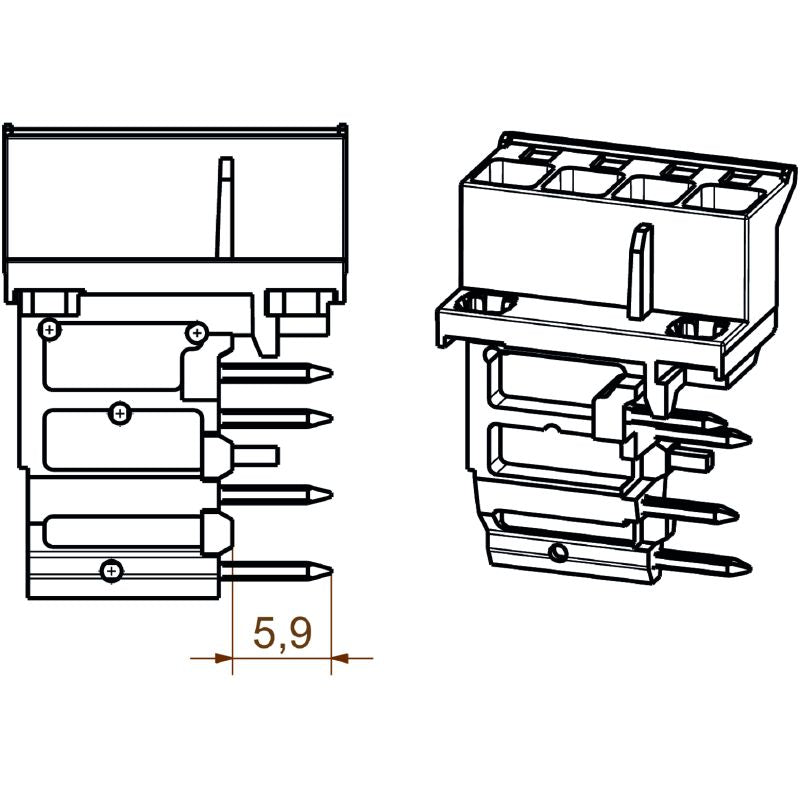

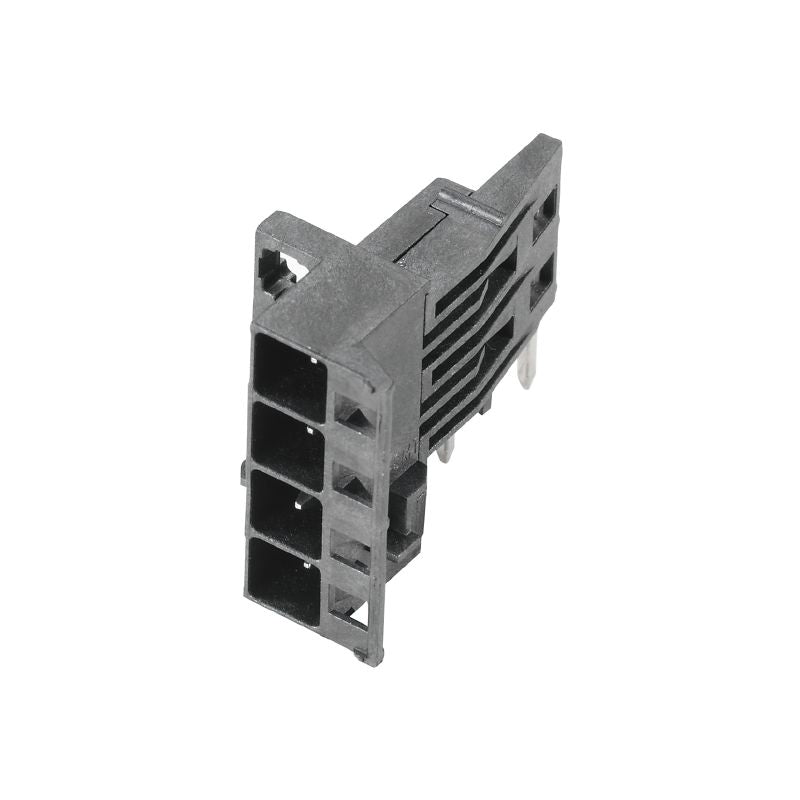

Introducing a reliable PCB plug-in connector with a right-angle male header design This component features a 500 mm pitch and includes 4 poles, making it ideal for various electronic applications With a 90° orientation, it facilitates easy connections, while the solder pins, measuring 59 mm in length, come with a tinned black coating for enhanced durability Perfect for through-hole technology (THT/THR) soldering, this connector ensures stable and secure electrical connections.

Features and Benefits:

•Compliant with RoHS standards.

•Can be coded.

•Insulating material is LCP.

•Protection degree is IP20.

•Lightweight design at only 4 g.

Specifications:

IEC Voltage Rating	400 V
UL Voltage Rating	300 V / 9 A / AWG 26 - AWG 12
Depth	27.8 mm
Height	14.4 mm
Width	20.6 mm
L1	15 mm
Number of Rows	1
Pitch	5 mm
Volume Resistance	≤5 mΩ
Insulating Material Group	IIIa
CTI	175 ≤ CTI <400
Operating Temperature Range	-40 °C to 120 °C
Storage Temperature Range	-40 °C to 70 °C
Flammability Rating	V-0
Rated Current (max. at 20°C)	10 A
Number of Poles	4
