1069650000 - 5mm PCB Male Connector with 90-Degree Solder Points (Pack of 260)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

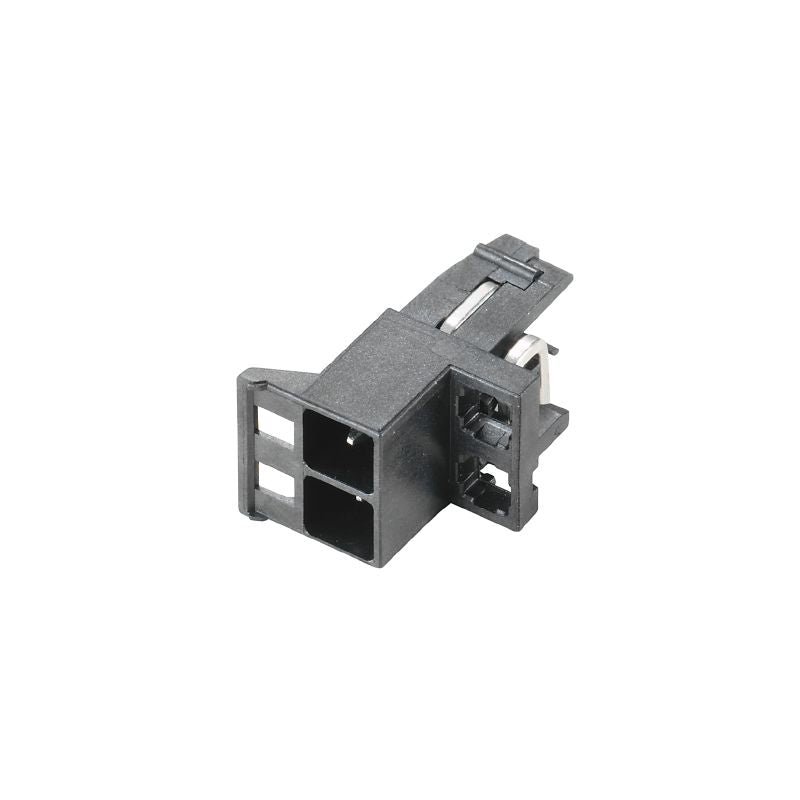

Introducing a versatile PCB plug-in connector, crafted for a male header connection positioned on the left side with an open design This component is engineered with a through-hole solder connection and offers a convenient 500 mm spacing between the poles It features two connection points arranged at a 90-degree angle and comes equipped with solder pins that are 15 mm long, all finished with a tin coating.

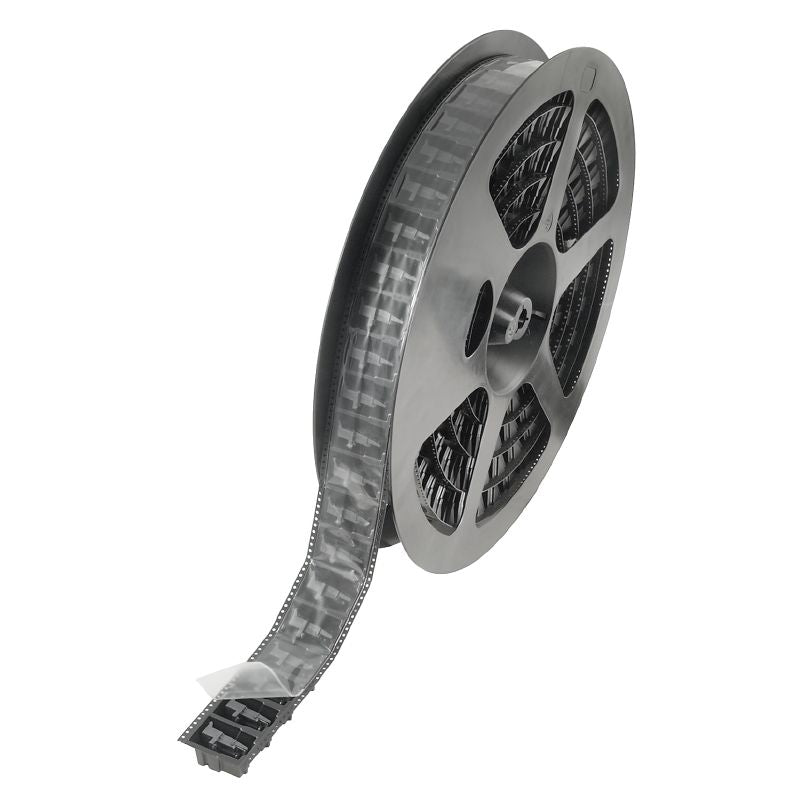

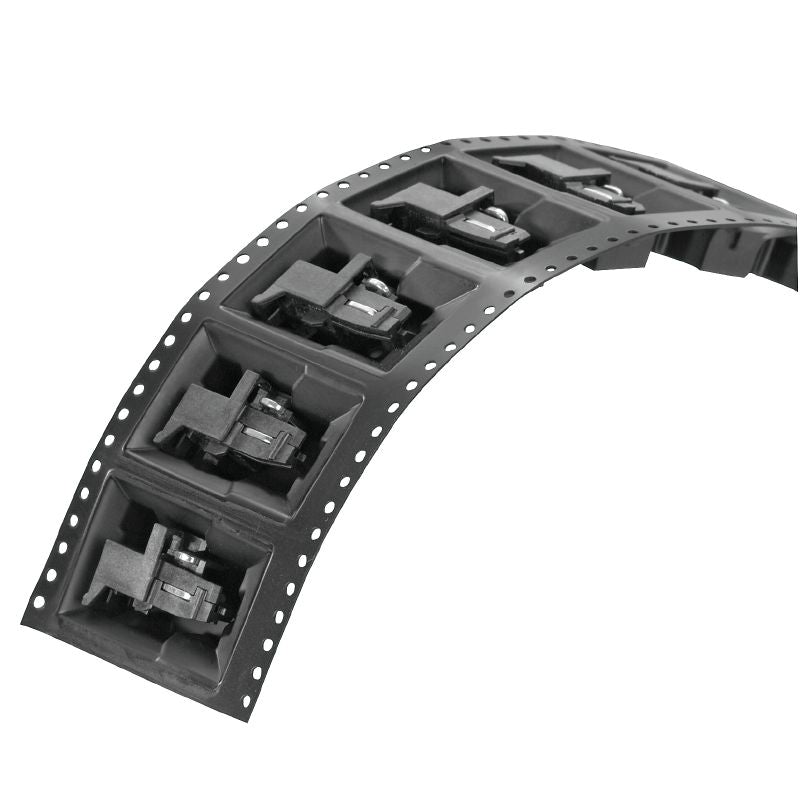

Weighing in at just 1885 g, this connector is neatly packaged in a tape format for easy handling and storage.

Features and Benefits:

•Compliant with RoHS standards.

•Can be coded for specific applications.

•Protection degree of IP20.

•Manufactured from LCP insulating material.

•UL 94 flammability rating of V-0.

•Volume resistance of ≤5 mΩ.

Specifications:
