1069630000 - 5mm Pitch PCB Connector with 4.2mm Solder Pins (Pack of 120)

SKU: SKU: 1069630000

Variant:

1069630000 - 5mm Pitch PCB Connector with 4.2mm Solder Pins (Pack of 120)

Now $198.05

~~BEFORE $0.00~~ Now $198.05

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

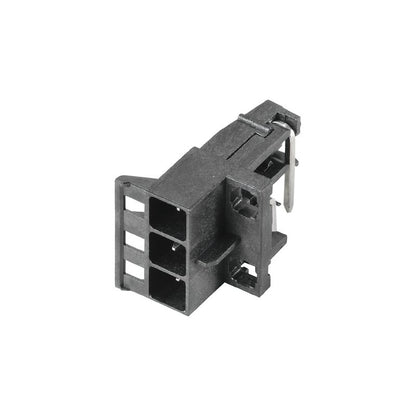

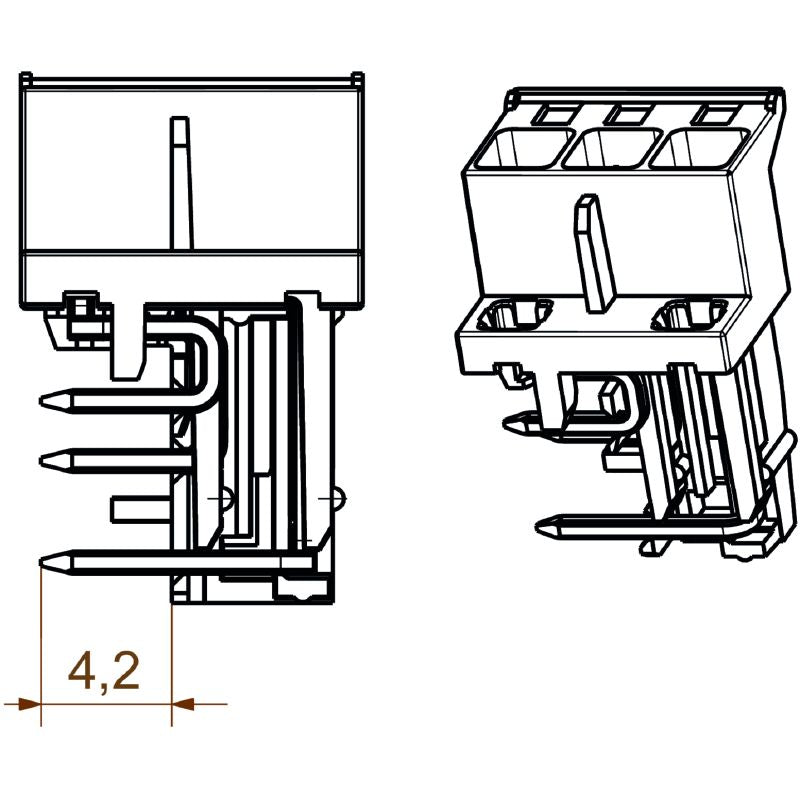

Enhance your electronic projects with the SHL-SMT 500/03GL 42BX plug-in connector This specialized PCB connector features an open male header design with a spacing of 500 mm and accommodates three poles You can choose from THT or THR soldering connections, and the 42 mm solder pins are tinned for optimal conductivity, all enclosed in a black box packaging This product meets ROHS regulations and boasts UL certification number E60693, ensuring compliance and reliability for your electronic needs.

Features and Benefits:

•Compliant with ROHS standards.

•UL certified.

•Can be coded.

•Insulating material made of LCP.

•IP20 protection degree.

Specifications:

Depth	23.3 mm
Height	14.4 mm
Width	15.4 mm
Net weight	2 g
Number of poles	3
Pitch	5 mm
Rated current, max. number of poles (Tu=20°C)	10 A
Rated voltage for surge voltage class / pollution degree II/2	400 V
Storage temperature, min.	-40 °C
Storage temperature, max.	70 °C
Operating temperature, min.	-40 °C
Operating temperature, max.	120 °C
UL 94 flammability rating	V-0
Volume resistance	≤5 mΩ
