1069570000 - 5.00mm 4-Pole Right Angle PCB Connector, Tinned Pins (Pack of 108)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

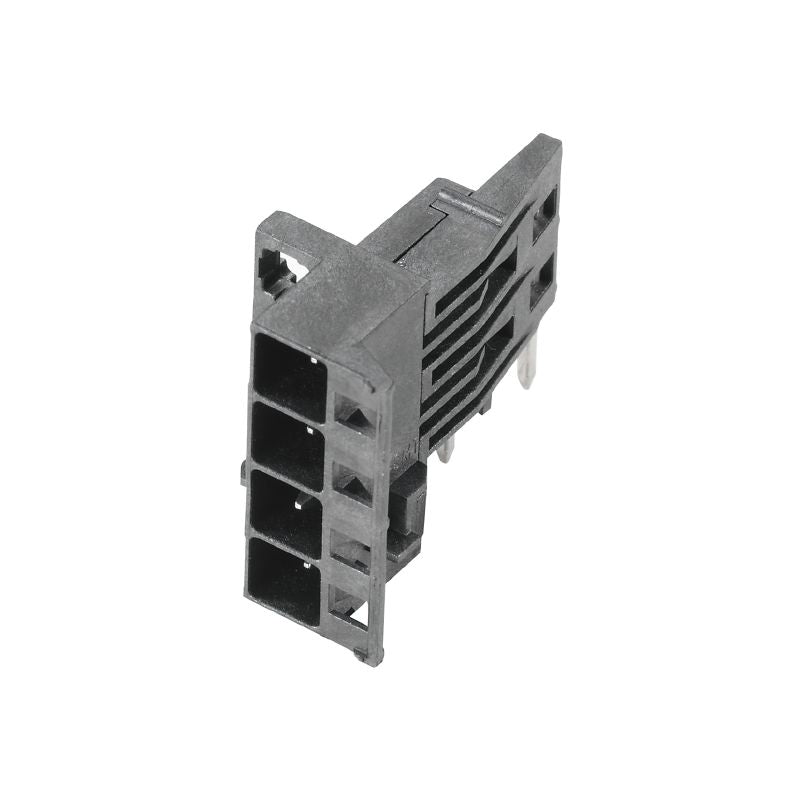

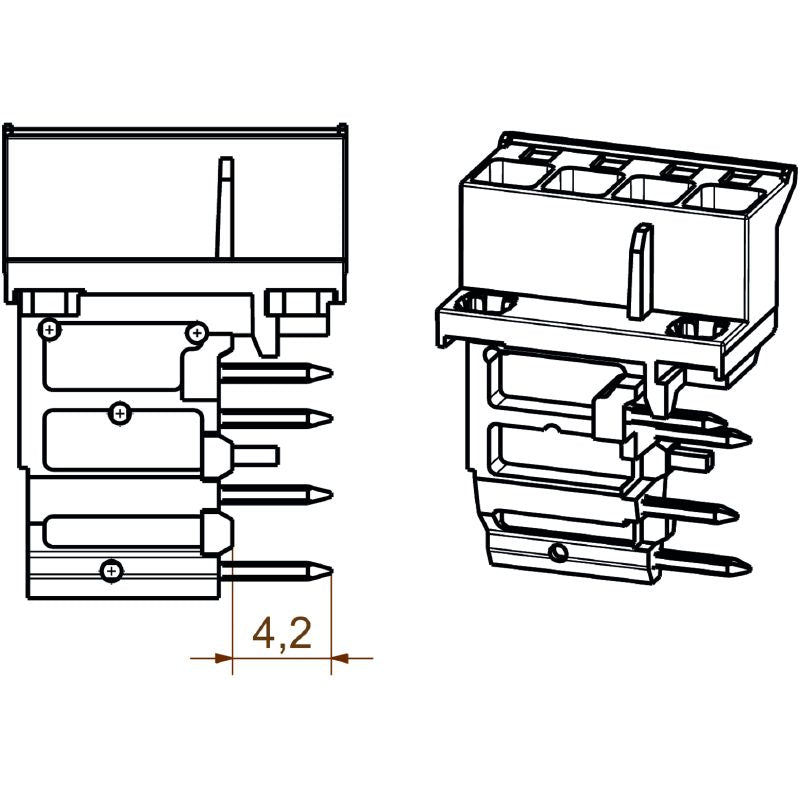

Introducing the SHL-SMT 500/04GR 42BX PCB plug-in connector, featuring a male header with an open side for convenient assembly This connector is crafted for THT/THR soldering, boasting a pitch of 500 mm and accommodating four poles at a 90-degree angle The tinned solder pins measure 42 mm long, ensuring reliable conductivity The product comes packaged in an eye-catching black box and meets stringent IE and UL standards, supporting IEC 400 V and UL 300 V / 9 A.

It is compatible with wire gauges ranging from AWG 26 to AWG 12, making it a versatile choice for various applications.

Features and Benefits:

•RoHS compliant without exemption.

•Can be coded for versatile applications.

•Volume resistance is ≤5 mΩ.

•Insulating material is LCP.

•Protection degree IP20.

•UL 94 flammability rating V-0.

•Developed and produced adhering to internationally recognized standards.

Specifications:
