1069560000 - 5.00mm PCB Connector, 3 Pole Right Header, Black Finish (Pack of 120)

1069560000 - 5.00mm PCB Connector, 3 Pole Right Header, Black Finish (Pack of 120)

SKU: 1069560000

Variant:
  • 1069560000 - 5.00mm PCB Connector, 3 Pole Right Header, Black Finish (Pack of 120)
Now $198.05
BEFORE   $0.00 Now $198.05
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

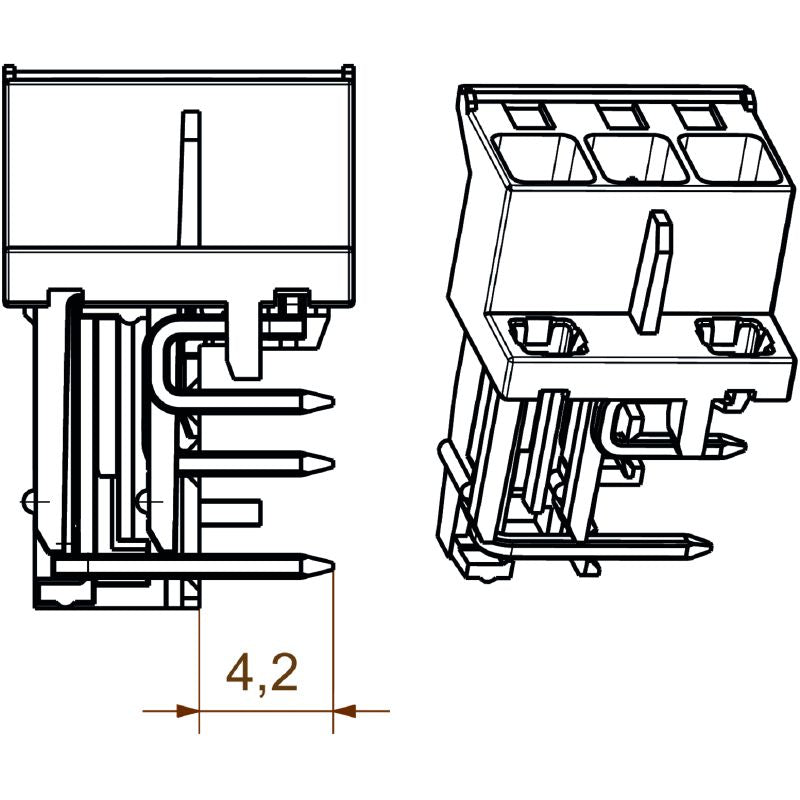

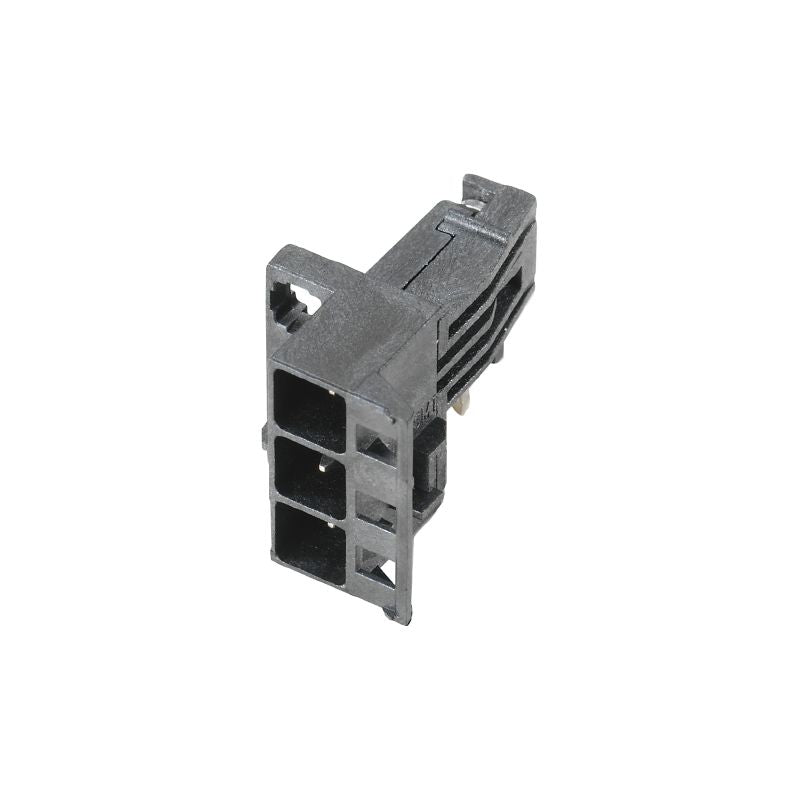

Discover the convenience of this innovative PCB plug-in connector, ideal for seamless board connections Featuring a right male header with an open side and a 500 mm pitch, this connector boasts three poles and solder pin lengths measuring 42 mm It is designed for THT/THR soldering methods and showcases an attractive black finish Each unit is packaged securely in a box and meets RoHS compliance standards, ensuring it aligns with environmental regulations.

Features and Benefits:

    •IP20 protection degree.

    •Can be coded for specific applications.

    •Constructed with insulating material LCP.

    •UL 94 flammability rating is V-0.

    •Suitable for a range of wire cross-sections from AWG 26 to AWG 12.

    •Tested according to IEC 60664-1 and IEC 61984 standards.

Specifications:

 Rated current, max. number of poles (Tu=20°C) 10 A
 Rated current, max. number of poles (Tu=40°C) 9 A
 Rated voltage for surge voltage class / pollution degree II/2 400 V
 Rated voltage for surge voltage class / pollution degree III/2 320 V
 Rated voltage for surge voltage class / pollution degree III/3 250 V
 Rated impulse voltage for surge voltage class/ pollution degree II/2 4 kV
 Rated impulse voltage for surge voltage class / pollution degree III/2 4 kV
 Rated impulse voltage for surge voltage class/ contamination degree III/3 4 kV
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
 Operating temperature, min. -40 °C
 Operating temperature, max. 120 °C
 Temperature range, installation, min. -30 °C
 Temperature range, installation, max. 120 °C
 Pitch in mm (P) 5 mm
 Number of poles 3
 Number of rows 1
 L1 in mm 10 mm
