1069550000 - Black 5mm Pitch Male Header PCB Connector, 2 Poles (Pack of 150)

SKU: SKU: 1069550000 Download PDF

Variant:

1069550000 - Black 5mm Pitch Male Header PCB Connector, 2 Poles (Pack of 150)

Now $162.22

~~BEFORE $0.00~~ Now $162.22

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

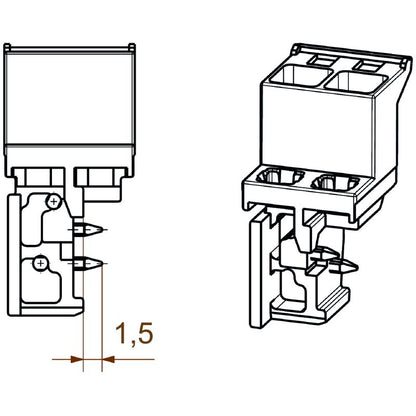

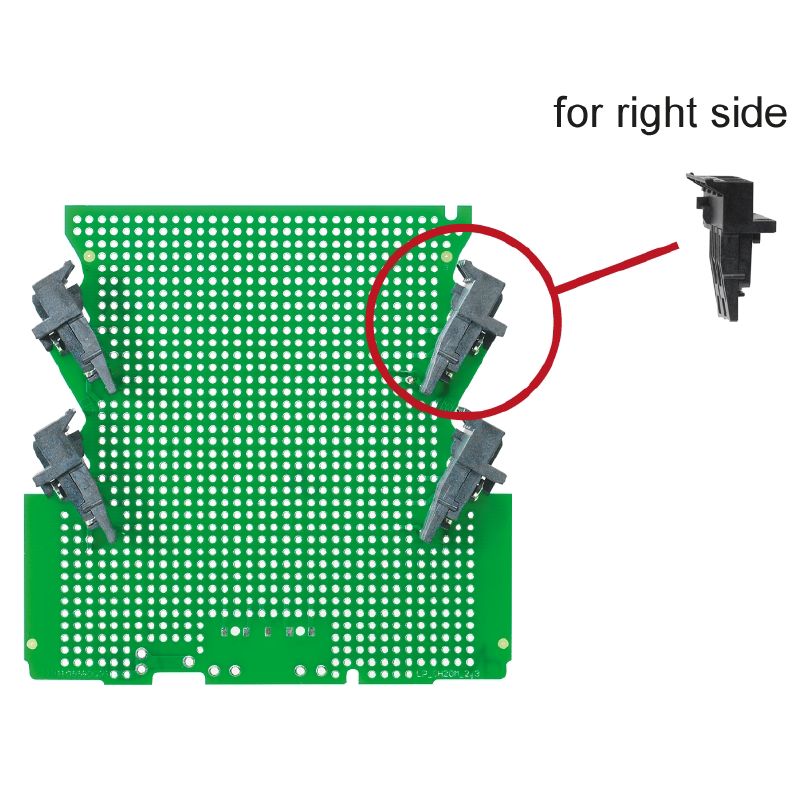

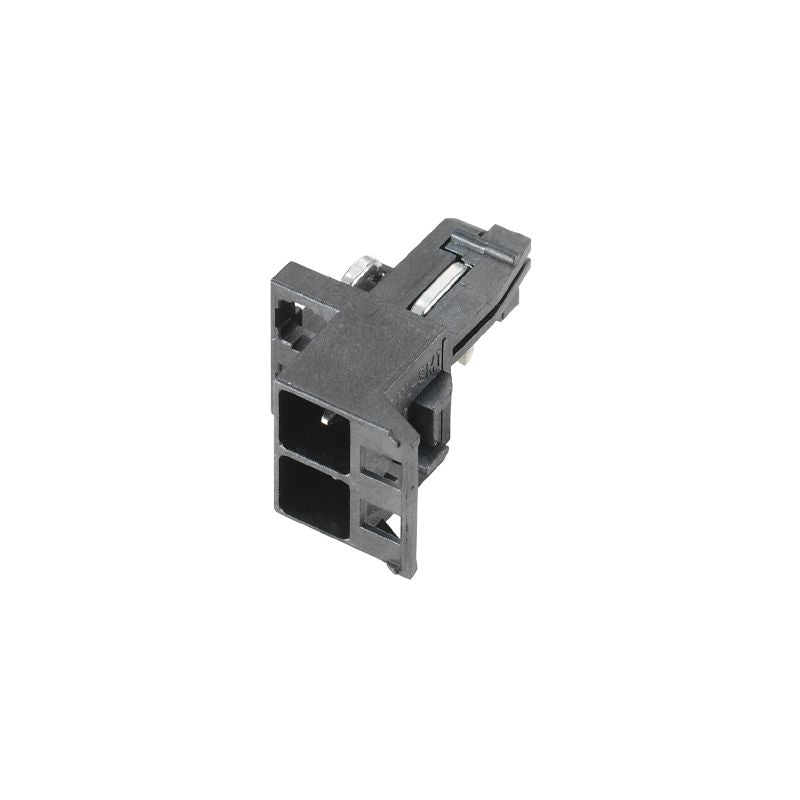

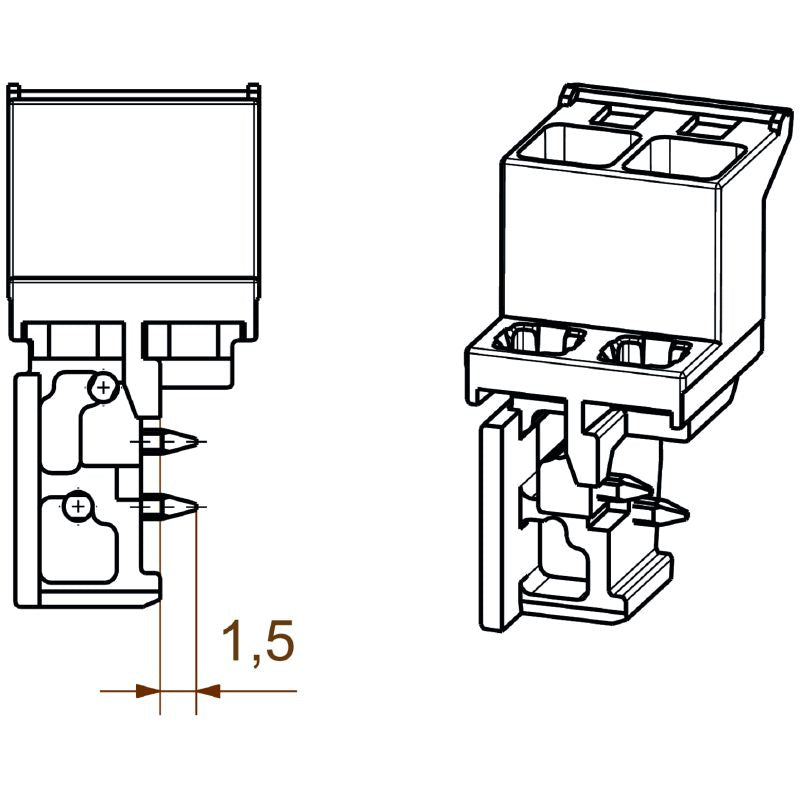

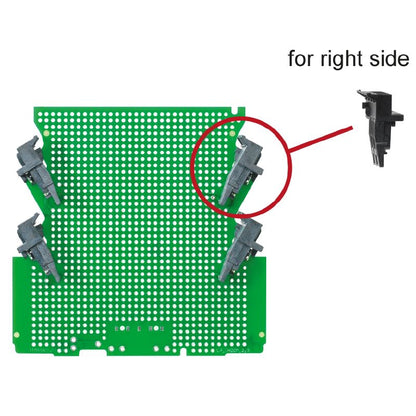

Introducing the SHL-SMT 500/02GR 42BX, an efficient right male header PCB plug-in connector designed with versatility in mind This connector boasts a 500 mm pitch and accommodates two poles, making it a reliable choice for various electronic applications The solder pin length measures 15 mm, and the sleek black color adds a touch of modernity Packaged thoughtfully in a box, this component meets UL and IEC standards, ensuring high-quality electrical performance.

Perfect for your next project, this connector seamlessly blends functionality with compliance.

Features and Benefits:

•RoHS Compliant without exemption.

•IP20 protection degree.

•Can be coded.

•Produced with insulating material LCP.

•Low volume resistance of ≤5 mΩ.

•UL 94 flammability rating of V-0.

•Moisture Level (MSL) of 1.

Specifications:

Depth	21.2 mm
Height	14.4 mm
Width	10.6 mm
Rated voltage	{'IEC': '400 V', 'UL': '300 V'}
Rated current	{'9 A': 'for 40°C', '10 A': 'for 20°C'}
Wire cross-section	{'min': 'AWG 26', 'max': 'AWG 12'}
Operating temperature	{'min': '-40 °C', 'max': '120 °C'}
Storage temperature	{'min': '-40 °C', 'max': '70 °C'}
Protection degree	IP20
Number of poles	2
Pitch	5 mm
