1069370000 - 5mm Female 90° Plug Connector, 3 Poles, RoHS Compliant (Pack of 108)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

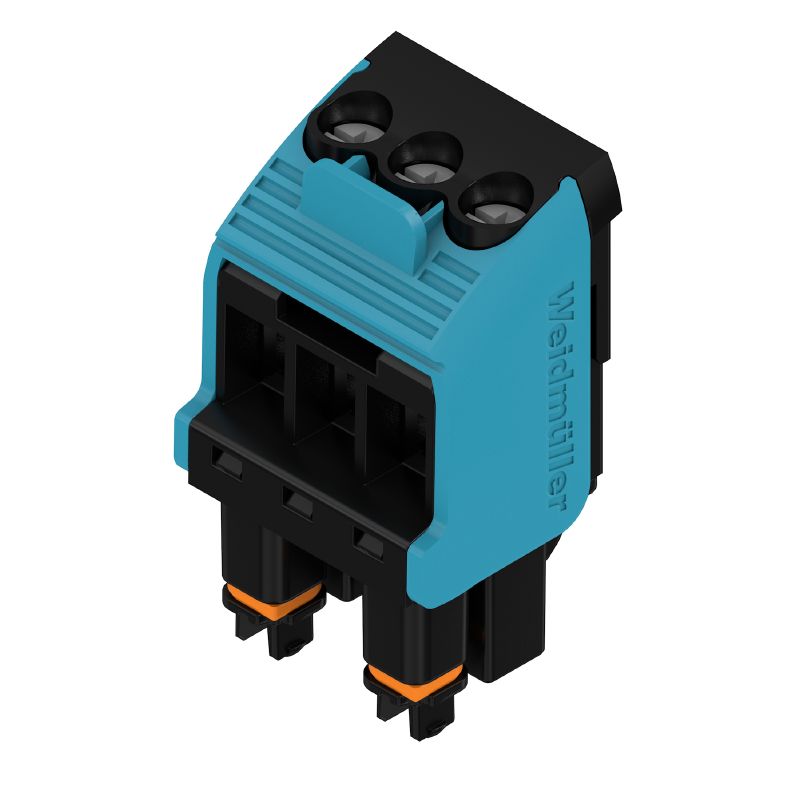

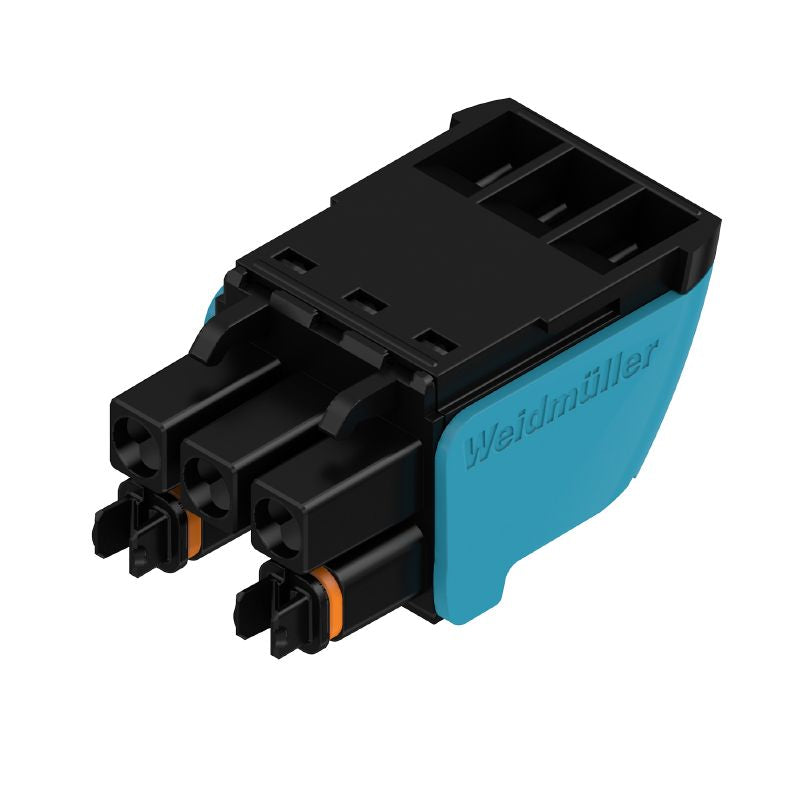

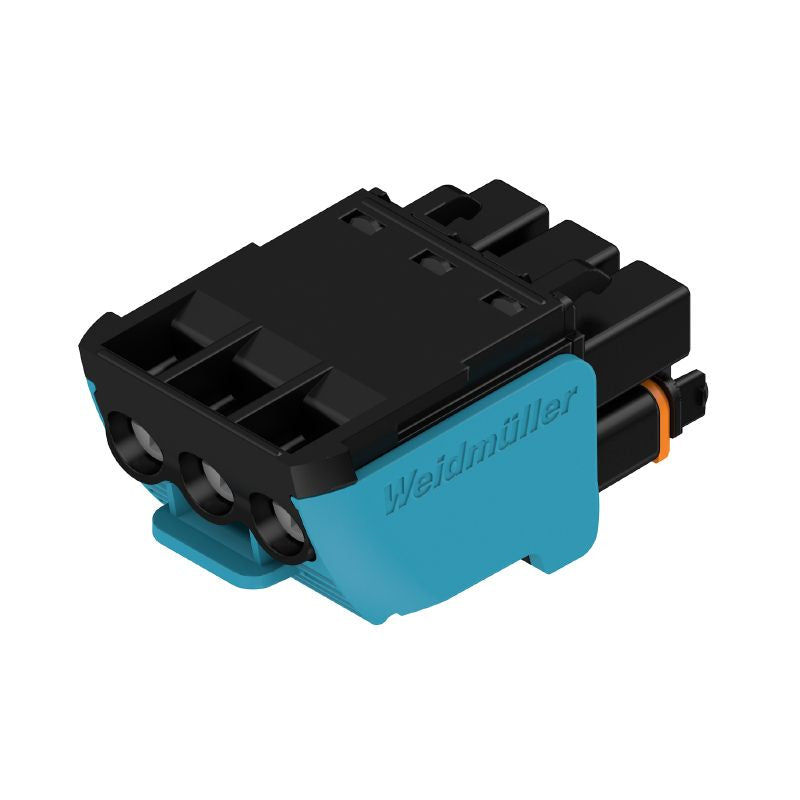

Introducing a versatile female plug-in connector with a pitch of 500 mm, featuring three poles for efficient connectivity Its innovative design supports a 90-degree field connection through a clamping yoke method, making it an ideal choice for various applications The component, part number BHZ 500/03/90LH BK/BL, comes neatly packaged in a box and adheres to RoHS regulations With an IEC specification of 400 V / 10 A and a UL rating of 300 V / 10 A, this connector combines reliability with top-tier performance for your electrical needs.

Features and Benefits:

•Field connection through clamping yoke.

•Compliant with RoHS and does not require exemptions.

•Touch-safe protection according to standards DIN VDE.

•Can be coded for connection flexibility.

Specifications:
