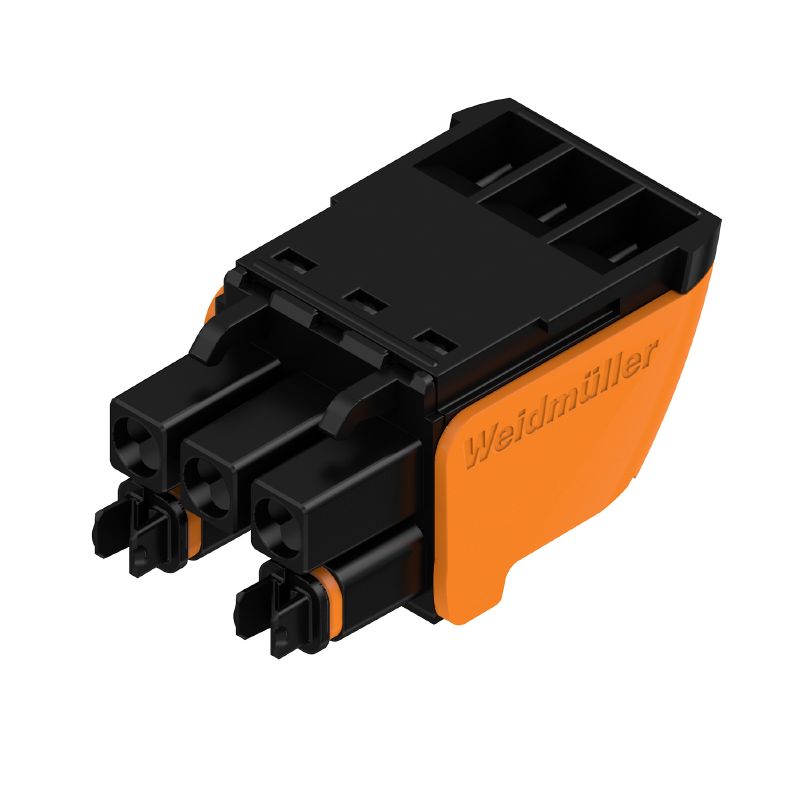

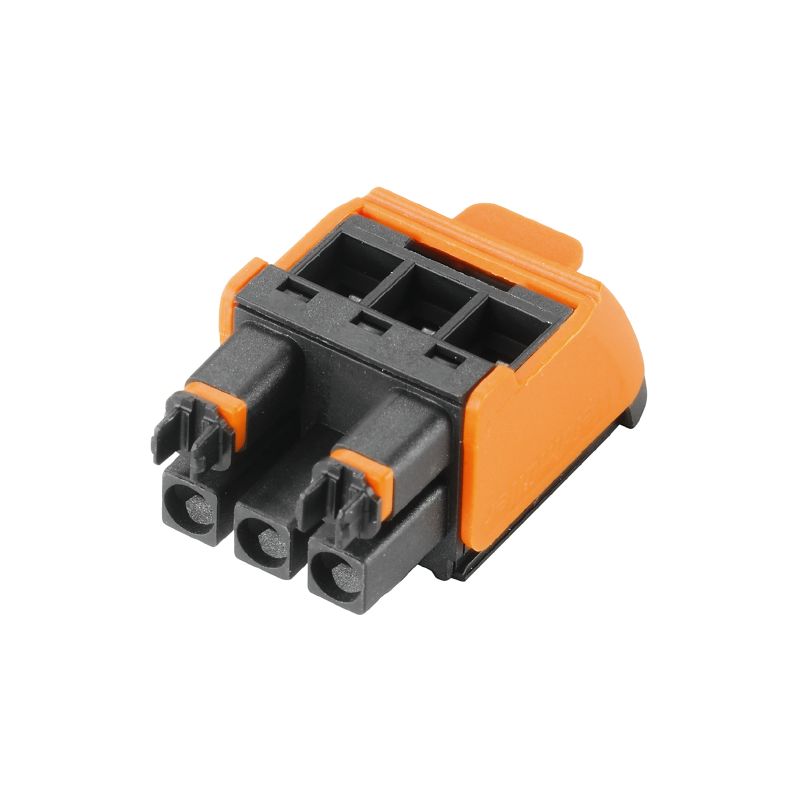

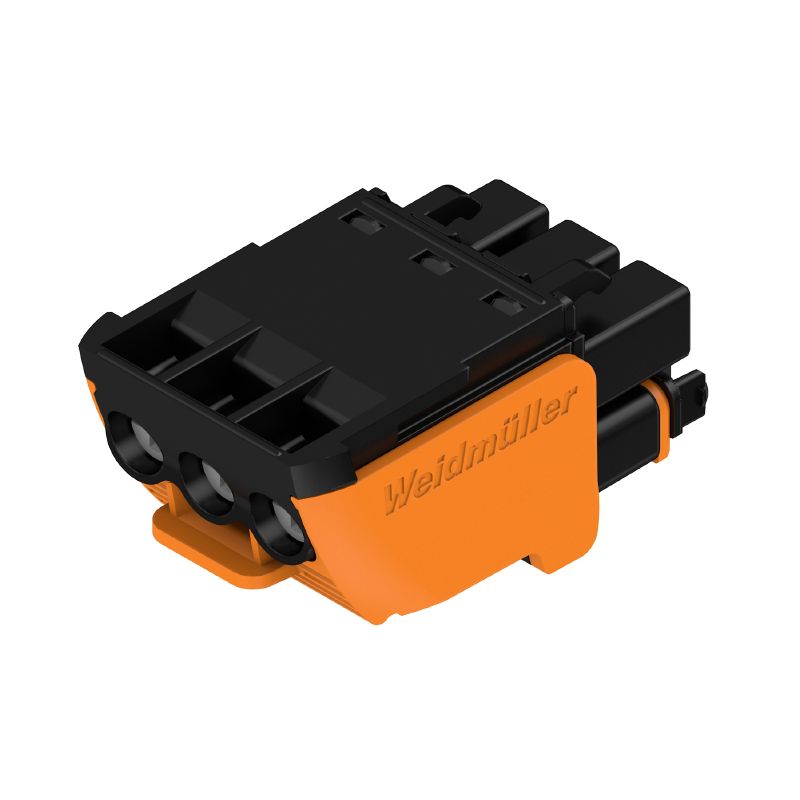

1063270000 - 5mm PCB Plug-In Connector with 3 Poles, Black/Orange (Pack of 108)

SKU: SKU: 1063270000 Download PDF

Select a Variant:

1063270000 - 5mm PCB Plug-In Connector with 3 Poles, Black/Orange (Pack of 108)

SET THE QTY:

Now $348.95 Web pricing policy

~~BEFORE $0.00~~ Now $348.95 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a premium PCB plug-in female connector featuring a 500 mm pitch designed for efficient clamping yoke connection This connector includes 3 poles and operates at a practical 90-degree angle It comes with a distinctive black and orange color scheme identified by the part number BHZ 500/03/90LH SN BK/OR BX Rest assured, it meets all necessary safety standards and adheres to specified voltage ratings for reliable performance.

Features and Benefits:

•Complies with RoHS without exemptions.

•Touch-safe protection according to relevant DIN standards.

•Can be coded.

•Compact design with a single row and 3 poles.

Specifications:

Rated voltage (IEC)	400 V / 10 A / 0.2 - 2.5 mm²
Rated voltage (UL)	300 V / 10 A / AWG 26 - AWG 12
Protection degree	IP20
Operating temperature, min	-40 °C
Operating temperature, max	120 °C
Storage temperature, min	-40 °C
Storage temperature, max	70 °C
Conductor outlet direction	90°
Number of poles	3
Stripping length	8 mm
Clamping range, min	0.13 mm²
Clamping range, max	3.31 mm²
Insulating material	PA 66 GF 30
Plugging cycles	25
Net weight	6.843 g
Depth	30.6 mm
Height	14.5 mm
Width	17.1 mm
