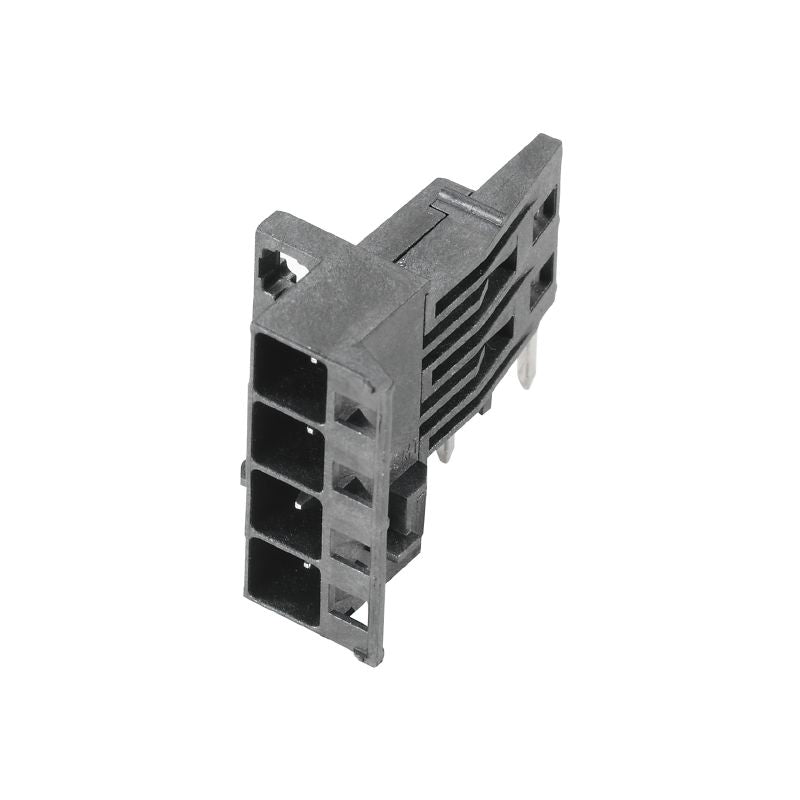

1063150000 - 5mm 4-Pole PCB Connector with Solder Pins, Black (Pack of 108)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SHL-SMT 500/04GR 15BX, a reliable PCB plug-in connector perfect for interfacing with right, male headers This connector boasts THT/THR solder connections and a pitch measurement of 500 mm, accommodating 4 poles With solder pin lengths of 15 mm and a sleek black appearance, it comes conveniently packaged in a box Compliant with multiple approval standards, including RoHS, this connector also carries the UL file number E60693, ensuring quality and safety for your electronic projects.

Features and Benefits:

•Compliant with RoHS without exemption.

•Conforms to IPC-A-610 Class 2 standards.

•Can be coded.

•Rated for storage temperatures between -40 °C and 70 °C.

•Low volume resistance of ≤5 mΩ.

•Suitable for board connection in electronic devices.
