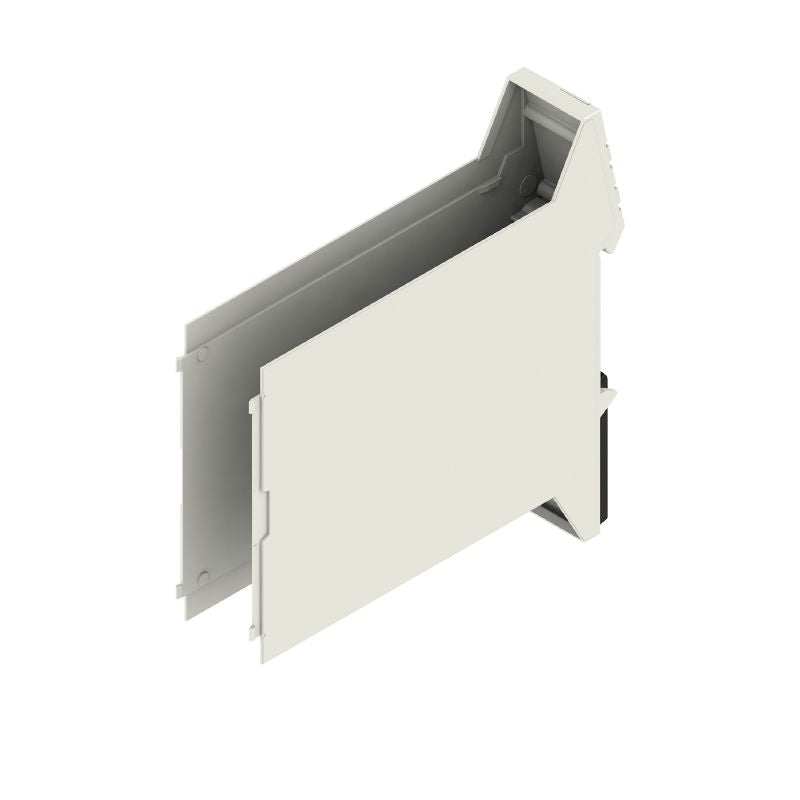

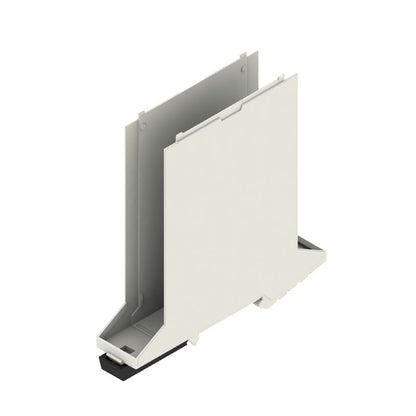

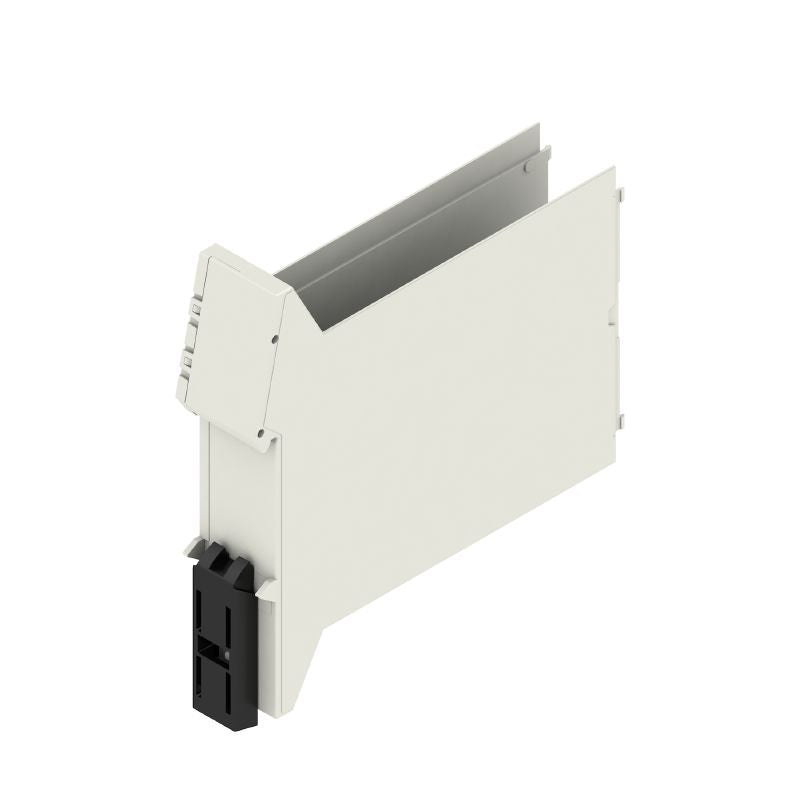

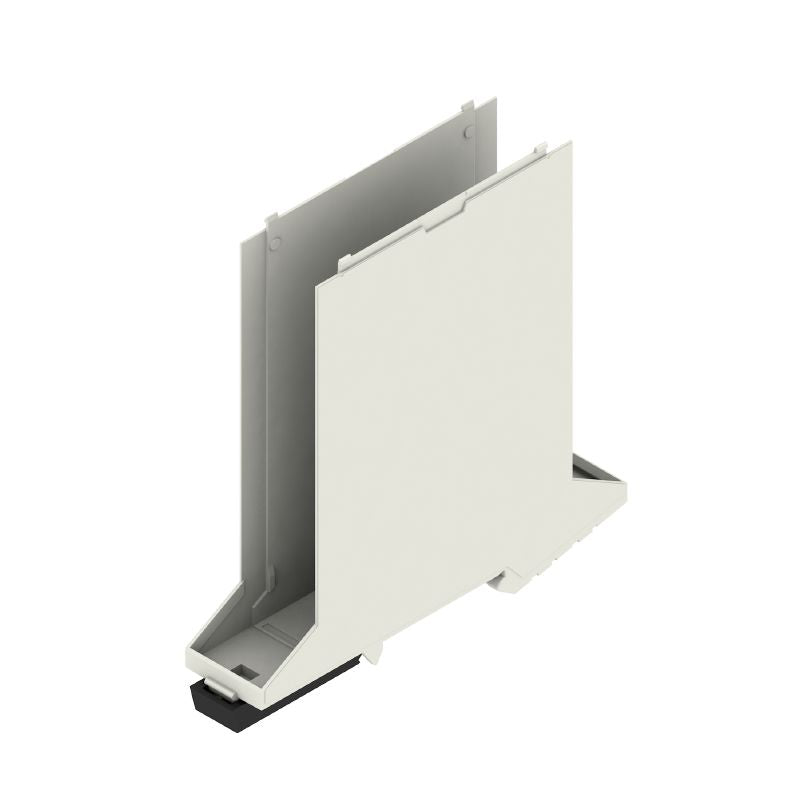

1164670000 - Modular Housing 22.5mm Light Grey 108mm Depth, 109.3mm Height (Pack of 10)

1164670000 - Modular Housing 22.5mm Light Grey 108mm Depth, 109.3mm Height (Pack of 10)

SKU: 1164670000   Download PDF

Select a Variant:
  • 1164670000 - Modular Housing 22.5mm Light Grey 108mm Depth, 109.3mm Height (Pack of 10)
Qty:
Now $51.02   Web pricing policy
BEFORE   $0.00 Now $51.02 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the CH20M22 B LGY/BK modular housing, a versatile solution for your project needs This housing features a light grey base and measures 225 mm in width, 108 mm in depth, and 1093 mm in height Crafted to meet ROHS standards, it adheres to stringent safety and performance criteria, making it suitable for a wide range of applications.

Features and Benefits:

    •Compliant with ROHS without exemption.

    •Maximum number of connection levels is 3.

    •IP20 protection in installed state.

    •Operating temperature ranges from -40 to 120 °C.

    •Includes mounting rail TS 35.

    •The maximum number of poles allowed is 24.

    •Double-sided PCB assembly type.

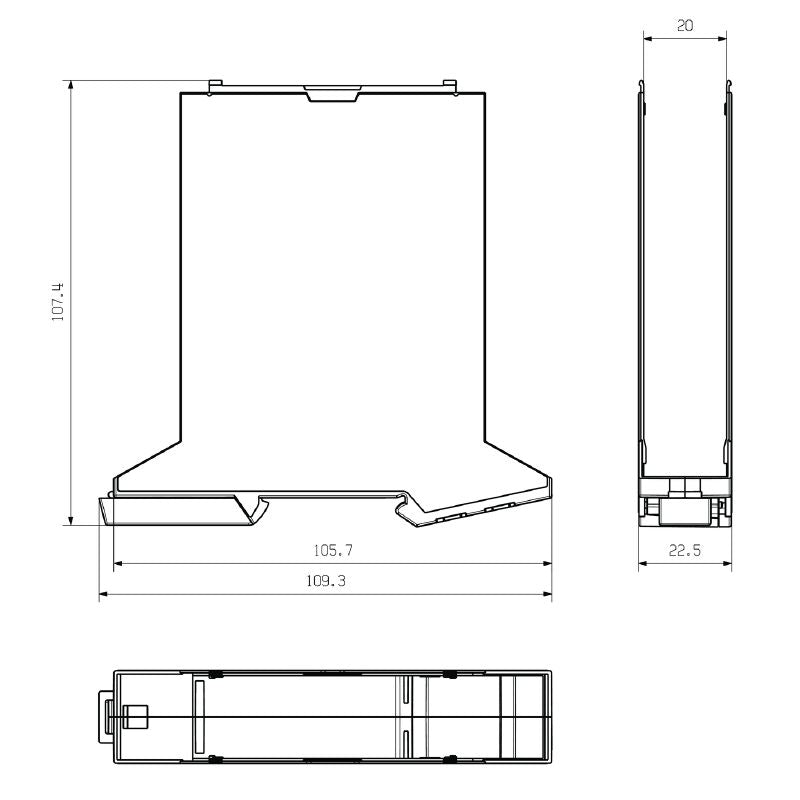

Specifications:

 Depth 108 mm
 Height 109.3 mm
 Width 22.5 mm
 Net weight 33.6 g
 Ambient temperature -25 °C…85 °C
 Humidity 5 - 93% rel. humidity, Tu = 40°C, no condensation
 Basic material Plastic
 Insulating material PA 66 GF 30
 UL 94 flammability rating V-0
 Comparative Tracking Index (CTI) 600 ≤ CTI
 Number of slots for female connectors 6
 Thermal test power dissipation max. 4.5 W at 20 °C
