1155890000 - 5-Pole PCB Plug-In Connector with Gold-Plated Solder Flange (Pack of 78)

1155890000 - 5-Pole PCB Plug-In Connector with Gold-Plated Solder Flange (Pack of 78)

SKU: 1155890000   Download PDF

Select a Variant:
  • 1155890000 - 5-Pole PCB Plug-In Connector with Gold-Plated Solder Flange (Pack of 78)
Qty:
Now $716.37   Web pricing policy
BEFORE   $0.00 Now $716.37 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a reliable PCB plug-in connector, tailored specifically as a bus-contact block for the CH20M12-67 model This connector features a solder flange designed for THT/THR soldering, allowing for secure connections Supporting five poles arranged in a 180° configuration, it also boasts gold-plated solder pins, each measuring 15 mm in length, all finished in an elegant black This component is essential for a variety of electronic applications, ensuring both functionality and a sleek appearance.

Features and Benefits:

    •Gold-plated contact surface.

    •RoHS compliant without exemption.

    •IP20 protection degree in installed state.

    •Designed in accordance with internationally recognized standards.

Specifications:

 UL File Number E60693
 Rated Voltage 300 V

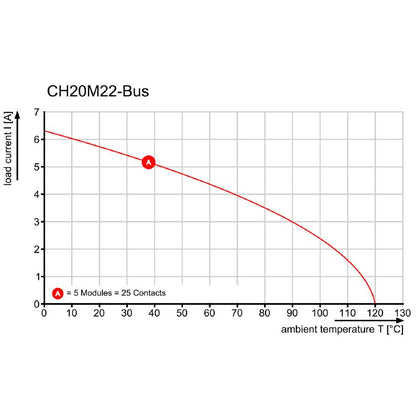

 Rated Current 5 A

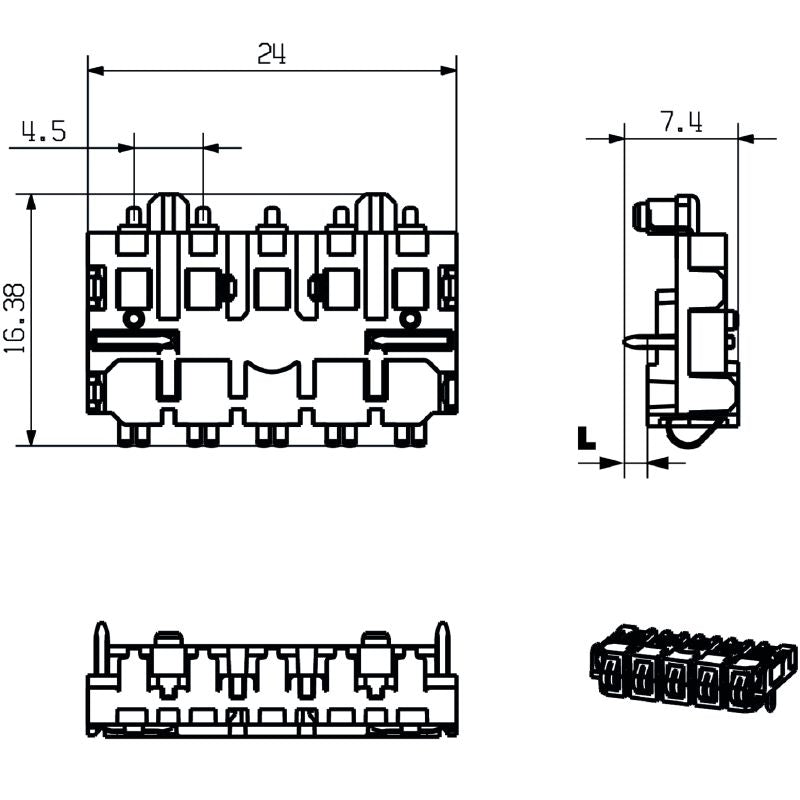

 Dimensions (Depth x Height x Width) 16.3 mm x 24 mm x 7.4 mm
 Insulating Material LCP
 Comparative Tracking Index (CTI) 175 ≤ CTI <400
 Insulation Resistance ≥ 10^8 Ω
 Operating Temperature Min -50 °C
 Operating Temperature Max 100 °C
 Moisture Level 1
 Storage Temperature Min -40 °C
 Storage Temperature Max 70 °C
