1155880000 - PCB Plug-In Connector 5-Pole 3.2mm Gold-Plated THT/THR (Pack of 300)

1155880000 - PCB Plug-In Connector 5-Pole 3.2mm Gold-Plated THT/THR (Pack of 300)

SKU: 1155880000   Download PDF

Select a Variant:
  • 1155880000 - PCB Plug-In Connector 5-Pole 3.2mm Gold-Plated THT/THR (Pack of 300)
Qty:
Now $3,109.58   Web pricing policy
BEFORE   $0.00 Now $3,109.58 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

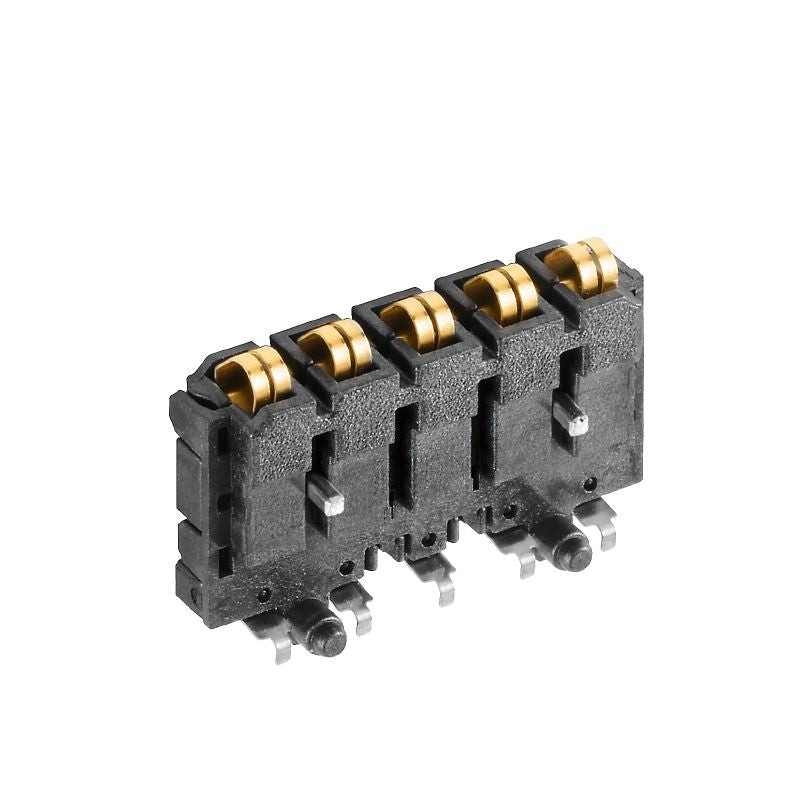

Introducing the SR-SMD 450/05/90LFM 32AU BK RL, a highly functional PCB plug-in connector designed for seamless integration with the CH20M12-67 Featuring a practical bus-contact block, this connector boasts a middle solder flange and accommodates THT/THR solder connections The configuration includes 5 poles arranged at a precise 180° angle, with gold-plated solder pins measuring 32 mm in length, finished in a sleek black coating.

This product also meets essential standards, including RoHS and UL, ensuring reliability and compliance for your electronic needs.

Features and Benefits:

    •Compliant with RoHS standards.

    •Gold-plated contact surfaces.

    •Designed for PCB applications.

Specifications:

 Depth 16.3 mm
 Height 24 mm
 Width 9.1 mm
 Insulating material LCP
 Color black
 Rated voltage (IEC) 160 V
 Rated voltage (UL) 300 V / 5 A
 Operating temperature, min -50 °C
 Operating temperature, max 100 °C
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
 Protection degree IP20 in installed state
 Insulation resistance ≥ 10^8 Ω
 Moisture Level (MSL) 1
 Clearance, min 2.3 mm
 Creepage distance, min 3.2 mm
