1155870000 - 5-Pole PCB Connector with 3.2mm Pins, Gold-Plated Finish (Pack of 78)

1155870000 - 5-Pole PCB Connector with 3.2mm Pins, Gold-Plated Finish (Pack of 78)

SKU: 1155870000   Download PDF

Select a Variant:
  • 1155870000 - 5-Pole PCB Connector with 3.2mm Pins, Gold-Plated Finish (Pack of 78)
Qty:
Now $691.66   Web pricing policy
BEFORE   $0.00 Now $691.66 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

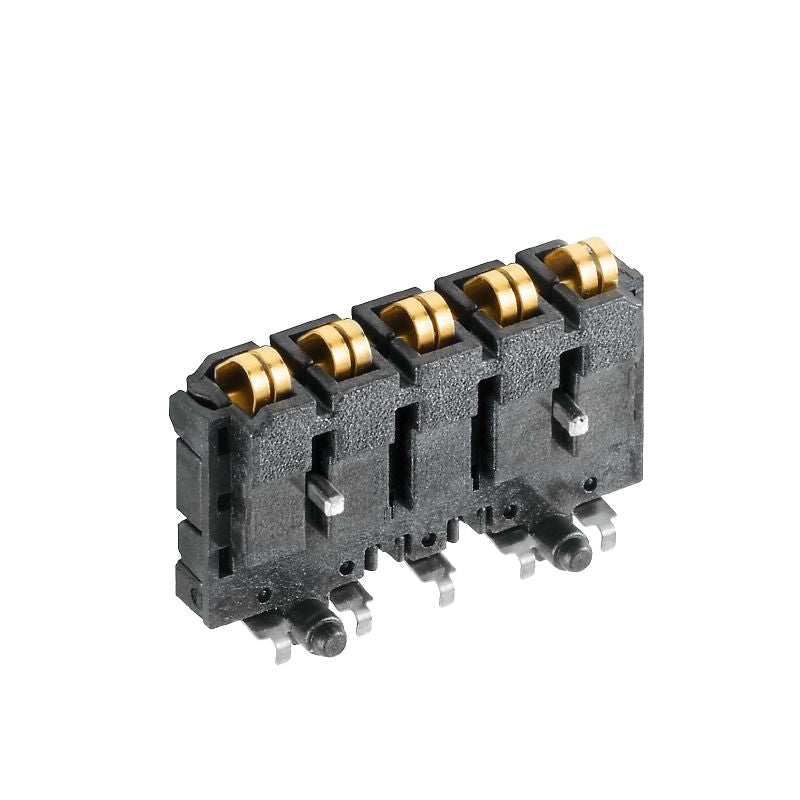

Optimize your connections with this specialized PCB plug-in connector, a bus-contact block tailored for the CH20M12-67 model It features a middle solder flange and accommodates both THT and THR soldering methods This connector has 5 poles arranged in a 180-degree layout, with solder pins measuring 32 mm in length The contacts are gold-plated and finished in a sophisticated black, ensuring reliable performance and a polished look.

Features and Benefits:

    •RoHS compliant.

    •UL certified with Certificate No. E60693.

    •Protection degree IP20 in installed state.

    •Developed and manufactured according to internationally recognized standards.

Specifications:

 Rated voltage 300 V

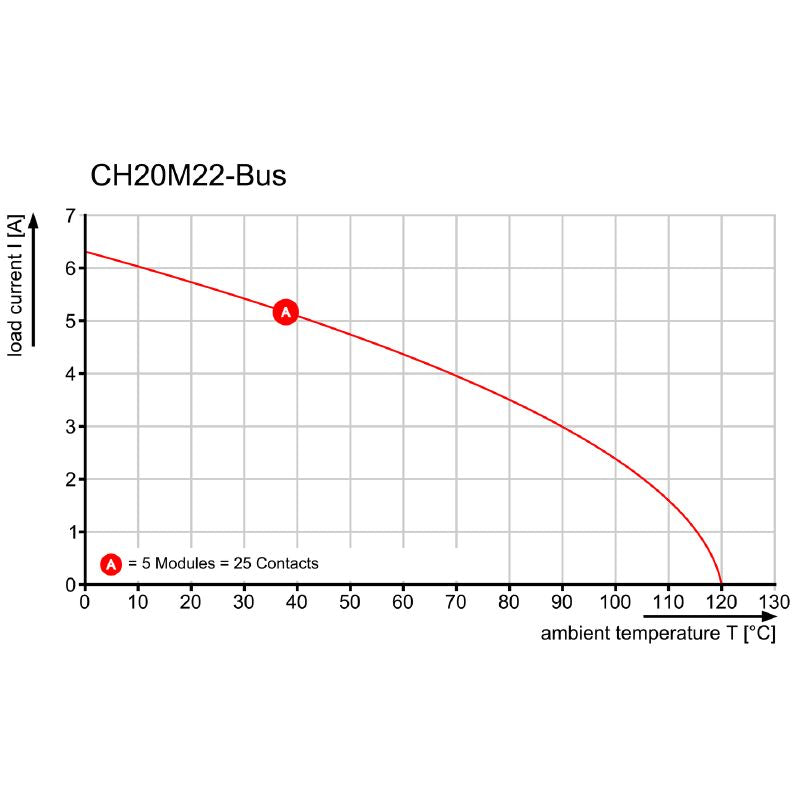

 Rated current 5 A

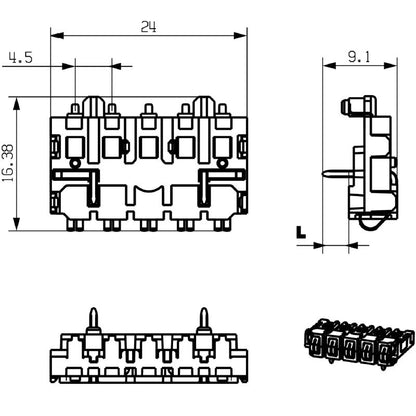

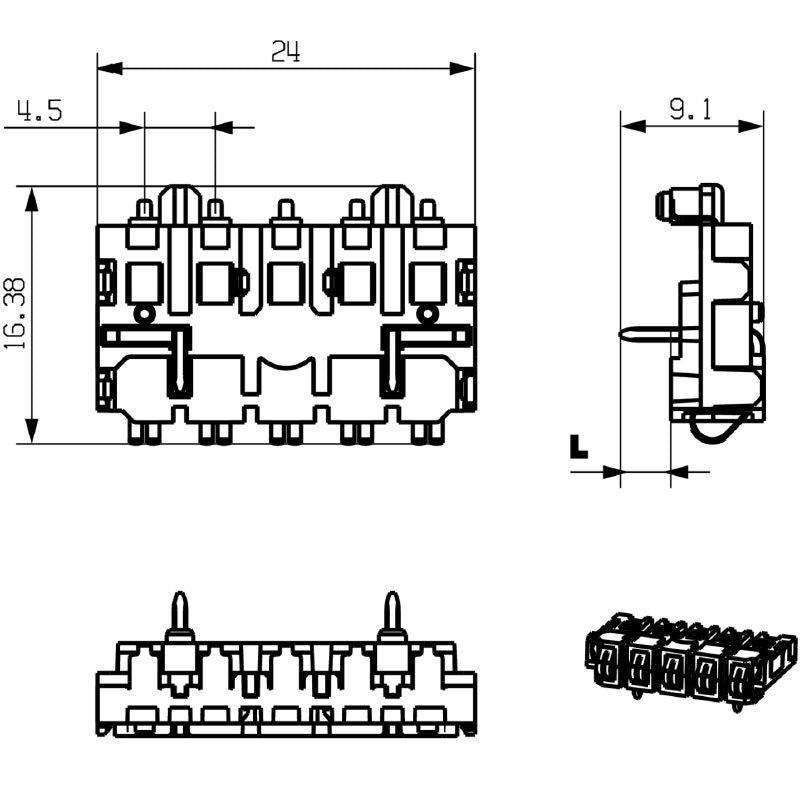

 Depth 16.3 mm
 Height 24 mm
 Width 9.1 mm
 Material Plastic
 Insulating material LCP
 Operating temperature, min. -50 °C
 Operating temperature, max. 100 °C
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
 Insulation resistance ≥ 10^8 Ω
 Comparative Tracking Index (CTI) 175 ≤ CTI <400
 Moisture Level (MSL) 1
 Solder pin length 3.2 mm
