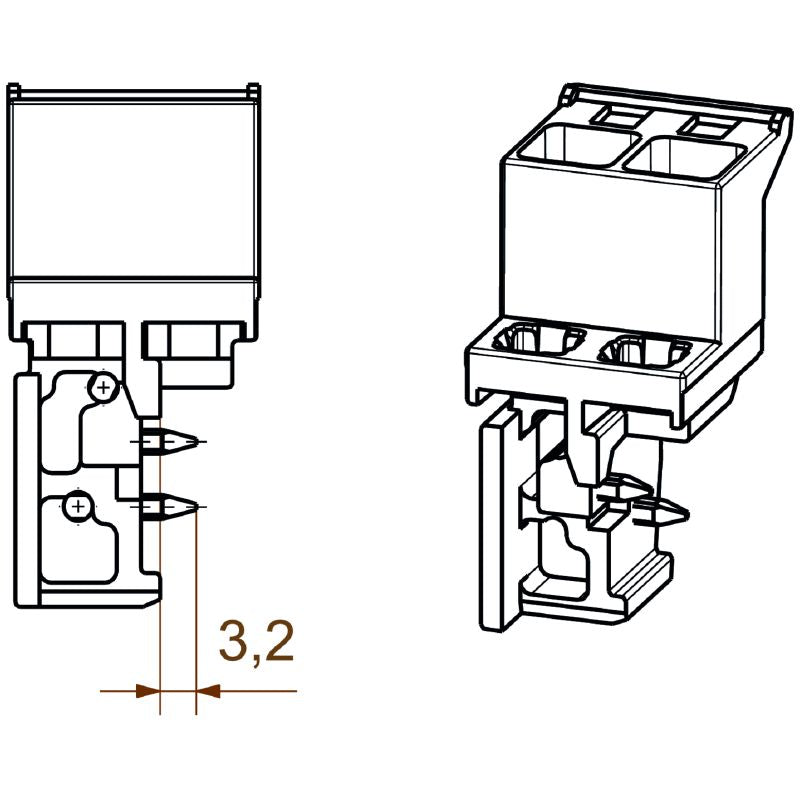

1069720000 - 5mm Pitch PCB Connector with 3.2mm Solder Pin Length (Pack of 260)

1069720000 - 5mm Pitch PCB Connector with 3.2mm Solder Pin Length (Pack of 260)

SKU: 1069720000 Download PDF

Variant:
  • 1069720000 - 5mm Pitch PCB Connector with 3.2mm Solder Pin Length (Pack of 260)
Now $405.00
BEFORE   $0.00 Now $405.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

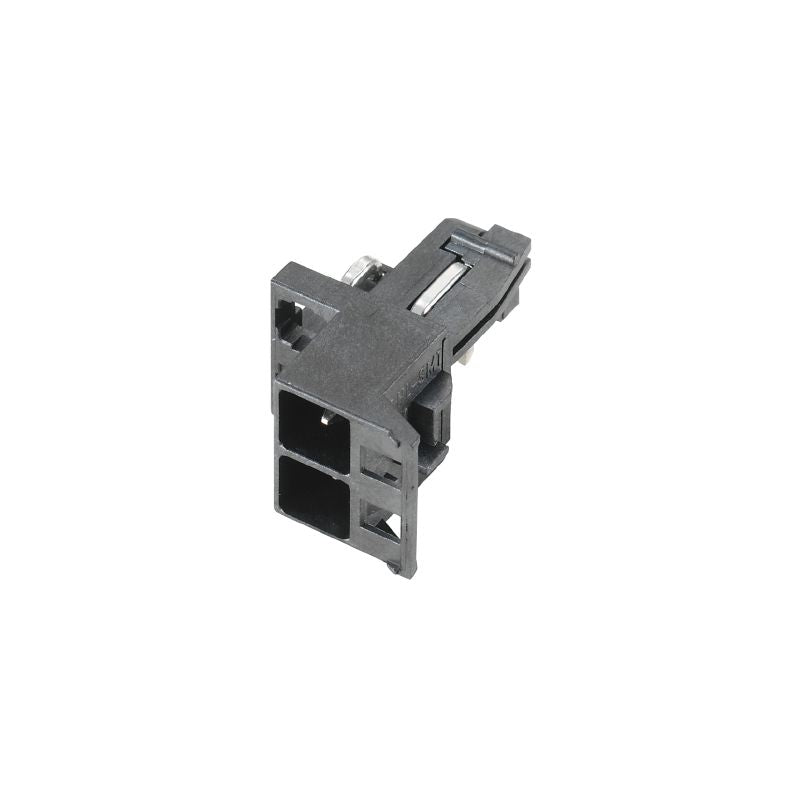

Introducing a reliable PCB plug-in connector designed for seamless connections This component features a male header in a right-angle configuration, equipped with an open side to facilitate THT/THR soldering With a pitch of 500 mm and 2 poles, it's optimized for vertical assembly, supporting solder pin lengths of 32 mm Crafted from LCP insulating material, this connector is presented in a classic black color and adheres to RoHS compliance standards.

It's versatile enough to work with various operating voltages and currents, as detailed in the technical specifications.

Features and Benefits:

    •Black color.

    •IP20 protection degree.

    •Can be coded.

    •Compliant with RoHS requirements.

    •Compatible with various wire sizes (AWG 26 - AWG 12).

Specifications:

 IEC Voltage Rating 400 V
 UL Voltage Rating 300 V / 9 A / AWG 26 - AWG 12
 Depth 21.2 mm
 Height 14.4 mm
 Width 10.6 mm
 Number of Poles 2
 Temperature Range (Operating) -40 to 120 °C
 Operating Temperature (min) -40 °C
 Operating Temperature (max) 120 °C
 Storage Temperature (min) -40 °C
 Storage Temperature (max) 70 °C
 Rated Current 10 A (max.)
 Rated Voltage for Pollution Degree II/2 400 V
 Rated Impulse Voltage for Class II/2 4 kV
 Insulating Material LCP
 UL 94 Flammability Rating V-0
