1069690000 - 5.00mm Right Male PCB Connector with 5.9mm Solder Pins (Pack of 120)

SKU: SKU: 1069690000

Select a Variant:

1069690000 - 5.00mm Right Male PCB Connector with 5.9mm Solder Pins (Pack of 120)

SET THE QTY:

Now $198.05 Web pricing policy

~~BEFORE $0.00~~ Now $198.05 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Reviews

Product Information

Description:

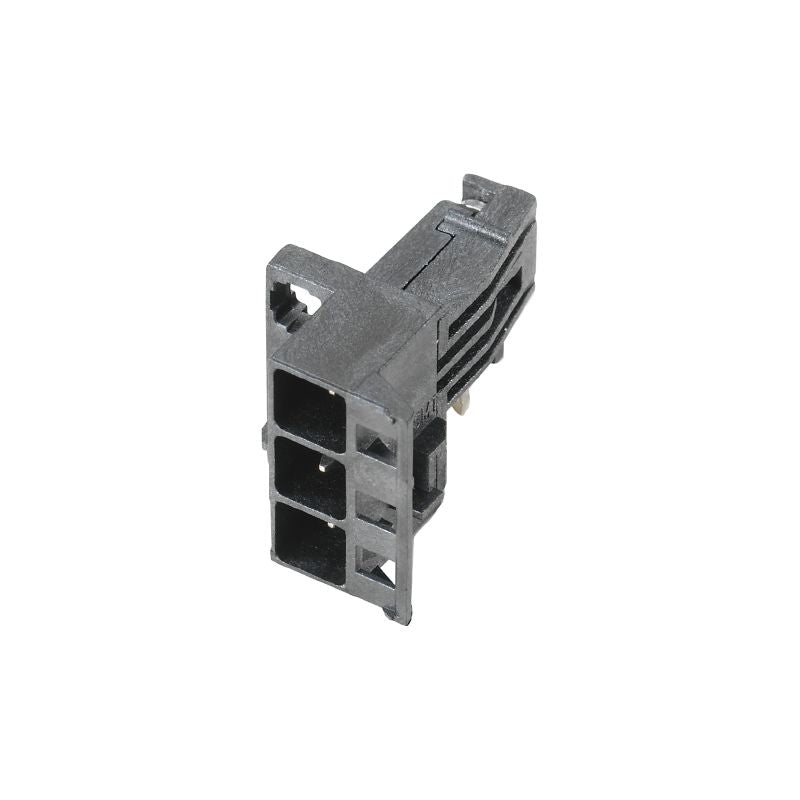

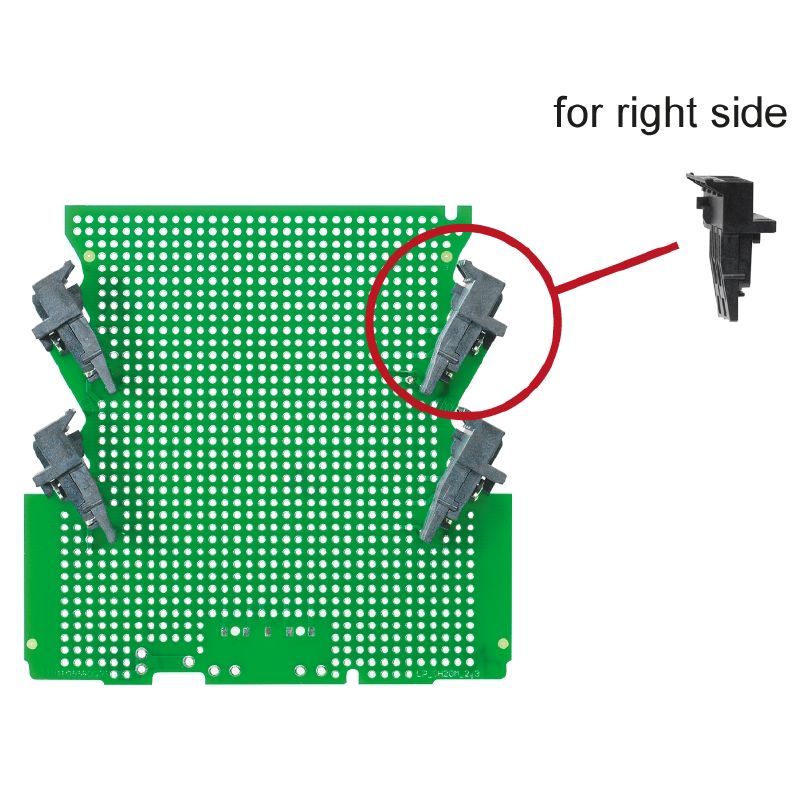

Discover the versatility of this PCB plug-in connector, featuring a right male header design with an open side It boasts a generous 500 mm pitch and is equipped with three poles, ensuring reliable connections The through-hole solder connections come with tinned solder pins that measure 59 mm in length, enhancing durability and performance Each connector is conveniently packaged in a box, making it easy to store and transport.

Perfect for various electronic applications, this component combines quality and functionality seamlessly.

Features and Benefits:

•RoHS compliant.

•Can withstand a storage temperature range of -40°C to 70°C.

•Operates within a temperature range of -40°C to 120°C.

•Includes a protection degree of IP20.

•The product can be coded.

Specifications:

IEC	400 V
UL	300 V / 9 A / AWG 26 - AWG 12
Depth	23.2 mm
Height	14.4 mm
Width	15.6 mm
Number of poles	3
Pin series quantity	1
Volume resistance	≤5 mΩ
Insulating material	LCP
Material	Copper alloy
UL 94 flammability rating	V-0
Rated current, max. number of poles (Tu=20°C)	10 A
Rated voltage for surge voltage class / pollution degree II/2	400 V
Rated data acc. to CSA	CSA
Reference to approval values	Specifications are maximum values, details - see approval certificate.
