1069680000 - 5mm THT Male Header Connector, 2 Poles, RoHS Compliant (Pack of 150)

1069680000 - 5mm THT Male Header Connector, 2 Poles, RoHS Compliant (Pack of 150)

SKU: 1069680000   Download PDF

Select a Variant:
  • 1069680000 - 5mm THT Male Header Connector, 2 Poles, RoHS Compliant (Pack of 150)
Qty:
Now $162.22   Web pricing policy
BEFORE   $0.00 Now $162.22 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

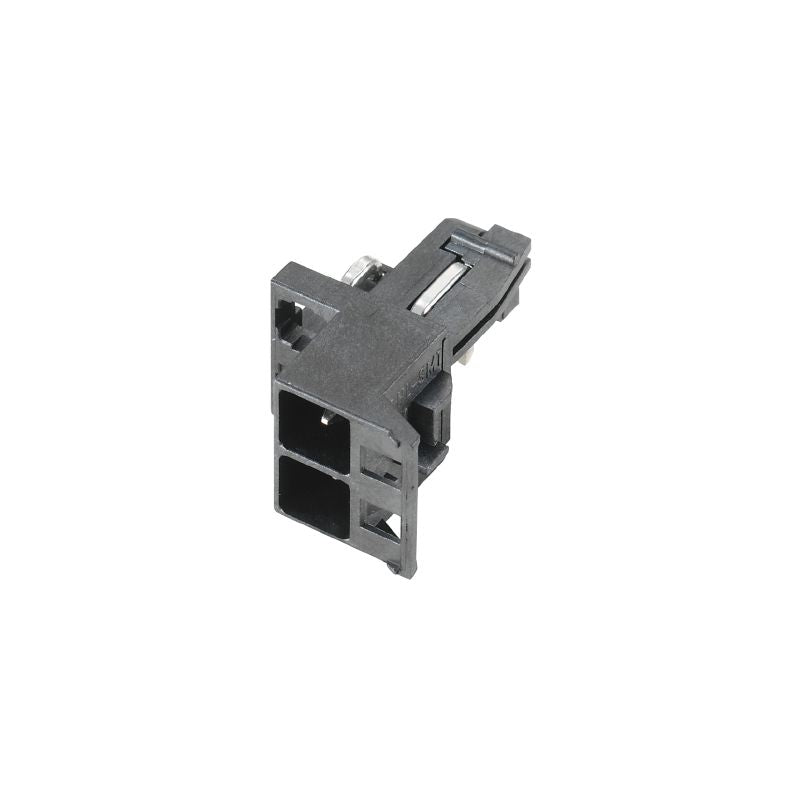

Discover the SHL-SMT 500/02GR 59BX, a high-performance right male header connector that is perfect for your PCB needs With a 5 mm pitch and designed for through-hole soldering (THT/THR), this connector features two poles and allows for a 90-degree connection The solder pins are 32 mm long, ensuring a reliable fit This connector meets RoHS compliance standards and carries a UL file number of E60693, making it a dependable choice for a variety of applications.

Features and Benefits:

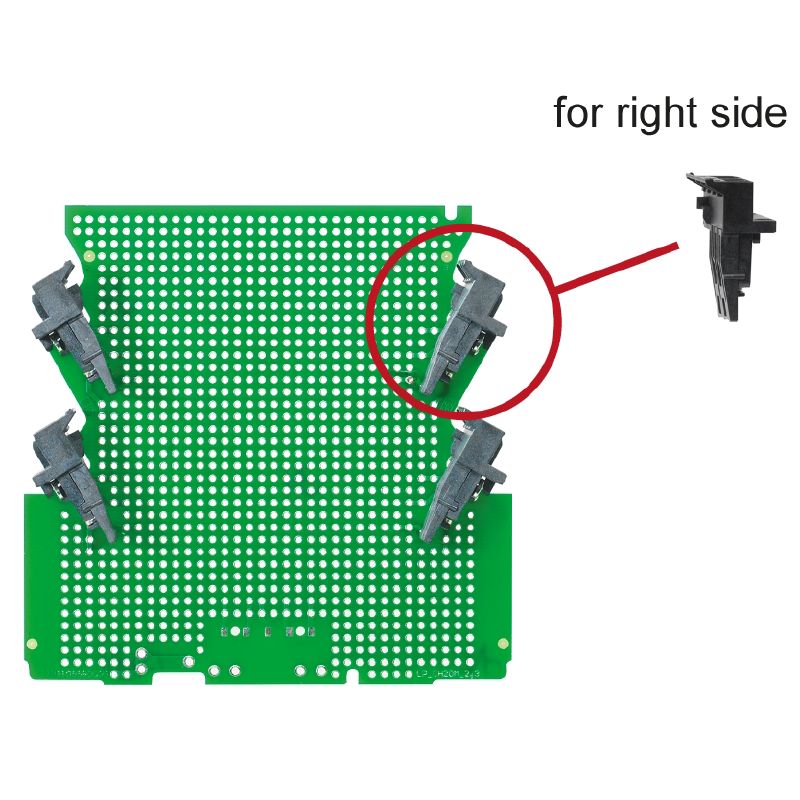

    •Designed for board connection with a 90-degree angle.

    •Can accommodate wire sizes from AWG 26 to AWG 12.

    •Dimensions: 22 mm depth, 10.4 mm width, 14.4 mm height.

    •Volume resistance of ≤5 mΩ.

    •IP20 protection degree.

    •Meets IPC-A-610 Class 2 standards.

Specifications:

 Rated voltage 400 V
 UL voltage rating 300 V / 9 A / AWG 26 - AWG 12
 Storage temperature range -40 °C to 70 °C
 Operating temperature range -40 °C to 120 °C

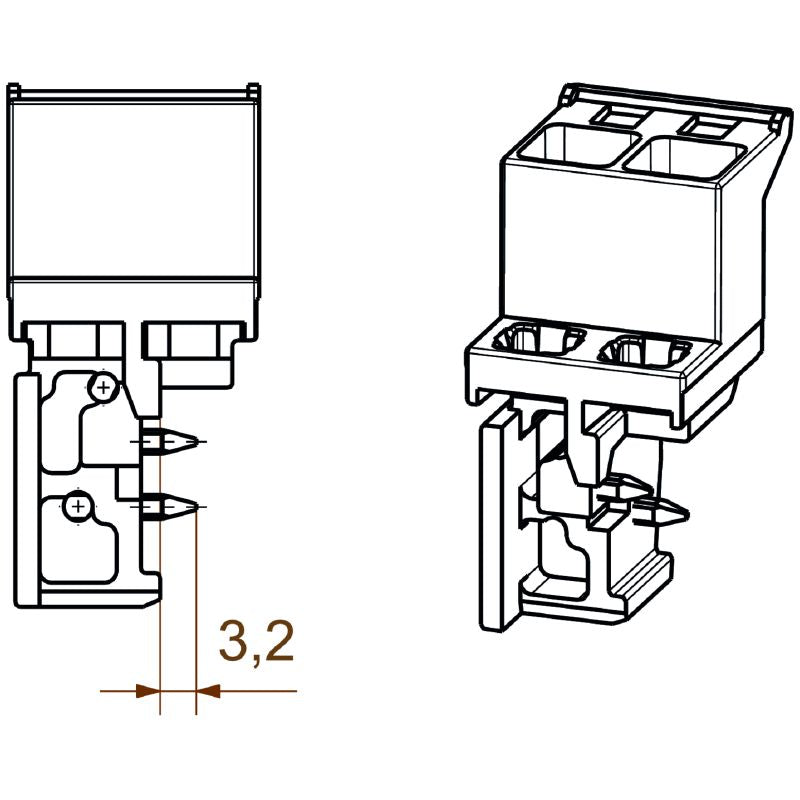

 Solder pin length 3.2 mm
 Pitch 5 mm
 Number of poles 2
 Protection degree IP20
 Comparative Tracking Index (CTI) 175 ≤ CTI <400
 UL 94 flammability rating V-0
