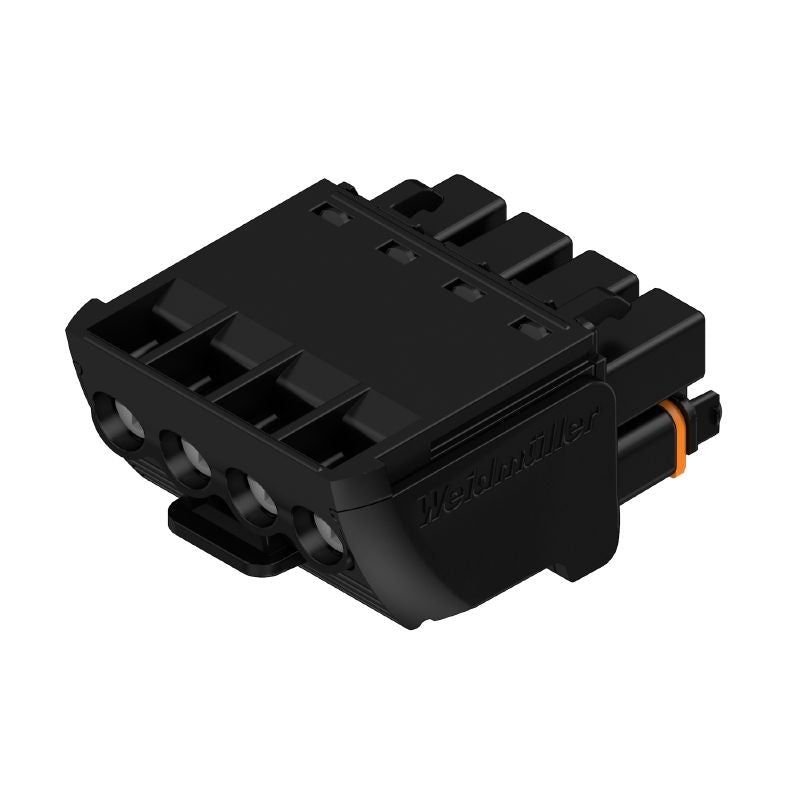

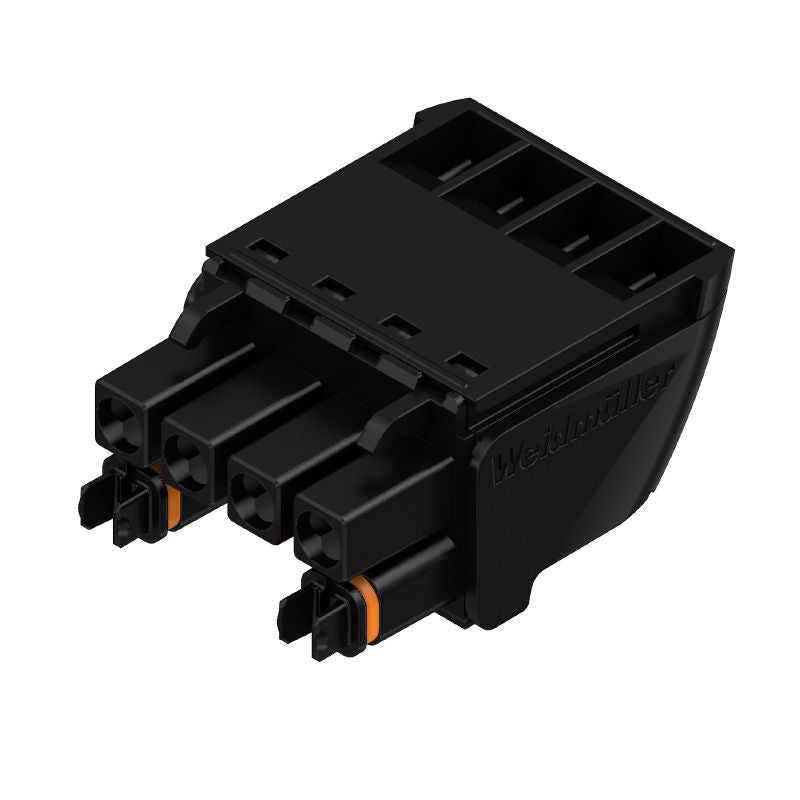

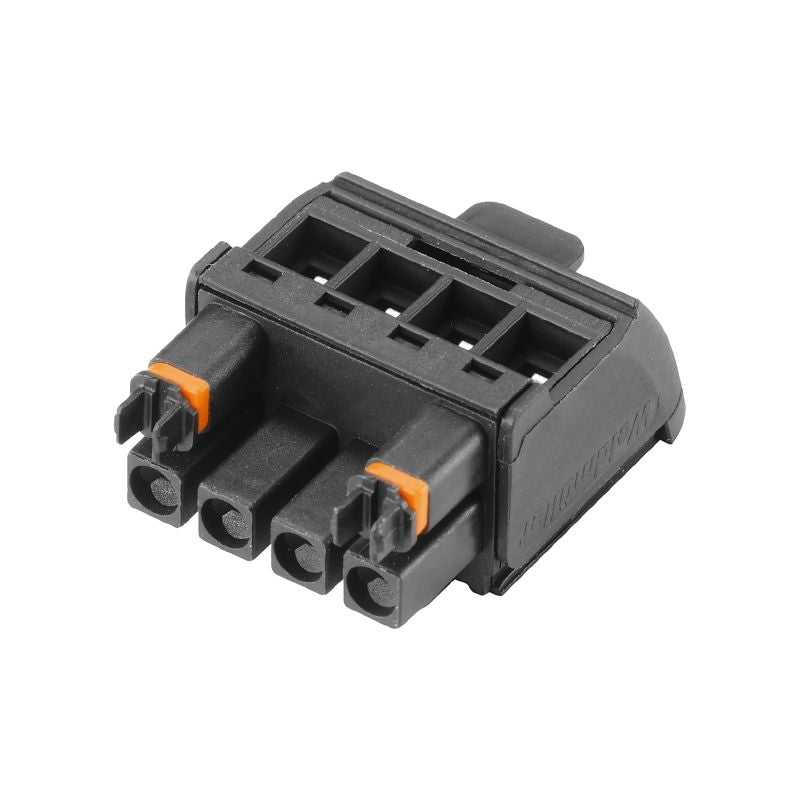

1069350000 - 5.00mm PCB Female Plug-in Connector, 4-Pole, 90° Orientation (Pack of 78)

SKU: SKU: 1069350000 Download PDF

Select a Variant:

1069350000 - 5.00mm PCB Female Plug-in Connector, 4-Pole, 90° Orientation (Pack of 78)

SET THE QTY:

Now $336.09 Web pricing policy

~~BEFORE $0.00~~ Now $336.09 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Discover the versatile BHZ 500/04/90LH BK/BK female plug-in connector, engineered specifically for printed circuit boards With a 500 mm pitch and a 90° orientation, it features a reliable clamping yoke connection for optimal performance This product is packaged securely in a box and meets stringent safety standards, including RoHS compliance and UL certification (E60693) It's designed to provide solid electrical connections across a variety of electronic applications, ensuring reliability and functionality.

Features and Benefits:

•Clamping yoke connection method.

•90° conductor outlet direction.

•Touch-safe protection according to DIN VDE standards.

•Can be coded.

•Available in black color.

•Insulating material is PA 66 GF 30.

Specifications:

Rated voltage (IEC)	400 V
Rated current	10 A
Wire connection cross section (min)	0.2 mm²
Wire connection cross section (max)	2.5 mm²
Operating temperature (min)	-40 °C
Operating temperature (max)	120 °C
Protection degree	IP20
Number of poles	4
Pitch	5 mm
Dimensions (mm)	Depth: 30.6, Height: 14.5, Width: 22.1
Screw tightening torque (min)	0.4 Nm
Screw tightening torque (max)	0.6 Nm
Storage temperature (min)	-40 °C
Storage temperature (max)	70 °C
