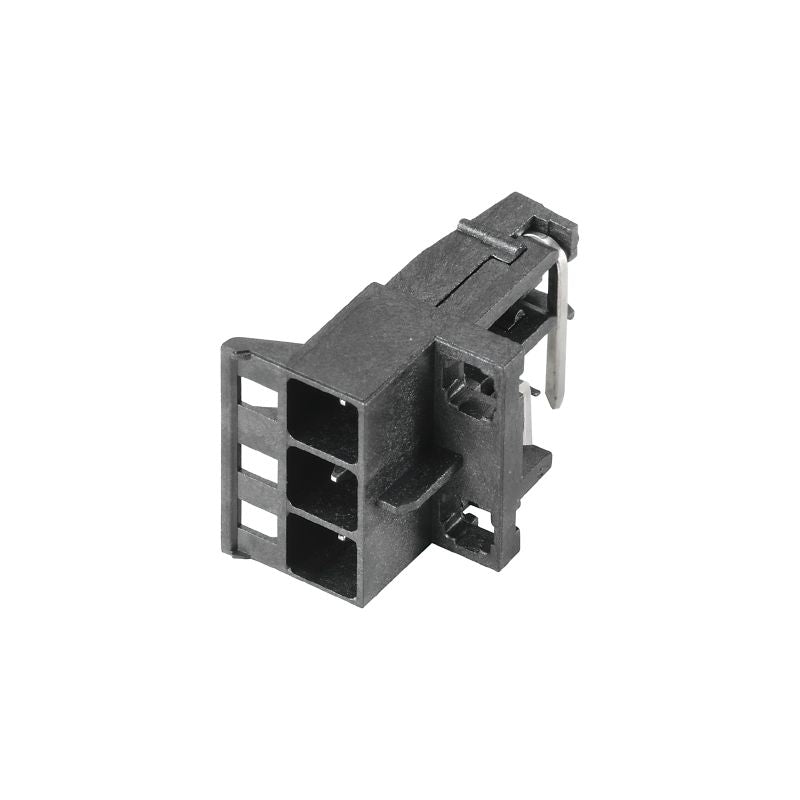

1063210000 - 5.00mm 3-Pole PCB Connector, THT Solder, Black Finish (Pack of 120)

1063210000 - 5.00mm 3-Pole PCB Connector, THT Solder, Black Finish (Pack of 120)

SKU: 1063210000

Select a Variant:
  • 1063210000 - 5.00mm 3-Pole PCB Connector, THT Solder, Black Finish (Pack of 120)
Qty:
Now $198.05   Web pricing policy
BEFORE   $0.00 Now $198.05 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Reviews
Product Information

Description:

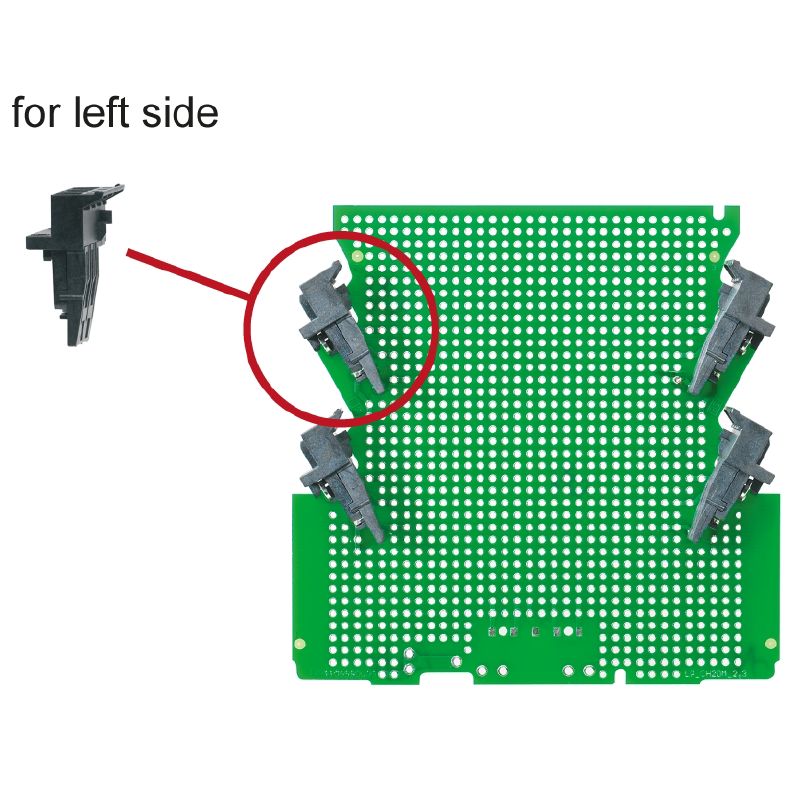

Discover the convenience of this PCB plug-in connector, expertly crafted for efficient board connections Featuring a left-side male header in an open design, it utilizes THT/THR soldering for reliable connections With a pitch of 500 mm and three poles, the solder pin measures 15 mm in length The connector boasts a sleek black housing with a tinned finish, packaged in sets of 120 This product is RoHS-compliant, adhering to IEC standards for safety and quality assurance.

Perfect for your electronic assembly needs!.

Features and Benefits:

    •RoHS compliant.

    •UL certified with a certificate number of E60693.

    •IP20 protection degree.

    •Can be coded for specific applications.

    •Conforms to IPC-A-610 'Class 2'.

Specifications:

 Depth 23.2 mm
 Height 14.4 mm
 Width 15.6 mm
 Rated current (maximum) 10 A
 Rated voltage (UL) 300 V
 Operating temperature (max) 120 °C
 Storage temperature (max) 70 °C
 Pollution degree III/2
 Insulating material LCP
 UL 94 flammability rating V-0
 Contact material Copper alloy
 Volume resistance ≤5 mΩ
 Moisture Level (MSL) 1
