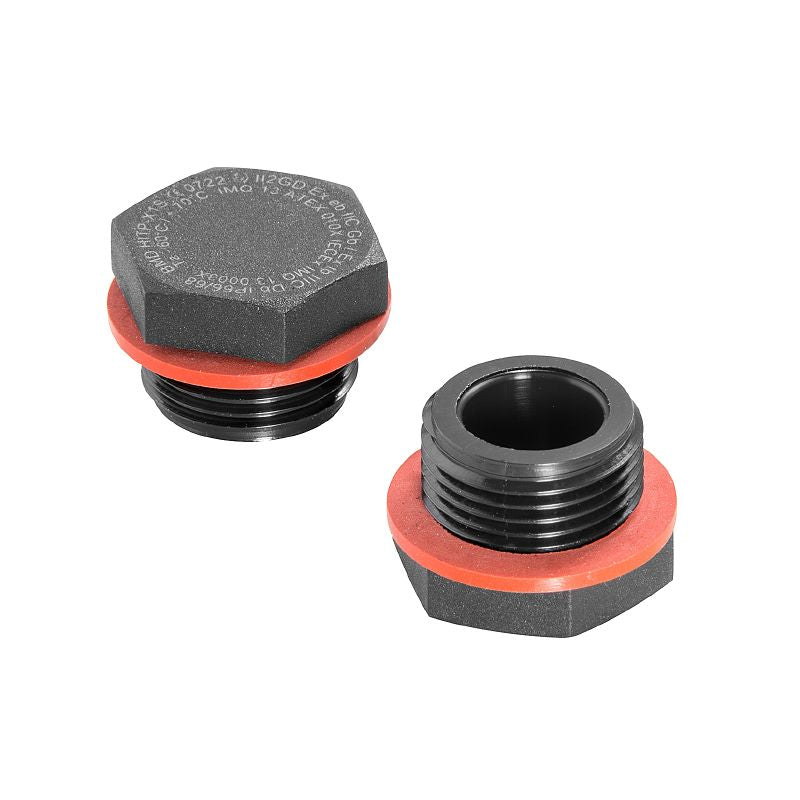

2066940000 - Ex Plastic Blanking Plug M63, IP68 Rated, Water Resistant (Pack of 20)

SKU: SKU: 2066940000 Download PDF

Select a Variant:

2066940000 - Ex Plastic Blanking Plug M63, IP68 Rated, Water Resistant (Pack of 20)

SET THE QTY:

Now $435.19 Web pricing policy

~~BEFORE $0.00~~ Now $435.19 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the Ex blanking plug, expertly crafted from durable plastic with a sealed design for optimal protection With dimensions of M 63 and a length of 18 mm, this component boasts an impressive water-resistance rating of IP54, IP66, IP67, and IP68, ensuring it can handle water pressure up to 5 bar for a duration of 30 minutes Made from high-quality Polyamide 6, this plug meets RoHS standards for safety and environmental compliance.

It features an external thread size of M 63 and comes complete with a 63 mm sealing ring for enhanced sealing performance.

Features and Benefits:

•Operating temperature range from -60 °C to +70 °C.

•Impact resistance rated at 7 joules according to IEC60079-0.

•Silicone O-Ring for sealing.

•Compliant with various standards including IEC and EN.

•Improved safety explosion protection type Ex e.

Specifications:

Height	27.5 mm
Length	27.5 mm
Diameter	63 mm
Wall thickness, min.	0.5 mm
Wall thickness, max.	17 mm
Basic material	Polyamide 6
Length of thread	18 mm
Protection degree	IP54, IP66, IP67, IP68 - 5 bar (30 min.)
Pitch of thread	1.5 mm
Torque for connecting adapter, max.	10 Nm
Torque for connecting adapter, min.	10 Nm
Torque for lock nut, max.	10 Nm
Torque for lock nut, min.	1.5 Nm
UL 94 flammability rating	HB
ETIM 6.0	EC000451
ECLASS 9.0	27-14-44-25
