2583800000 - Durable 70mm Cable Entry System with IP66 Protection

2583800000 - Durable 70mm Cable Entry System with IP66 Protection

SKU: 2583800000   Download PDF

Select a Variant:
  • 2583800000 - Durable 70mm Cable Entry System with IP66 Protection
Qty:
Now $24.92   Web pricing policy
BEFORE   $0.00 Now $24.92 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

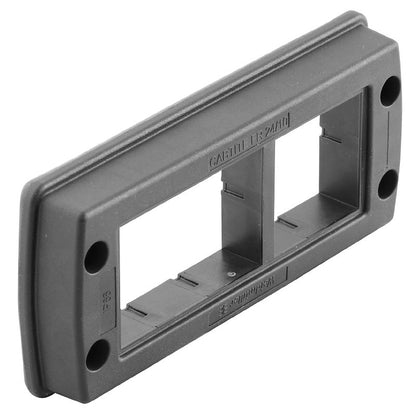

Introducing the CABTITE FR 24/10 BK cable entry system, engineered for exceptional durability across various applications Crafted from robust polyamide reinforced with glass fiber, this system boasts a striking deep black finish It effectively withstands temperatures ranging from -40 °C to 120 °C and meets the high environmental resistance standards of IP66 With dimensions of 70 mm in height, 153 mm in width, and 19.

6 mm in depth, it is designed for versatility Furthermore, it complies with RoHS regulations and is halogen-free, making it an excellent choice for extensive use in diverse environments.

Features and Benefits:

    •Made from polyamide and glass fibre-reinforced materials.

    •Operating temperature range from -40 °C to 120 °C.

    •Protection class IP66 ensuring environmental protection.

    •Compliant with RoHS regulations.

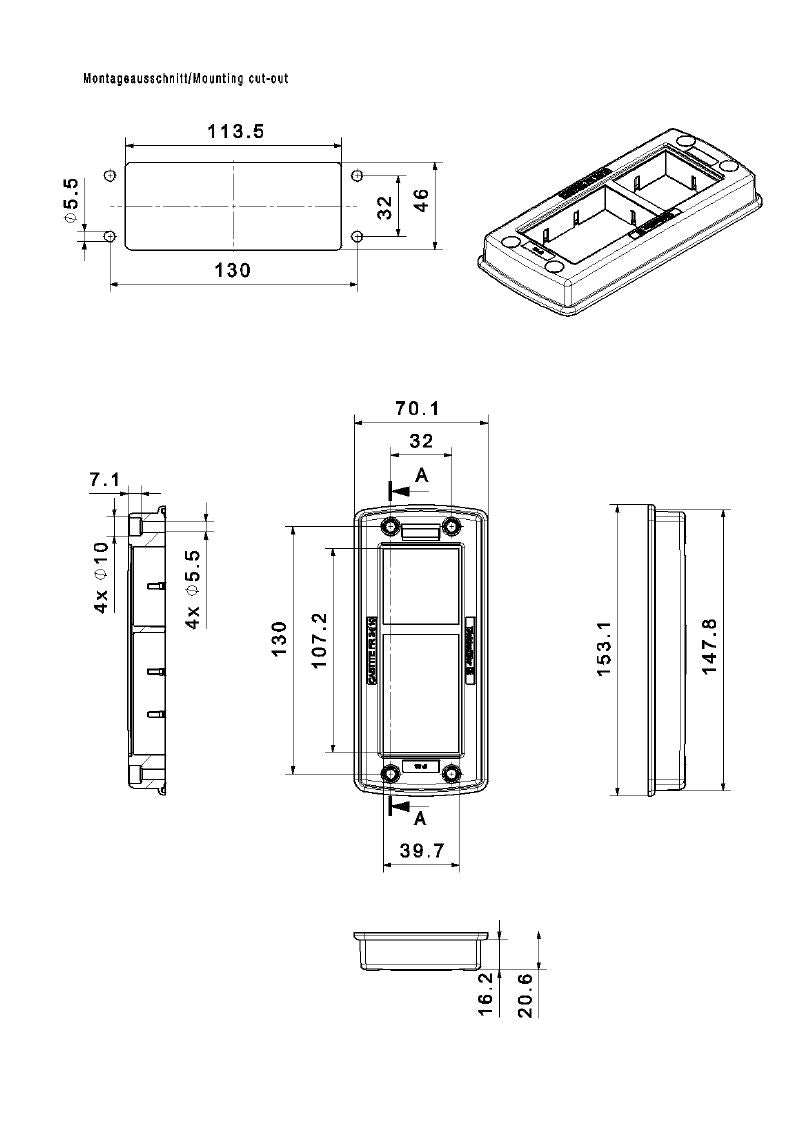

Specifications:

 Depth 19.6 mm
 Height 70 mm
 Width 153 mm
 Diameter 5.5 mm
 Mounting dimension - height 130 mm
 Mounting dimension - width 32 mm
 Sealing TPE
 Tightening torque 3 Nm
 UL 94 flammability rating V-0
 Protection class (UL) Type 12, Type 4X
 Opening length 113.5 mm
 Opening width 46 mm
