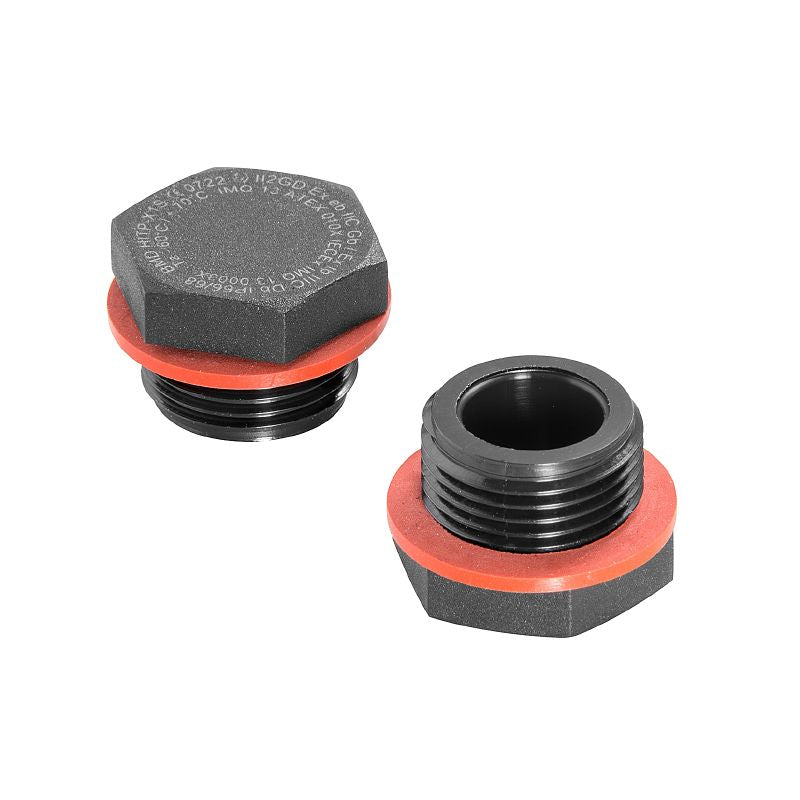

2066770000 - M50 50mm IP68 Plastic Blanking Plug, RoHS Compliant (Pack of 20)

SKU: SKU: 2066770000 Download PDF

Select a Variant:

2066770000 - M50 50mm IP68 Plastic Blanking Plug, RoHS Compliant (Pack of 20)

SET THE QTY:

Now $383.22 Web pricing policy

~~BEFORE $0.00~~ Now $383.22 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the VP M50 EX SI 7J Blanking Plug, crafted from durable plastic to effectively seal off M50 threads with a 50 mm diameter This component provides exceptional protection, featuring IP ratings of IP54, IP66, IP67, and IP68, ensuring resilience against water and dust for up to 30 minutes at a pressure of 5 bars Made from high-quality Polyamide 6, this product adheres to RoHS standards, making it a reliable choice for various applications.

Features and Benefits:

•Closed state design.

•Explosive protection type is improved safety Ex e.

•Impact resistance of 7 joules in accordance with IEC60079-0.

•Installation guidelines provided.

•Includes an O-Ring made of silicone.

Specifications:

Height	27.5 mm
Length	27.5 mm
Diameter	50 mm
Wall thickness, min.	0.5 mm
Wall thickness, max.	17 mm
Operating temperature range, max.	70 °C
Operating temperature range, min.	-60 °C
Protection degree	IP54, IP66, IP67, IP68 - 5 bar (30 min.)
Basic material	Polyamide 6
External thread	M 50
Torque for connecting adapter, max.	8 Nm
Torque for connecting adapter, min.	8 Nm
Torque for lock nut, max.	8 Nm
Torque for lock nut, min.	7.8 Nm
Certificate no. cable gland (ATEX)	IMQ 13 ATEX 010 X
Certificate no. cable gland (IECEx)	IECEx IMQ 13.0003X
Certificate no. cable gland (INMETRO)	TAE00003WV
Halogen	No
Sealing	Silicone
