Product Information

Description:

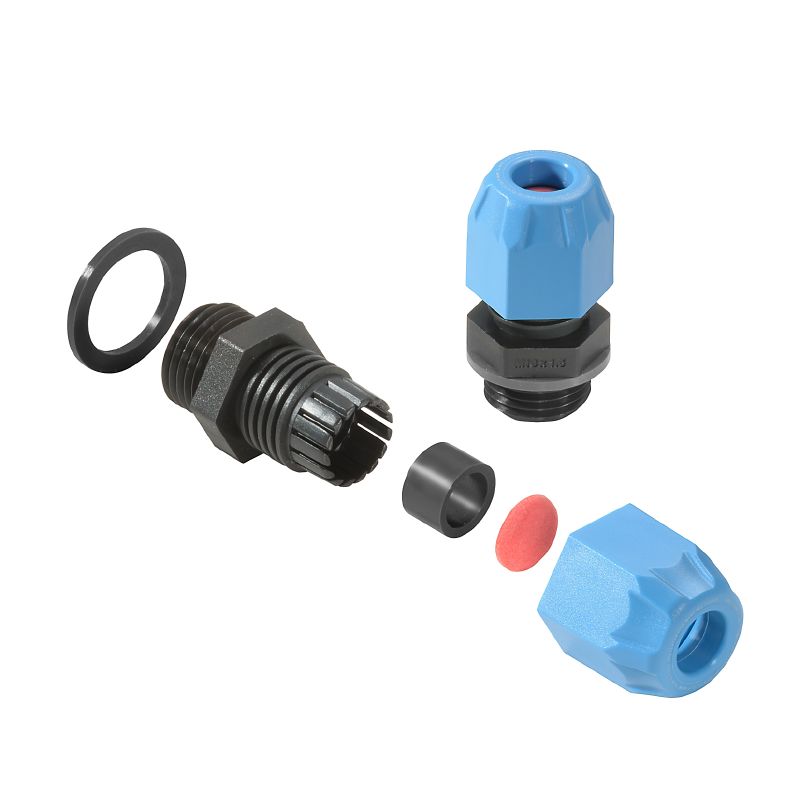

Introducing the VG Exi 7J, a robust straight cable gland designed for M16 applications This reliable component accommodates cable outer diameters ranging from 6 mm to 10 mm and boasts impressive protection ratings of IP54, IP66, IP67, and IP68, allowing it to endure pressures of up to 5 bar for a duration of 30 minutes Made from durable Polyamide 6, it meets essential certifications including CE, EAC, ATEX, IECEX, and INMETRO, guaranteeing compliance with safety standards for optimal performance.

Features and Benefits:

•Compliant with RoHS regulations.

•Halogen-free construction.

•Impact resistance of 7 joules as per IEC 60079-0 standards.

•Intrinsically safe explosion protection type Ex i.

•Made from durable Polyamide 6.

Specifications:

Operating temperature range, min.	-40 °C
Operating temperature range, max.	70 °C
Outer cable diameter, min.	6 mm
Outer cable diameter, max.	10 mm
Length of thread	10 mm
Protection degree	IP54, IP66, IP67, IP68 - 5 bar (30 min.)
Tightening torque	2.5 Nm
Torque for cap nut, max.	3 Nm
Torque for cap nut, min.	2 Nm
Torque for connecting adapter, max.	3 Nm
Torque for connecting adapter, min.	2 Nm
UL 94 flammability rating	HB
Certificate no. cable gland (ATEX)	IMQ 13 ATEX 010 X
Certificate no. cable gland (IECEx)	IECEx IMQ 13.0003X
Certificate no. cable gland (INMETRO)	DNV 18.0150 X/01
