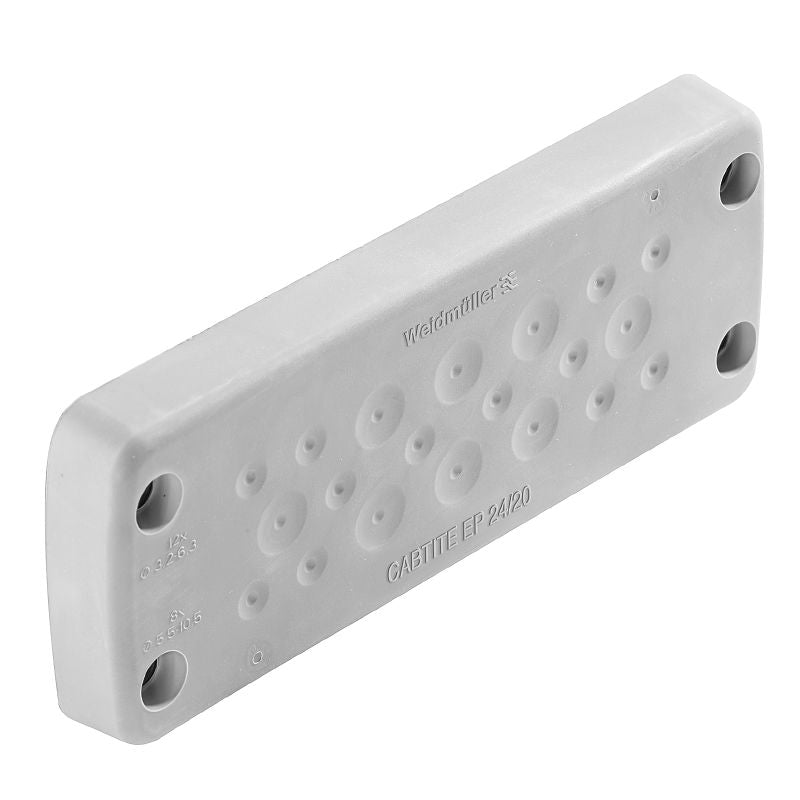

2779360000 - Grey CABTITE EP Cable Entry Plate, 58mm x 149.6mm (Pack of 10)

2779360000 - Grey CABTITE EP Cable Entry Plate, 58mm x 149.6mm (Pack of 10)

SKU: 2779360000   Download PDF

Select a Variant:
  • 2779360000 - Grey CABTITE EP Cable Entry Plate, 58mm x 149.6mm (Pack of 10)
Qty:
Now $481.82   Web pricing policy
BEFORE   $0.00 Now $481.82 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the CABTITE EP 24/20 GY, a reliable cable entry plate specifically crafted for TPE applications This plate boasts a sophisticated grey hue and measures 58 mm in height, 1496 mm in width, and 202 mm in depth It is engineered to perform optimally in temperature conditions ranging from -40 °C to 90 °C Additionally, it complies with the IP66 protection standards, ensuring robust performance and durability.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •UL approval with multiple protection classes.

    •Capable of connecting multiple cables with different diameter specifications.

Specifications:

 Operating temperature: -40 °C to 90 °C
 Protection degree: IP66
 Basic material: TPE
 UL flammability rating: V-0
 Tightening torque: 3.5 Nm
 Number of connectable cables: 20
 Cable diameter, min. (Type 1): 3.2 mm
 Cable diameter, max. (Type 1): 6.3 mm
 Cable diameter, min. (Type 2): 5.5 mm
 Cable diameter, max. (Type 2): 10.5 mm
 Number of cable entries: 12
