2584150000 - IP66 Black Cable Gland, 24.7mm Height, Polyamide Material (Pack of 5)

2584150000 - IP66 Black Cable Gland, 24.7mm Height, Polyamide Material (Pack of 5)

SKU: 2584150000   Download PDF

Select a Variant:
  • 2584150000 - IP66 Black Cable Gland, 24.7mm Height, Polyamide Material (Pack of 5)
Qty:
Now $113.84   Web pricing policy
BEFORE   $0.00 Now $113.84 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

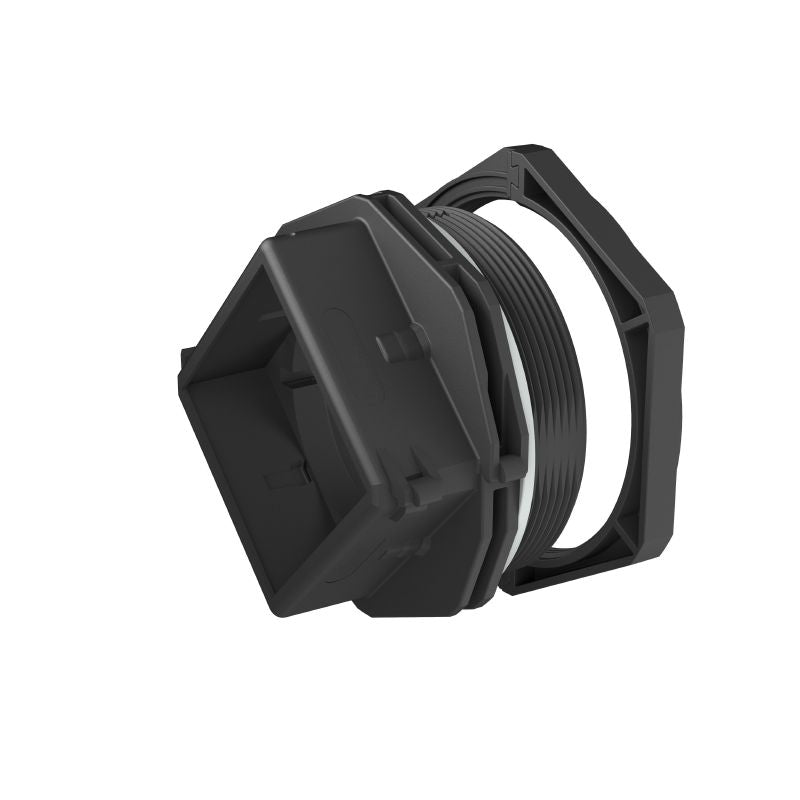

Introducing the CABTITE CGS M40 BK, a reliable separable cable gland ideal for cable entry systems Crafted from polyamide and enhanced with glass fiber reinforcement, this cable gland showcases a striking deep black hue With a height of 247 mm, it is engineered to perform in a temperature range of -40 °C to 120 °C, making it suitable for various applications Additionally, boasting an IP66 protection rating, it ensures outstanding resistance to dust and water ingress.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Sealing element available in either a large single or four small seals.

    •External thread size of M 40.

    •UL 94 flammability rating of V-0.

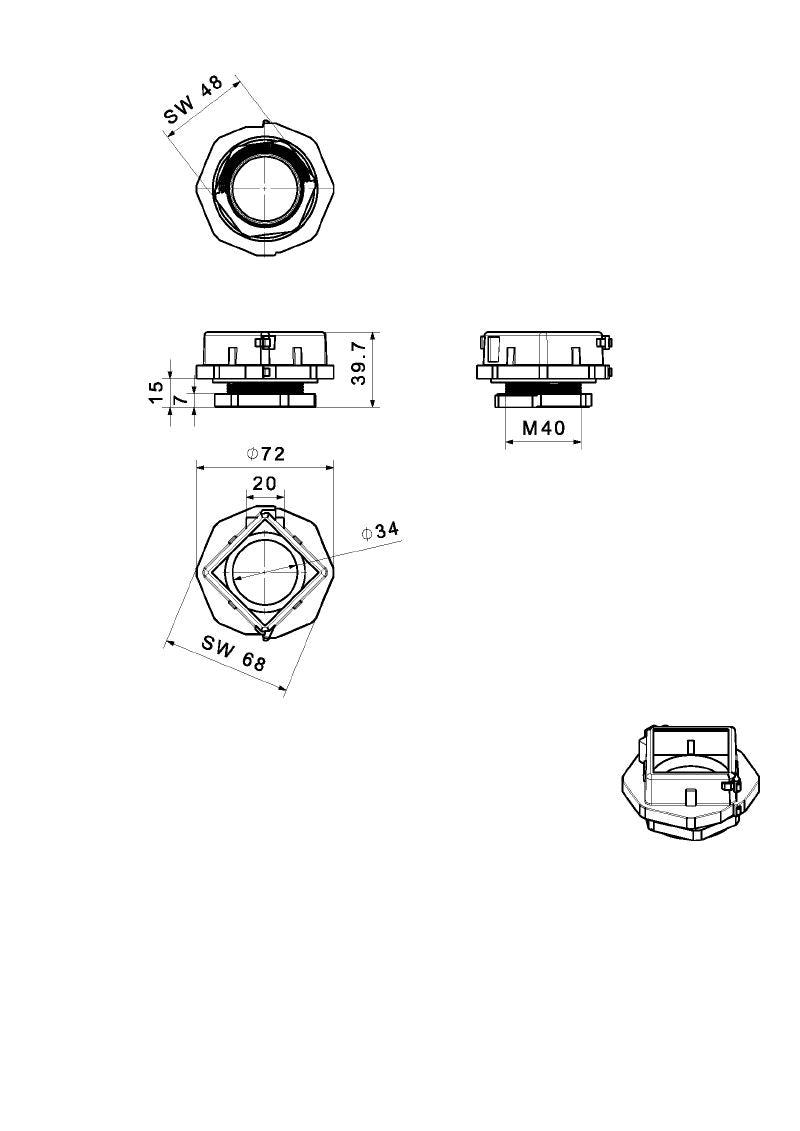

Specifications:

 Depth 39.7 mm (1.563 inch)
 Height 24.7 mm (0.972 inch)
 Width 72 mm (2.835 inch)
 Operating temperature -40 °C...120 °C
 Length of thread 15 mm
 Opening diameter 40 mm
 Pitch of thread 1.5 mm
 Tightening torque, max. 7 Nm
 Tightening torque, min. 6.8 Nm
 AF size 1 68 mm
 AF size 2 48 mm
 Basic material Polyamide, glass fibre-reinforced
 Sealing TPE
 Halogen No
 Silicone No
