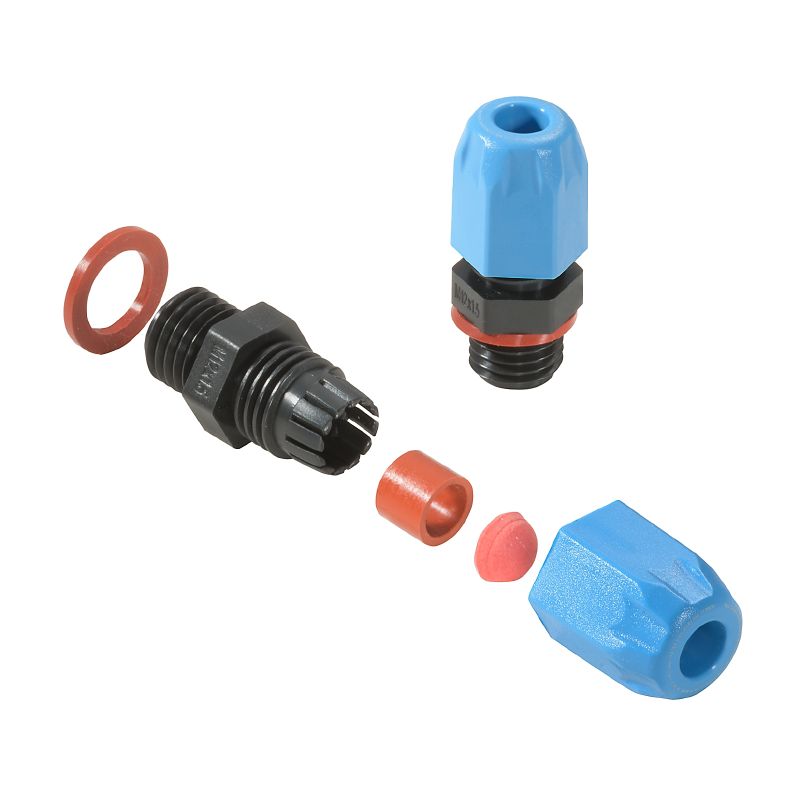

2722350000 - VG Exi M12 Cable Gland, 4-6.5mm, IP68 Protection (Pack of 100)

2722350000 - VG Exi M12 Cable Gland, 4-6.5mm, IP68 Protection (Pack of 100)

SKU: 2722350000   Download PDF

Select a Variant:
  • 2722350000 - VG Exi M12 Cable Gland, 4-6.5mm, IP68 Protection (Pack of 100)
Qty:
Now $446.14   Web pricing policy
BEFORE   $0.00 Now $446.14 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience reliable connectivity with the VG Exi 7J Ex-plastic cable gland, specially engineered for M12 connections With an adjustable outer diameter ranging from 4 mm to 65 mm, this cable gland offers robust protection with ratings of IP54, IP66, IP67, and IP68 It withstands pressure levels of up to 5 bar for 30 minutes, proving its durability in various environments Compliance with multiple industry standards, including CE, EAC, ATEX, IECEX, and INMETRO, guarantees its quality and safety.

Constructed from durable polyamide 6, it operates seamlessly across temperatures from -60 °C to 70 °C.

Features and Benefits:

    •Complies with RoHS and has no SVHC above 0.1 wt%.

    •Impact resistant up to 7 joules according to IEC 60079-0.

    •Made from halogen-free materials.

    •Sealing and seal insert made of silicone.

Specifications:

 Height 28.3 mm
 Height (inches) 1.114 inch
 Length 22 mm
 Length (inches) 0.866 inch
 Basic material Polyamide 6
 Explosion protection type Intrinsically safe Ex i
 External thread M 12
 Operating temperature range, max 70 °C
 Operating temperature range, min -60 °C
 Outer cable diameter, max 6.5 mm
 Outer cable diameter, min 4 mm
 Pitch of thread 1.5 mm
 Protection degree IP54, IP66, IP67, IP68 - 5 bar (30 min.)
 Tightening torque 2 Nm
 Torque for cap nut, max 2.5 Nm
 Torque for cap nut, min 1.5 Nm
 Torque for connecting adapter, max 2.5 Nm
 Torque for connecting adapter, min 1.5 Nm
 UL 94 flammability rating HB
 Approval conditions ATEX, IECEx
 Certificate no. cable gland (ATEX) IMQ 13 ATEX 010 X
 Certificate no. cable gland (IECEx) IECEx IMQ 13.0003X
 Certificate no. cable gland (INMETRO) DNV 18.0150 X/01
 Identification Ex eb llC Gb, Ex tb IIIC Db IP66/68
