2891470000 - IP66 Cable Entry System, 64mm Height, Glass Fiber Reinforced

2891470000 - IP66 Cable Entry System, 64mm Height, Glass Fiber Reinforced

SKU: 2891470000   Download PDF

Select a Variant:
  • 2891470000 - IP66 Cable Entry System, 64mm Height, Glass Fiber Reinforced
Qty:
Now $26.37   Web pricing policy
BEFORE   $0.00 Now $26.37 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

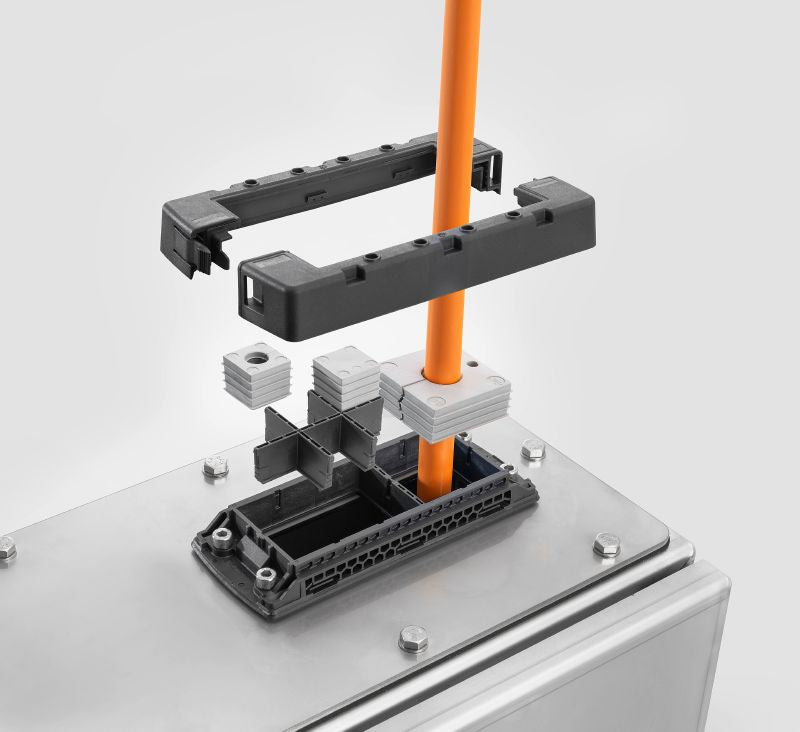

Introducing the CABTITE FRFT 4-1 SET, an advanced cable entry solution crafted from polyamide reinforced with glass fiber for enhanced durability This system boasts a sophisticated deep black finish and measures 64 mm in height, 81 mm in width, and 242 mm in depth Engineered to perform within a temperature range of -40 °C to 120 °C, it is designed with an IP66 rating, ensuring exceptional protection against dust and water.

The set includes a prominent sealing element as well as four smaller seals to provide reliable tightness and safeguard your installations.

Features and Benefits:

    •Commerical approval for RoHS compliance.

    •Constructed from UR-certified components.

    •Includes sealing element for effective environmental protection.

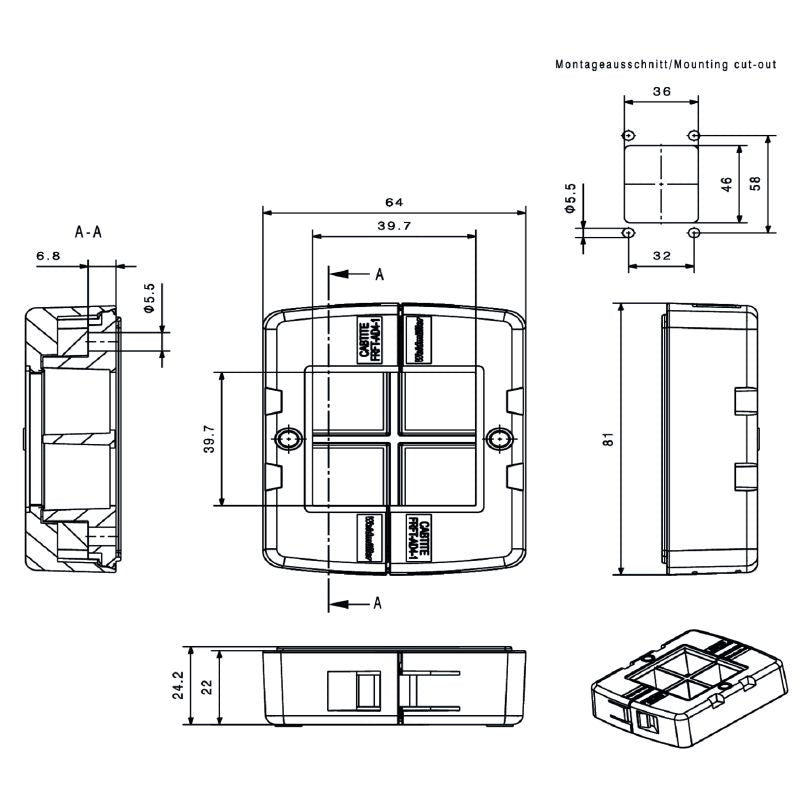

Specifications:

 Depth: 24.2 mm
 Height: 64 mm
 Width: 81 mm

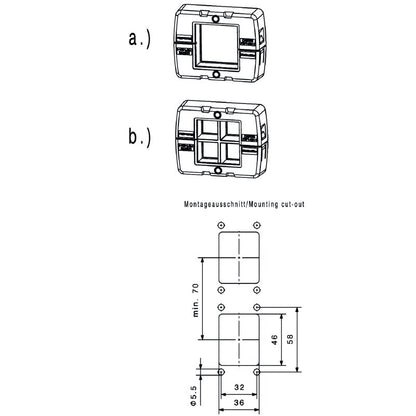

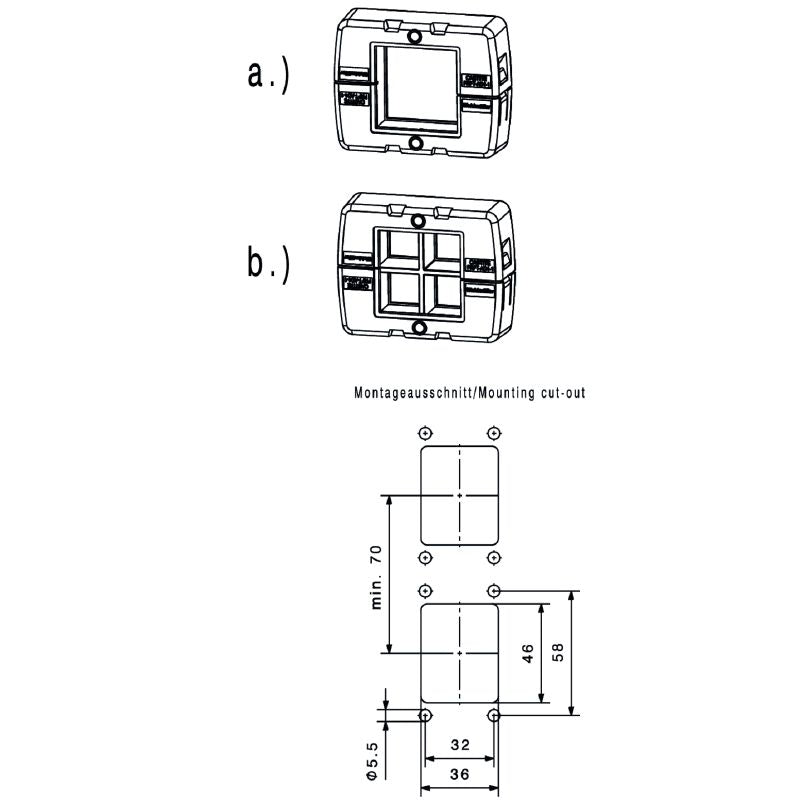

 Opening length: 46 mm
 Opening width: 36 mm
 Protection class (UL): Type 12, Type 4X
 Sealing: TPE
 Tightening torque: 3 Nm
 UL 94 flammability rating: V-0
