2583760000 - IP66 70mm Cable Entry System with Glass Fiber Reinforcement

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

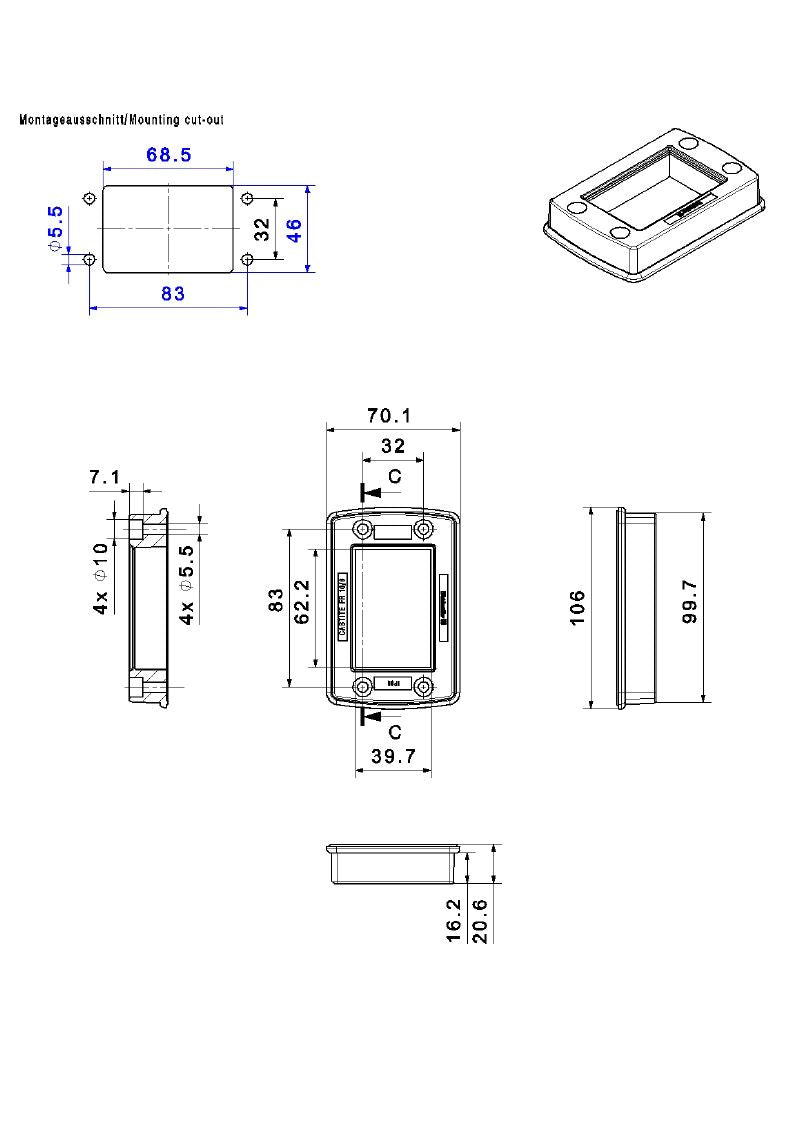

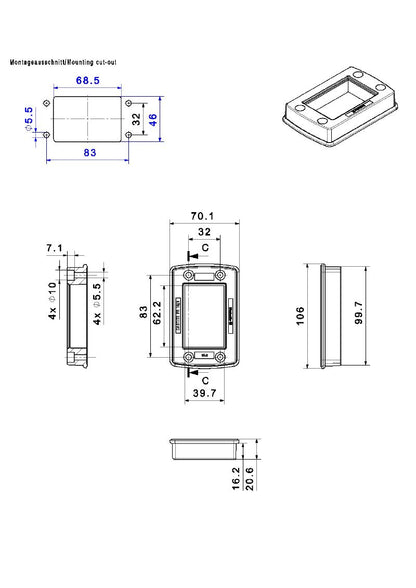

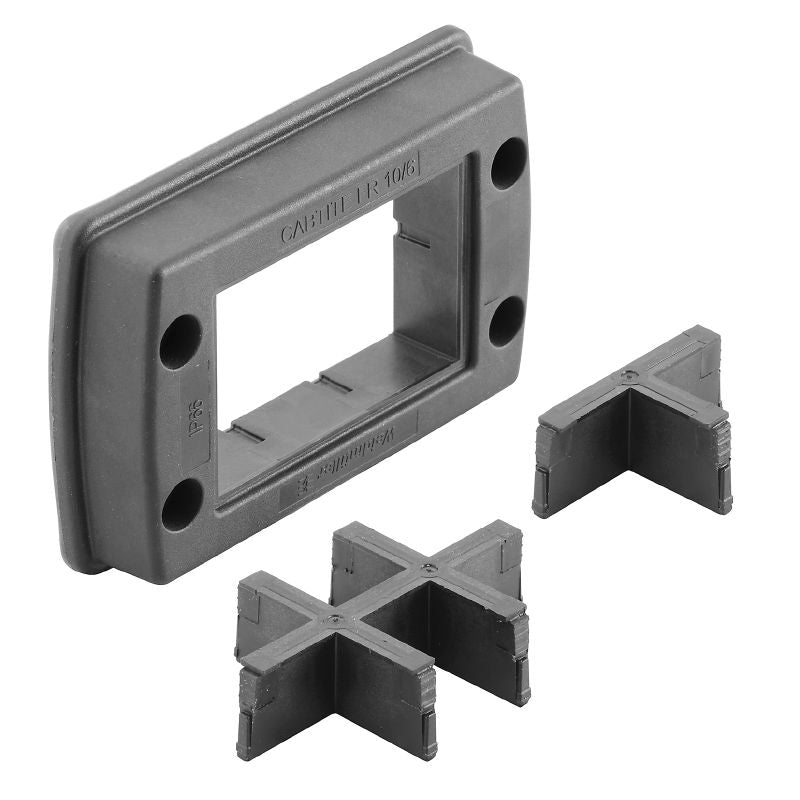

Introducing the CABTITE FR 10/6 BK SET, a robust cable entry system engineered for dependable performance Crafted from polyamide reinforced with glass fibers, this product showcases a striking deep black hue It functions effectively within an extensive temperature range of -40 °C to 120 °C and is rated IP66, ensuring superior resistance to dust and water With dimensions of 70 mm in height, 106 mm in width, and 19.

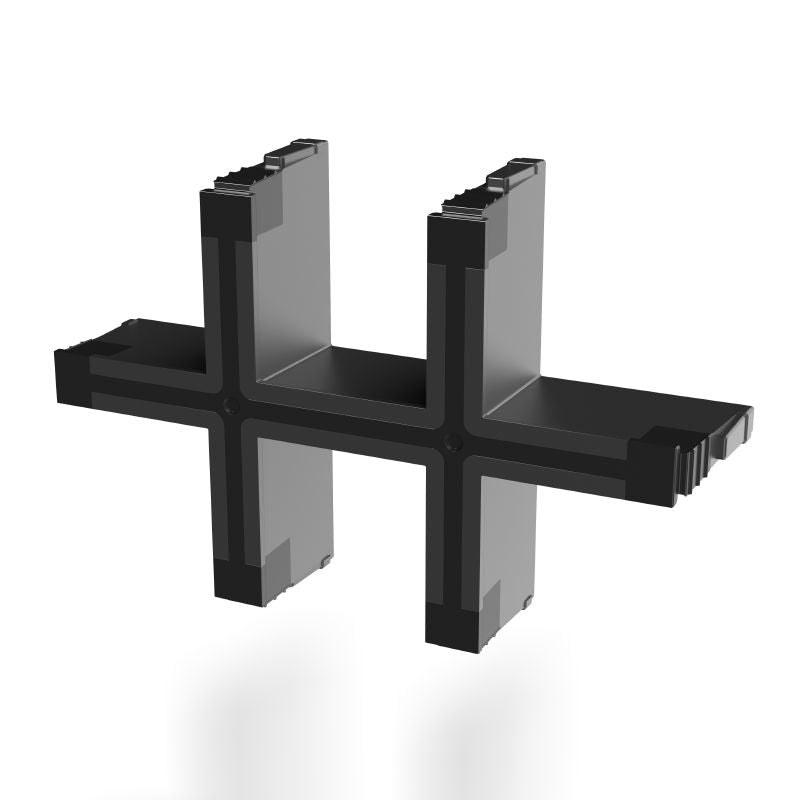

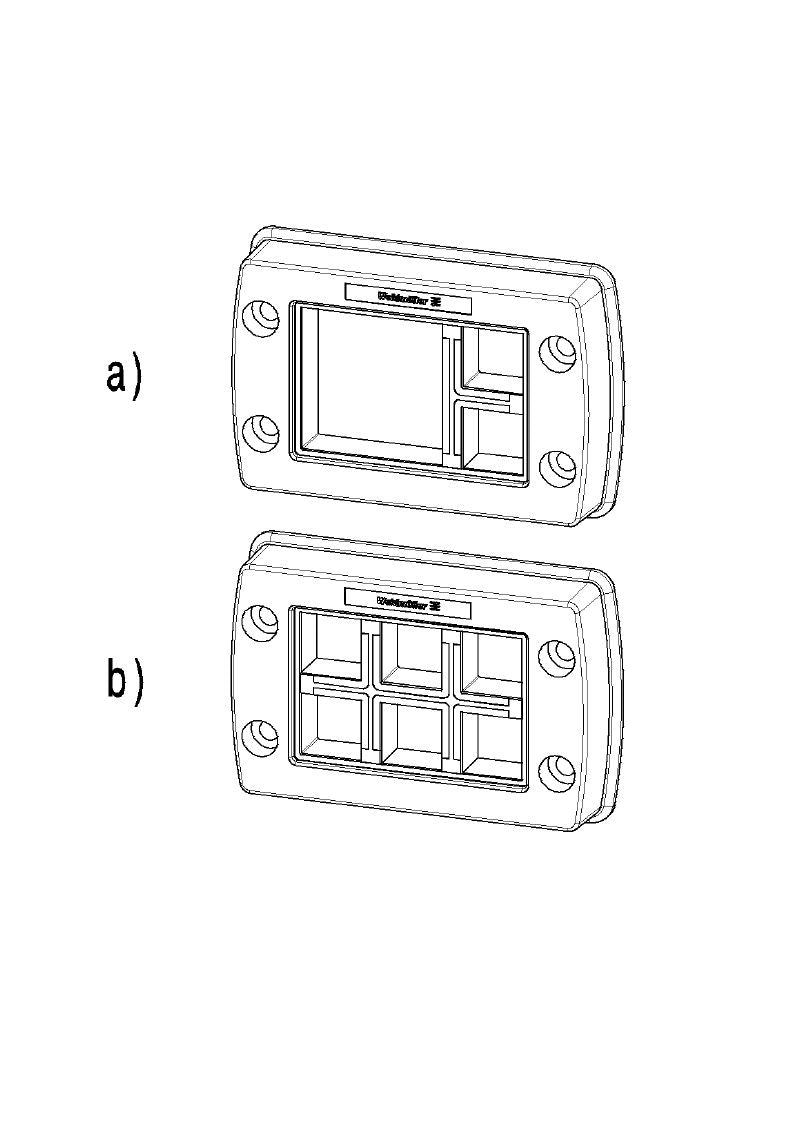

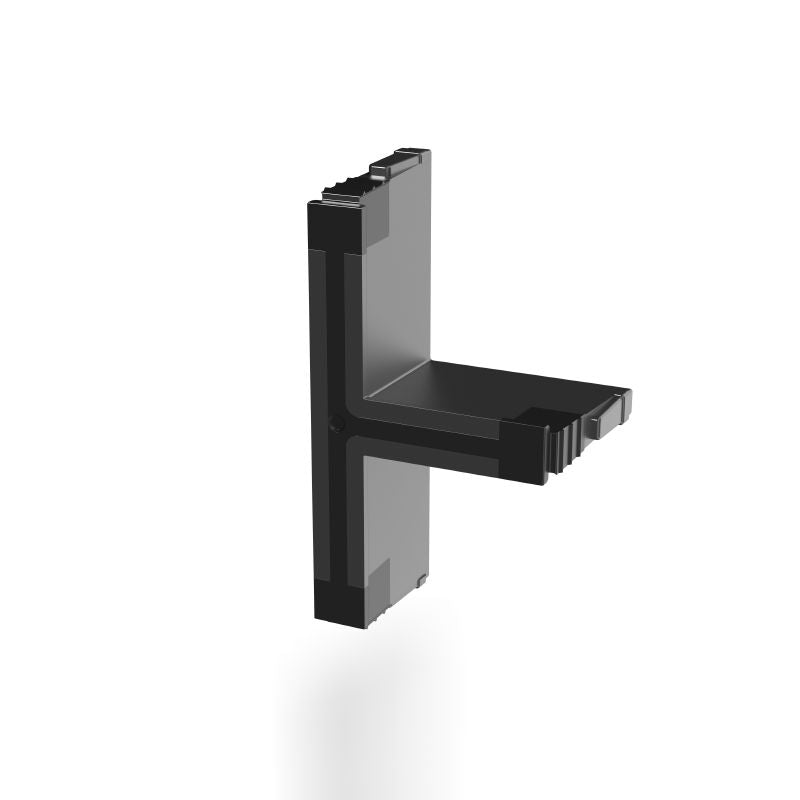

6 mm in depth, the system is designed for versatile applications The TPE sealing provides options for either six small sealing elements or a combination of one large and two small elements, catering to various installation needs Standard features include a UL 94 V-0 flammability rating and a recommended tightening torque of 3 Nm Please note that mounting materials for securing to control cabinets or enclosures are not included in this set.

Features and Benefits:

•Constructed from polyamide, glass fibre-reinforced material.

•Operates effectively within temperatures from -40 °C to 120 °C.

•IP66 rating providing excellent protection against dust and water.

•Includes options for multiple sealing configurations.

Specifications:
