2811470000 - VG M20-K68 Polyamide Cable Gland 10-14mm, IP68 Rated (Pack of 50)

SKU: SKU: 2811470000 Download PDF

Select a Variant:

2811470000 - VG M20-K68 Polyamide Cable Gland 10-14mm, IP68 Rated (Pack of 50)

SET THE QTY:

Now $62.75 Web pricing policy

~~BEFORE $0.00~~ Now $62.75 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

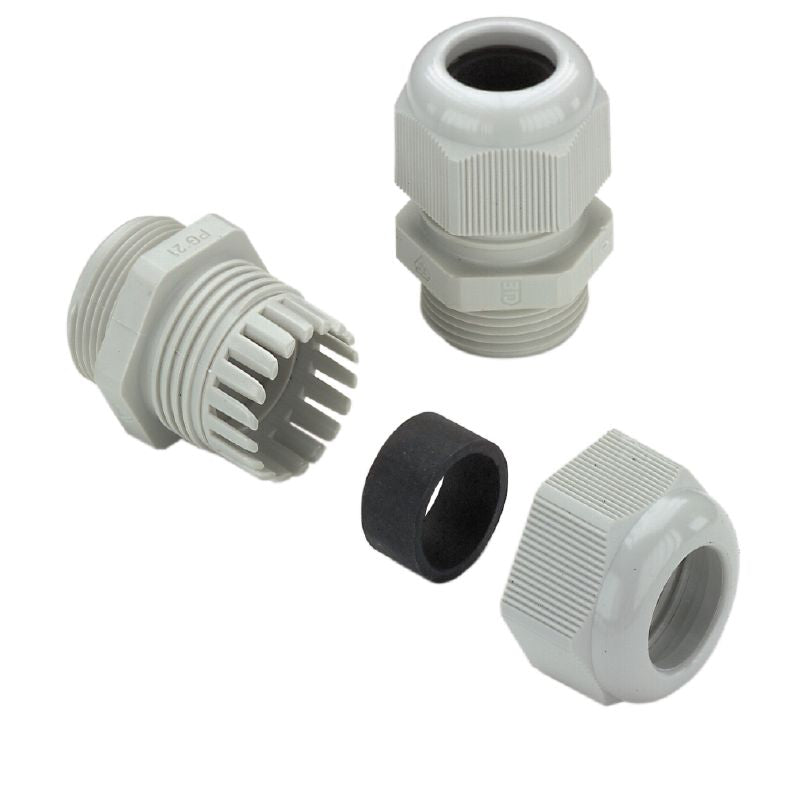

Introducing the VG M20 - K 68, a versatile plastic cable gland specifically designed for straight connections This reliable product accommodates cables with outer diameters ranging from 10 mm to 14 mm With impressive protection ratings of IP54, IP66, IP67, and IP68 at 5 bar pressure for up to 30 minutes, it ensures robust defense against environmental factors Crafted from durable Polyamide 6, this cable gland is RoHS compliant and contains no SVHCs above 0.

1 wt% It operates effectively in extreme temperatures, functioning within a range of -40 °C to 100 °C, making it an excellent choice for various applications.

Features and Benefits:

•Halogen-free.

•IP54, IP66, IP67, IP68 protection degrees.

•Compliant with RoHS regulations.

Specifications:

Height	31 mm
Height (inches)	1.22 inch
Length	41 mm
Length (inches)	1.614 inch
Operating temperature	-40 °C to 100 °C
Basic material	Polyamide 6
External thread	M 20
Pitch of thread	1.5 mm
Outer cable diameter, max	14 mm
Outer cable diameter, min	10 mm
Tightening torque	3.5 Nm
Torque for cap nut, max	4.5 Nm
Torque for cap nut, min	3.5 Nm
Torque for connecting adapter, max	4 Nm
Torque for connecting adapter, min	3 Nm
Torque for lock nut, max	4 Nm
Torque for lock nut, min	3 Nm
UL 94 flammability rating	V-2
