2584210000 - IP66 Polyamide Cable Entry System, 68.8mm Height, Black (Pack of 10)

2584210000 - IP66 Polyamide Cable Entry System, 68.8mm Height, Black (Pack of 10)

SKU: 2584210000   Download PDF

Select a Variant:
  • 2584210000 - IP66 Polyamide Cable Entry System, 68.8mm Height, Black (Pack of 10)
Qty:
Now $108.01   Web pricing policy
BEFORE   $0.00 Now $108.01 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

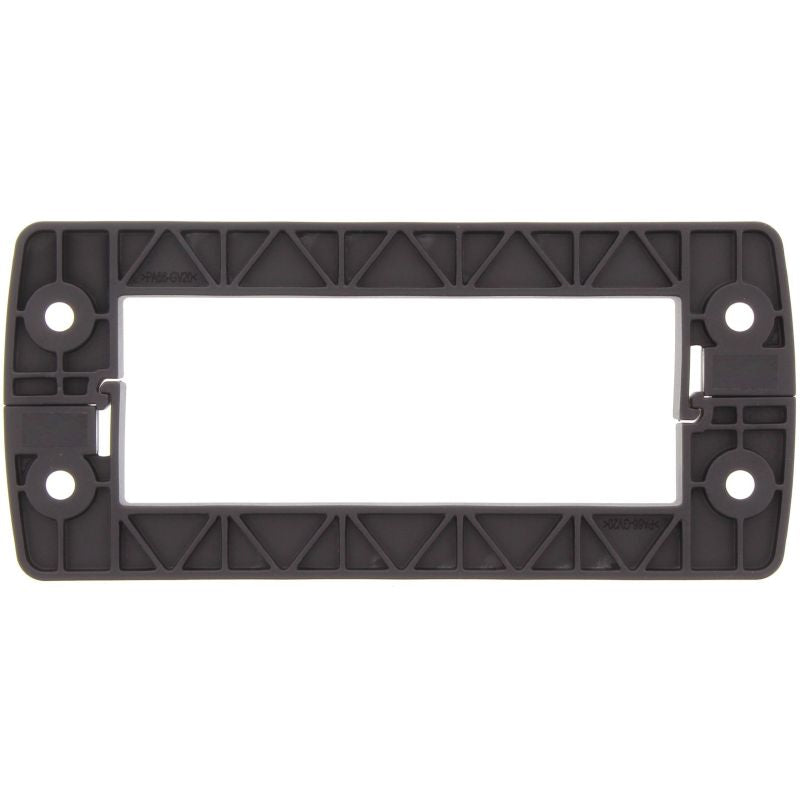

Introducing the CABTITE FRL 24/10 BK, an advanced cable entry system expertly crafted from glass fiber-reinforced polyamide This robust unit boasts a striking deep black hue and measures 688 mm in height, 152 mm in width, and 113 mm in depth Engineered to withstand a temperature range from -40 °C to 120 °C, it offers exceptional performance in various environments With an IP66 rating, this product ensures outstanding protection against dust and water intrusion.

Additionally, it complies with RoHS regulations and is free from any substances of very high concern (SVHC) over 01 wt%.

Features and Benefits:

    •IP66 protection rating.

    •RoHS compliant without exemption.

    •Flammability rating of UL 94 V-0.

    •Does not contain halogens or silicone.

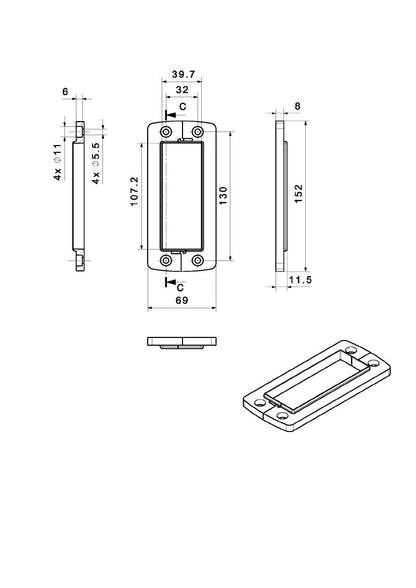

Specifications:

 Depth 11.3 mm
 Height 68.8 mm
 Width 152 mm
 Diameter 5.5 mm
 Operating temperature -40 °C...120 °C
 Tightening torque 3 Nm
 Basic material Polyamide, glass fibre-reinforced
 Opening length 107.5 mm
 Opening width 40 mm
 Mounting dimension - height 130 mm
 Mounting dimension - width 32 mm
