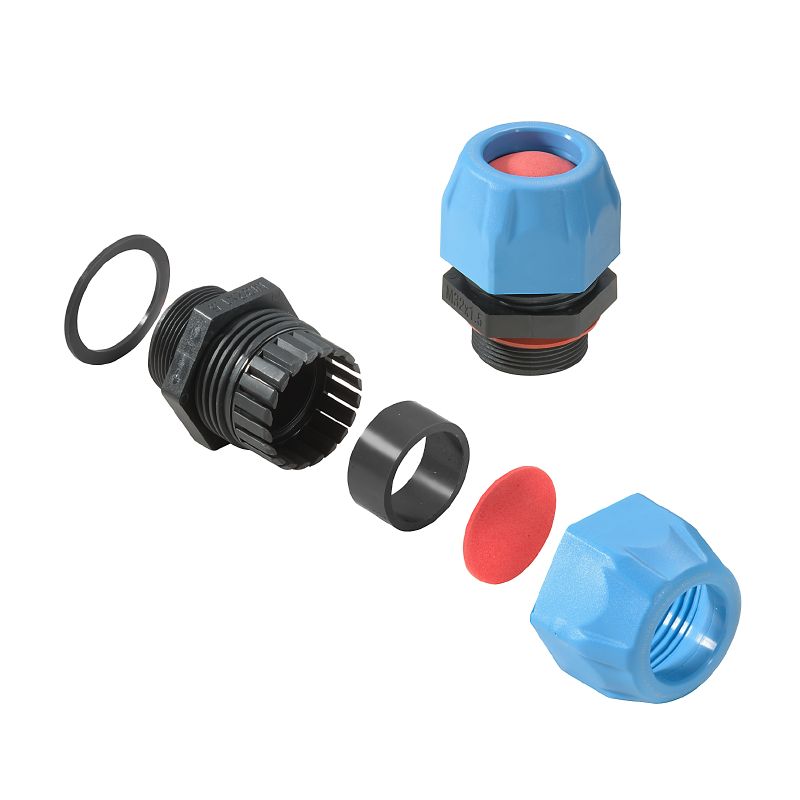

2722300000 - Robust M32 Cable Gland, IP68, 19-25mm, Polyamide Construction (Pack of 20)

SKU: SKU: 2722300000 Download PDF

Select a Variant:

2722300000 - Robust M32 Cable Gland, IP68, 19-25mm, Polyamide Construction (Pack of 20)

SET THE QTY:

Now $226.13 Web pricing policy

~~BEFORE $0.00~~ Now $226.13 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the VG Exi 7J, an exceptional Ex plastic cable gland tailored for M32 applications Capable of accommodating external diameters ranging from 19 mm to 25 mm, this cable gland offers superior protection with an IP rating of IP54, IP66, IP67, and IP68, ensuring operation under pressures of up to 5 bar for 30 minutes Constructed from durable polyamide 6, the VG Exi 7J meets various safety standards including ATEX and IECEx, making it a reliable choice for use in hazardous environments.

It boasts an impact resistance of 7 joules in accordance with IEC 60079-0 standards and functions efficiently across a temperature spectrum of -40 °C to 70 °C.

Features and Benefits:

•Compliant with RoHS without exemption.

•Intrinsically safe Ex i explosion protection.

•Halogen-free material.

•Suitable for a variety of installation requirements.

•High-impact resistance.

•Compatible with multiple cable sizes.

Specifications:

Height	46.7 mm
Length	40.5 mm
Operating temperature	-40 °C to 70 °C
Basic material	Polyamide 6
External thread	M 32
Outer cable diameter, min.	19 mm
Outer cable diameter, max.	25 mm
Tightening torque	9 Nm
Protection degree	IP54, IP66, IP67, IP68 - 5 bar (30 min.)
Seal insert	CR
Standard compliance	IEC 60079-0, EN 60079-0, IEC 60079-7, EN 60079-7, IEC 60079-31
