Description:

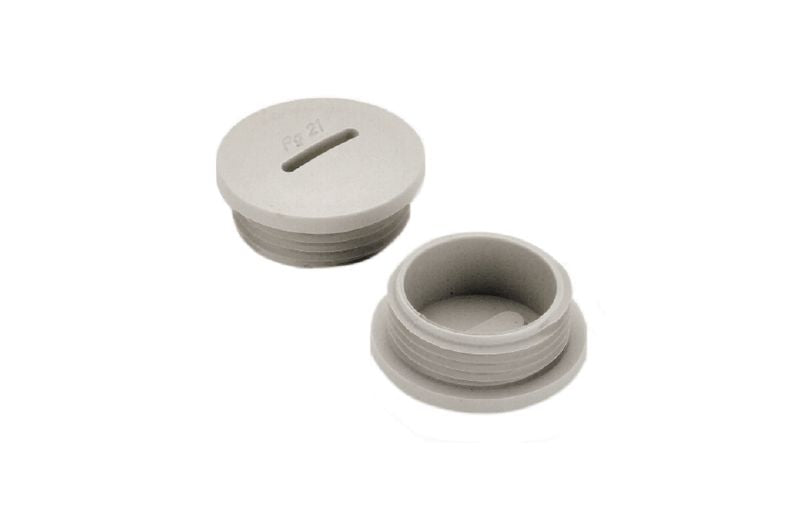

Introducing the VP M20 K54 blanking plug, expertly crafted from durable plastic With a size classification of M20 and a measured diameter of 20 mm, this plug is designed for a secure closed state It boasts an IP65 protection rating, ensuring excellent resistance against dust and water Made from Polyamid 6 (PA6 - GF30), this product is fully RoHS compliant with no exemptions, and it contains no SVHC exceeding 0.

1% by weight Ideal for reliable sealing in various applications.

Features and Benefits:

•Compliant with RoHS without any exemptions.

•IP65 protection rating.

•Constructed from durable Polyamid 6 (PA6 - GF30).

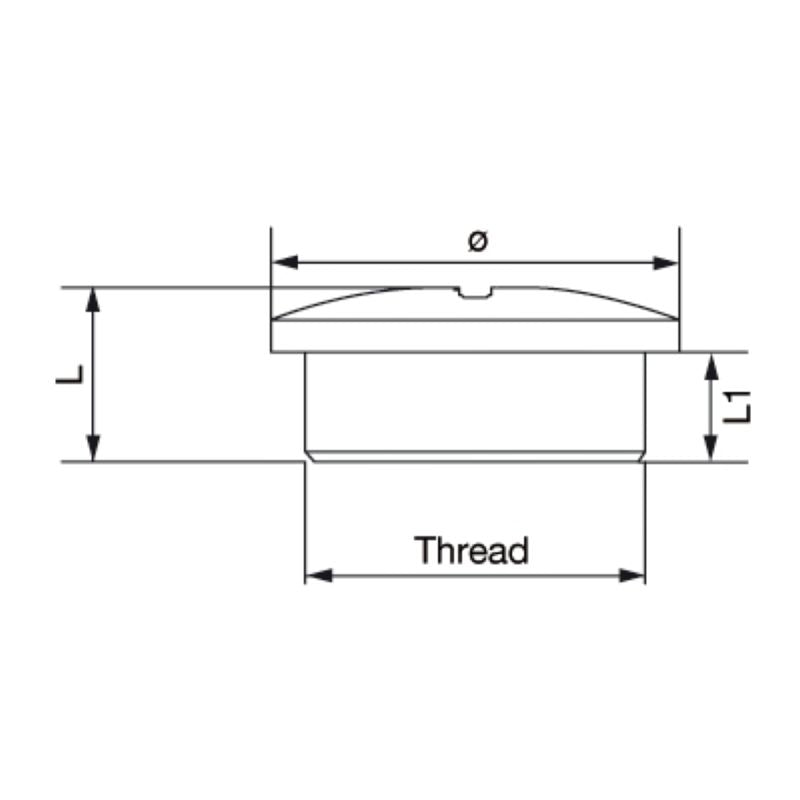

Specifications:

Height	3.5 mm
Length	6.5 mm
Diameter	20 mm
Wall thickness, min.	0.5 mm
Wall thickness, max.	6 mm
Operating temperature range, max.	100 °C
Operating temperature range, min.	-40 °C
Head diameter	24 mm
Length of thread	7 mm
Pitch of thread	1.5 mm
Protection degree	IP54
Protection degree with GWDR	IP65
UL 94 flammability rating	V-2
Basic material	Polyamid 6 (PA6 - GF30)
External thread	M 20
Diameter of sealing ring	20 mm
