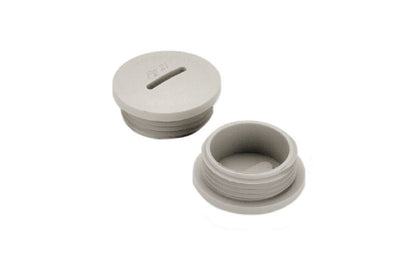

0501160000 - IP65 Rated PA6 Blanking Plug, 11.5mm x 37mm (Pack of 100)

SKU: SKU: 0501160000 Download PDF

Select a Variant:

0501160000 - IP65 Rated PA6 Blanking Plug, 11.5mm x 37mm (Pack of 100)

SET THE QTY:

Now $93.10 Web pricing policy

~~BEFORE $0.00~~ Now $93.10 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the VP 29-K54 blanking plug, expertly crafted from Polyamide 6 (PA6 - GF30) for outstanding durability With a design tailored for PG 29 applications, it offers reliable protection with an IP65 rating This plug measures 115 mm in length and 37 mm in diameter, standing at a height of 35 mm It adheres to RoHS standards and operates efficiently in temperature ranges of -40 °C to 100 °C, making it a versatile choice for various environments.

Features and Benefits:

•Compliant with RoHS regulations.

•IP65 rated for protection.

•Constructed from Polyamide 6 (PA6 - GF30).

•No halogens present.

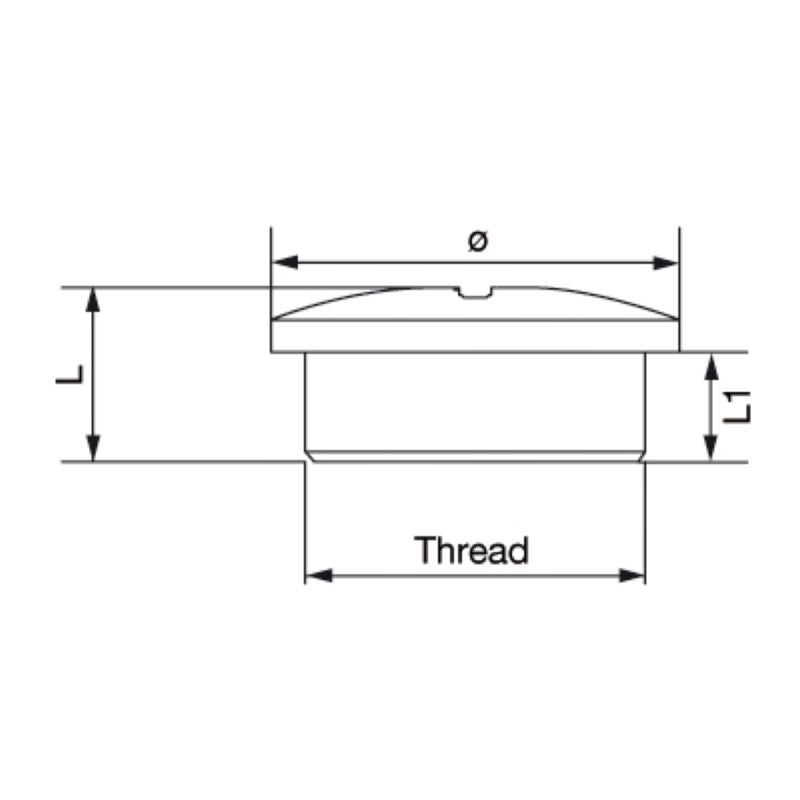

Specifications:

Height:	3.5 mm
Length:	11.5 mm
Diameter:	37 mm
Wall thickness, min.:	0.5 mm
Wall thickness, max.:	7 mm
Operating temperature range, min.:	-40 °C
Operating temperature range, max.:	100 °C
Protection degree:	IP54
Protection degree with GWDR:	IP65
UL 94 flammability rating:	V-2
Basic material:	Polyamid 6 (PA6 - GF30)
Cable gland:	PG
Diameter of sealing ring:	37 mm
External thread:	PG 29
Length of thread:	8 mm
Net weight:	5.12 g
RoHS Compliance Status:	Compliant without exemption
REACH SVHC:	No SVHC above 0.1 wt%
