2584200000 - IP66 Separable Cable Gland, 23.7mm Height, Polyamide Reinforced (Pack of 10)

SKU: SKU: 2584200000 Download PDF

Select a Variant:

2584200000 - IP66 Separable Cable Gland, 23.7mm Height, Polyamide Reinforced (Pack of 10)

SET THE QTY:

Now $166.82 Web pricing policy

~~BEFORE $0.00~~ Now $166.82 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

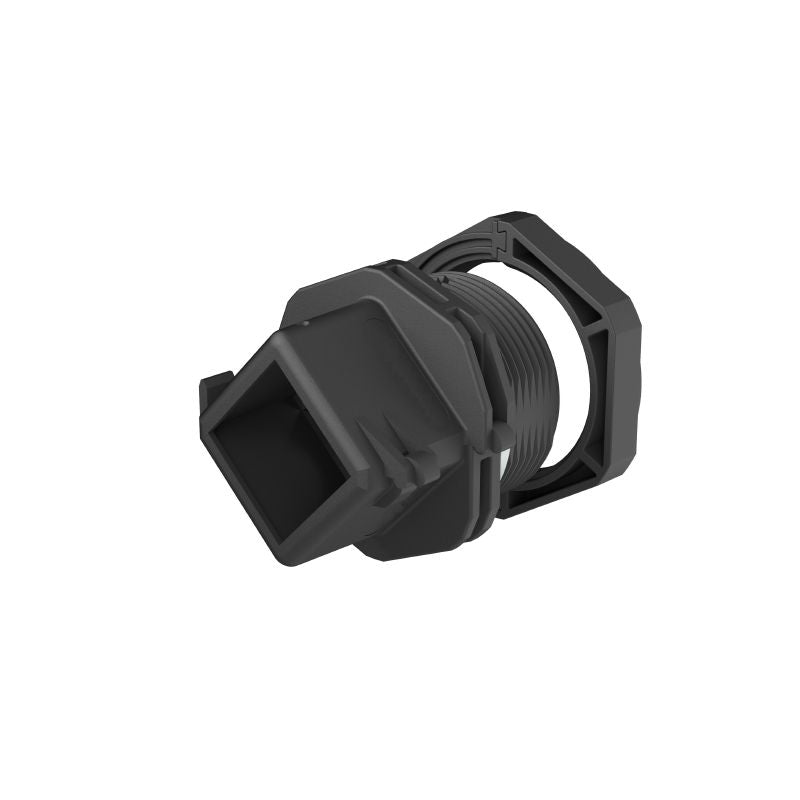

Introducing the CABTITE CGS M20 BK, a robust separable cable gland engineered for efficient cable entry Crafted from polyamide reinforced with glass fibers, this durable component boasts dimensions of 237 mm in height, 40 mm in width, and 387 mm in depth It operates effectively in extreme temperatures ranging from -40 °C to 120 °C and is rated IP66, providing excellent protection against both dust and water.

The gland is elegantly finished in a deep black color and features a TPE sealing element for superior sealing capabilities.

Features and Benefits:

•IP66 protection degree against dust and water.

•Operating temperature range from -40 °C to 120 °C.

•Constructed from glass-fiber reinforced polyamide.

•TPE sealing element.

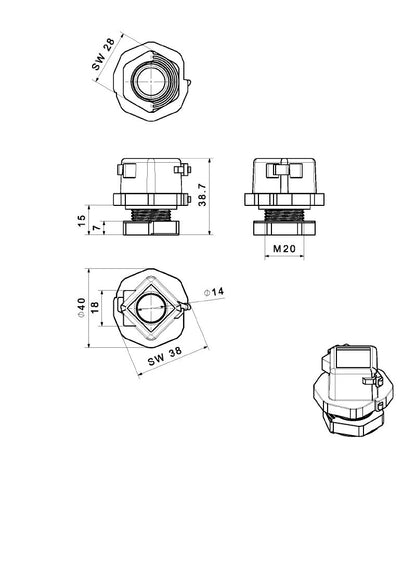

Specifications:

Depth	38.7 mm (1.524 inch)
Height	23.7 mm (0.933 inch)
Width	40 mm (1.575 inch)
Length	38.7 mm (1.524 inch)
External thread	M 20
Length of thread	15 mm
Opening diameter	20 mm
Pitch of thread	1.5 mm
Tightening torque, max	4 Nm
Tightening torque, min	3.8 Nm
UL 94 flammability rating	V-0
RoHS Compliance Status	Compliant without exemption
AF size 1	38 mm
AF size 2	28 mm
