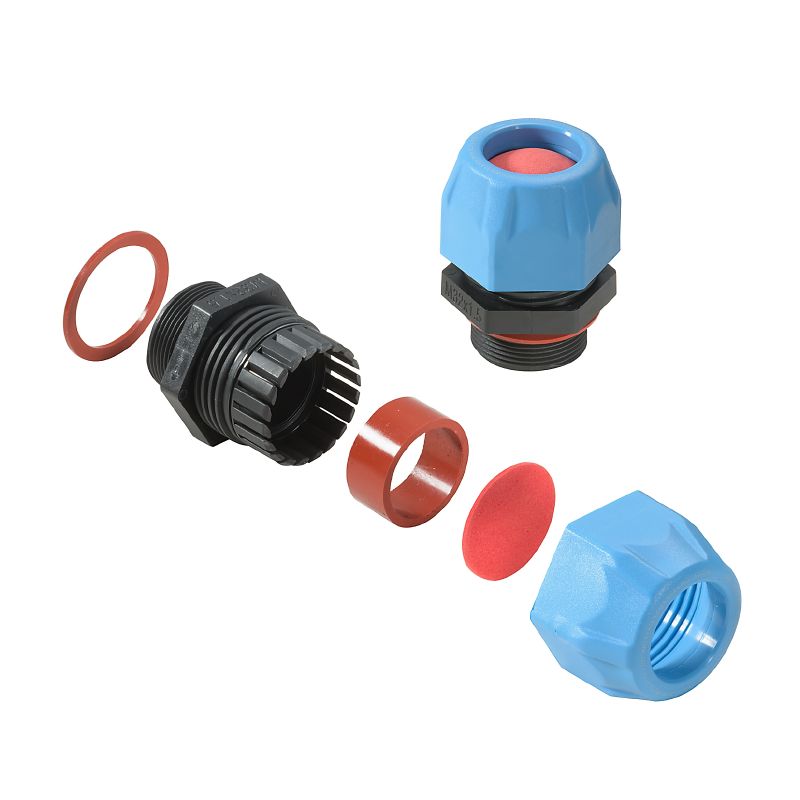

2722450000 - M40 Exi 7J Cable Gland, Polyamide, 20-28mm, IP68 Protection (Pack of 15)

2722450000 - M40 Exi 7J Cable Gland, Polyamide, 20-28mm, IP68 Protection (Pack of 15)

SKU: 2722450000   Download PDF

Select a Variant:
  • 2722450000 - M40 Exi 7J Cable Gland, Polyamide, 20-28mm, IP68 Protection (Pack of 15)
Qty:
Now $344.33   Web pricing policy
BEFORE   $0.00 Now $344.33 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the VG Exi 7J, a highly efficient Ex plastic cable gland tailored for straightforward installation This model fits external threads measured at M 40 and supports an outer diameter range from 20 mm to 28 mm With impressive protection ratings of IP54, IP66, IP67, and IP68, it ensures reliable sealing against water and dust, sustaining pressure of up to 5 bars for 30 minutes Manufactured from polyamide 6, this cable gland is versatile and suitable for a wide array of environments.

Features and Benefits:

    •Compatible with cable diameters from 20 mm to 28 mm.

    •Built from durable polyamide 6.

    •Intrinsically safe Ex i explosion protection type.

    •Impact resistance of 7 joules per IEC 60079-0 standards.

    •Compliant with RoHS without exemptions.

Specifications:

 Height 50.4 mm
 Length 46 mm
 Operating temperature range -60 °C to 70 °C
 Protection degree IP54, IP66, IP67, IP68 - 5 bar (30 min.)
 Seal insert Silicone
 Tightening torque 5 Nm
 Torque for cap nut 4 Nm - 6 Nm
 Pitch of thread 1.5 mm
 UL 94 flammability rating HB
 Certifications ATEX and IECEx approved with respective certificates
