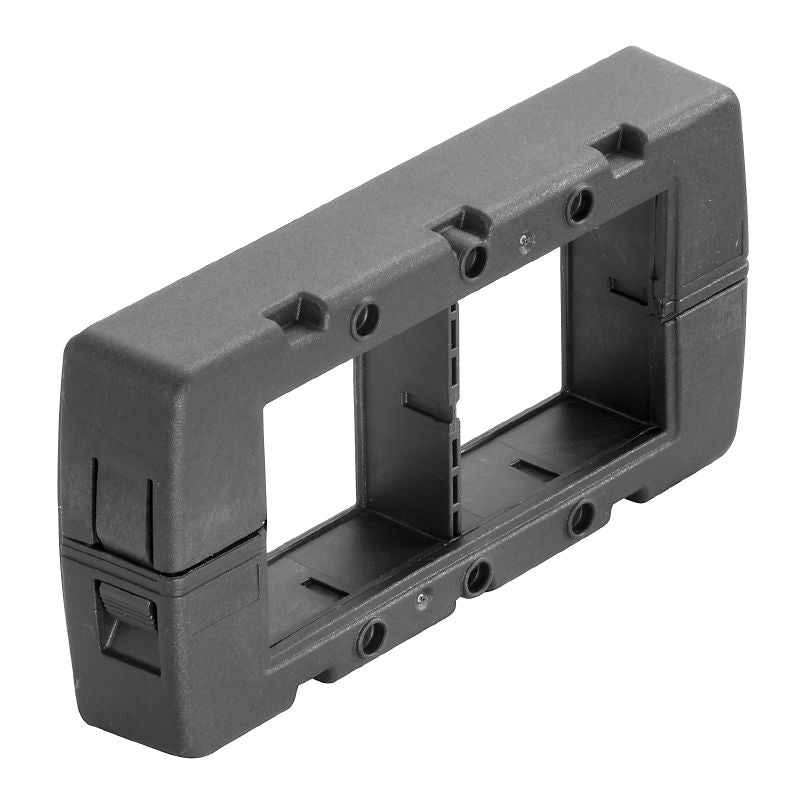

2891510000 - Polyamide Cable Frame, 70mm Height, IP66 Protection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CABTITE FRFT 16/8, a robust frame tailored for cable entry systems Crafted from polyamide and reinforced with glass fibers, this product boasts a striking deep black finish With a height of 70 mm, a width of 81 mm, and a depth of 196 mm, it provides a compact yet durable solution It operates effectively in extreme temperatures, ranging from -40 °C to 120 °C, ensuring reliable functionality in challenging environments.

Boasting an IP66 protection rating, this frame excels in safeguarding against dust and water intrusion, making it ideal for various applications.

Features and Benefits:

•RoHS compliant without exemptions.

•Protection class (UL) Type 12 and Type 4X.

•Sealing is provided by TPE with multiple options for sealing elements.

•UL 94 flammability rating of V-0.

•Halogen-free.

Specifications:
