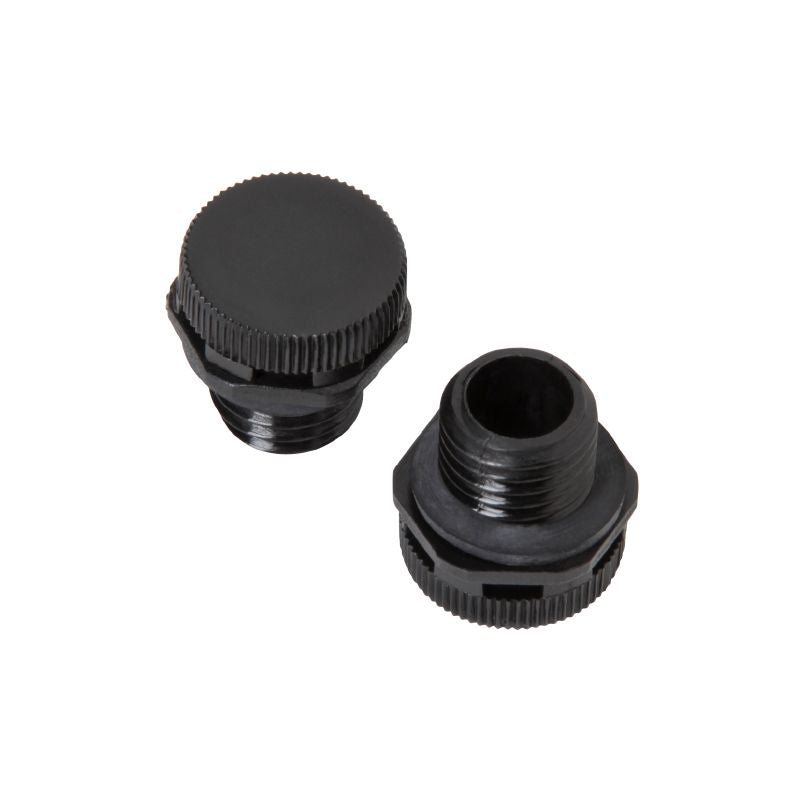

2729530000 - M12 Polyamide Ventilation Element, IP66/IP68 Rated, 7.6mm High

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience superior ventilation with the DAE M12 PA LONG UL, a straight compensating element made from durable polyamide 6 Engineered for use in demanding environments, this component boasts impressive protection ratings of IP66, IP68, and IP69K With RoHS compliance, it assures safety and reliability Measuring 76 mm in height and 176 mm in length, this element features an M12 thread and operates efficiently within a temperature range of -40 °C to 105 °C.

For optimal airflow, it supports a range from 08 l/min at 01 bar ΔP to a maximum of 76 l/min at 1 bar ΔP, making it a versatile choice for your ventilation needs.

Features and Benefits:

•Halogen-free material.

•IP66, IP68, and IP69K protection ratings.

•Compliant with RoHS without exemption.

•Operating temperature range from -40 °C to 105 °C.

Specifications:
