Home / CABLE ENTRY SYSTEMS AND COMPONENTS / 2891530000 - IP66 Polyamide Cable Entry Box, 64mm Height, Black
1 6

2891530000 - IP66 Polyamide Cable Entry Box, 64mm Height, Black

2891530000 - IP66 Polyamide Cable Entry Box, 64mm Height, Black

SKU: 2891530000   Download PDF

Select a Variant:
  • 2891530000 - IP66 Polyamide Cable Entry Box, 64mm Height, Black
Qty:
Now $39.23   Web pricing policy
BEFORE   $0.00 Now $39.23 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

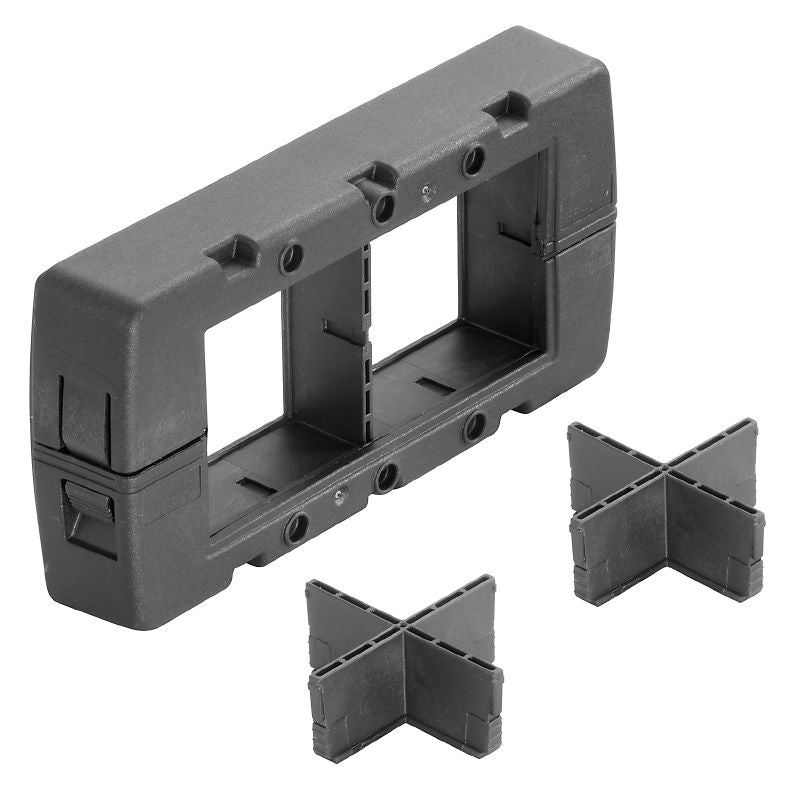

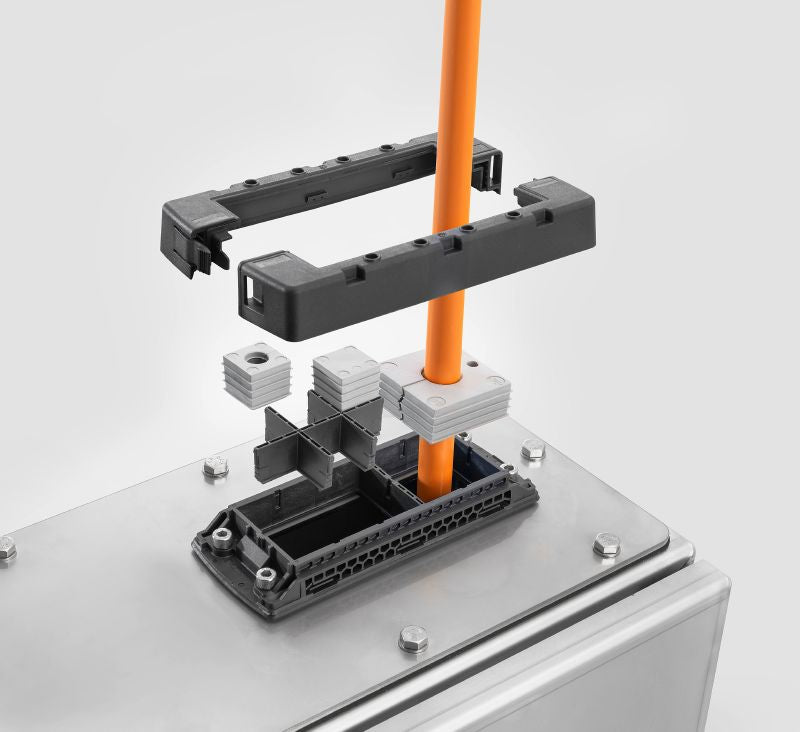

Introducing the CABTITE FRFT 16/8 SET, expertly engineered for effective cable entry Constructed from reinforced polyamide with added glass fibers, this accessory boasts a sophisticated deep black hue Its dimensions include a height of 64 mm, a width of 126 mm, and a depth of 242 mm Capable of enduring extreme temperatures from -40 °C to 120 °C, this product is also rated with an IP66 classification, providing robust protection against dust and water intrusion.

It comes with a variety of sealing options for a reliable installation, although please note that fixing materials are not included.

Features and Benefits:

    •Constructed from polyamide, glass fiber-reinforced.

    •IP66 protection degree.

    •Operating temperature range of -40 °C to 120 °C.

    •Halogen-free.

    •Includes multiple sealing options.

Specifications:

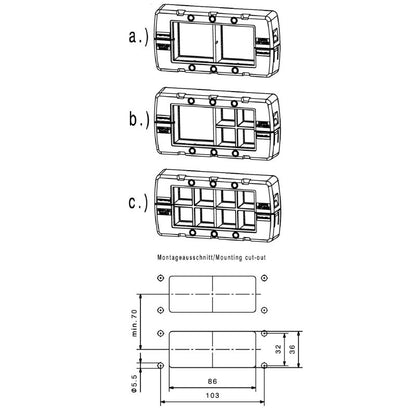

 Height 64 mm
 Width 126 mm
 Depth 24.2 mm
 Net weight 89.1 g

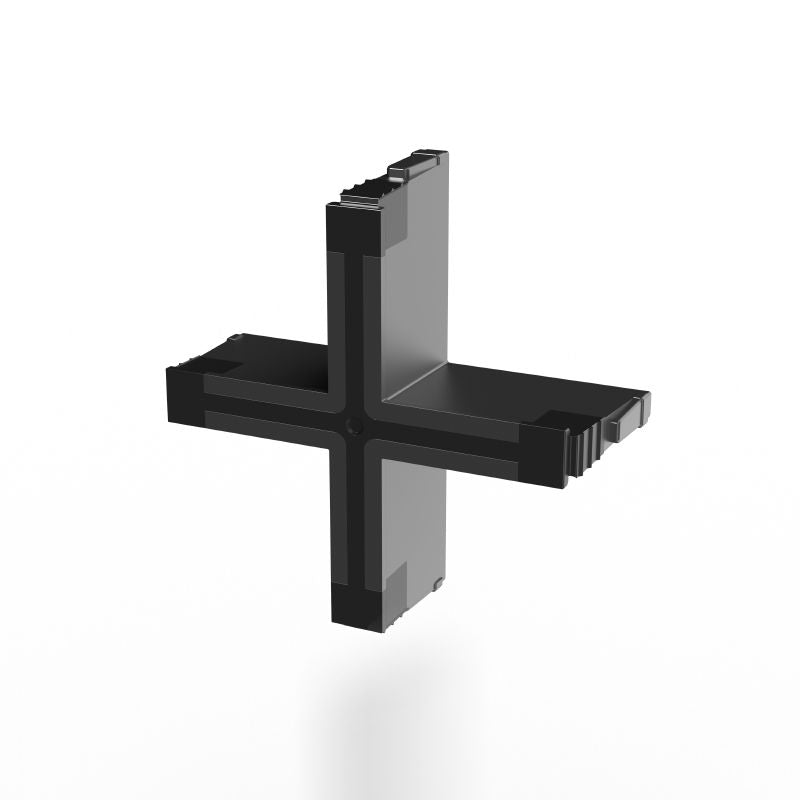

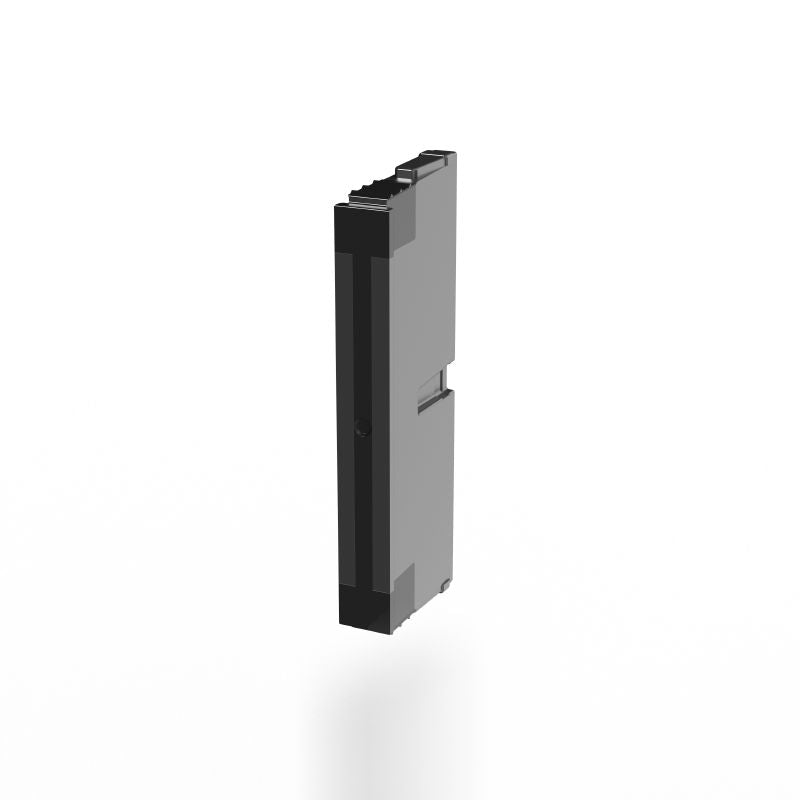

 Sealing element 2 large sealing elements or 4 small sealing elements or 1 large sealing element and 4 small sealing elements or 8 small sealing elements
 Tightening torque 3 Nm
 UL 94 flammability rating V-0
 Protection class (UL) Type 12, Type 4X
 RoHS Compliance Status Compliant without exemption
 REACH SVHC No SVHC above 0.1 wt%
