2066720000 - IP68 Rated 12mm Polyamide Blanking Plug with Ex Certification (Pack of 100)

2066720000 - IP68 Rated 12mm Polyamide Blanking Plug with Ex Certification (Pack of 100)

SKU: 2066720000 Download PDF

Variant:
  • 2066720000 - IP68 Rated 12mm Polyamide Blanking Plug with Ex Certification (Pack of 100)
Now $178.27
BEFORE   $0.00 Now $178.27
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

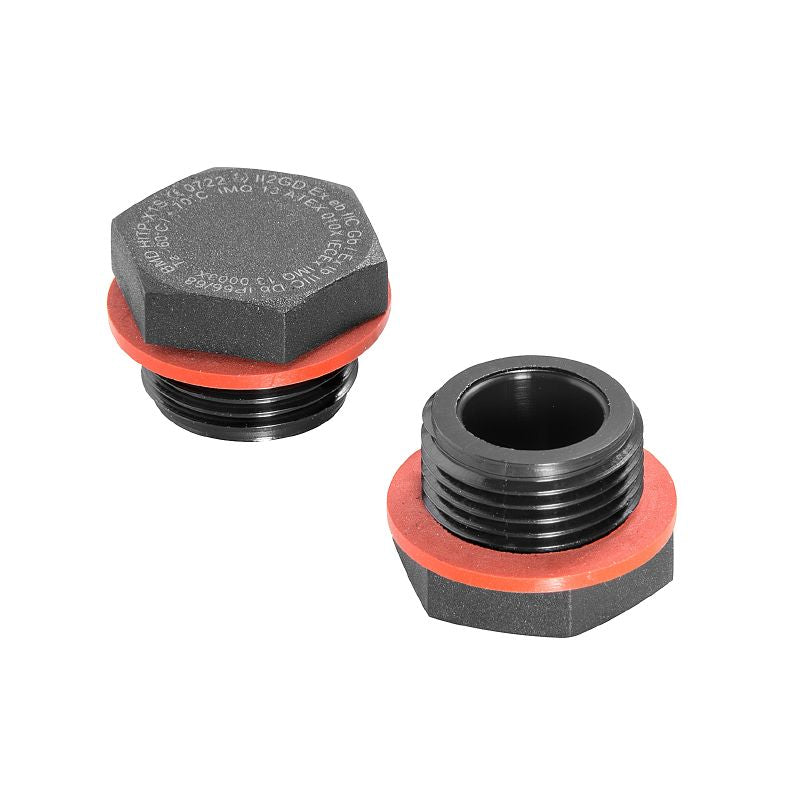

Introducing the VP M16 EX SI 7J, a reliable blanking plug crafted from durable polyamide 6 This product is engineered with a closed design and meets various protection standards, including IP54, IP66, IP67, and IP68 It can withstand water pressure up to 5 bar for durations of 30 minutes Additionally, this blanking plug is certified to Ex standards and conforms to RoHS regulations without exceptions, ensuring safety and environmental compliance.

Features and Benefits:

    •Improved safety Ex e explosion protection type.

    •Compliant with various IP ratings.

    •Impact resistance rated at 7 joules in accordance with IEC60079-0.

    •Installation guidelines are provided in the assembly instructions.

Specifications:

 Height 16.3 mm
 Length 16.3 mm
 Diameter 16 mm
 Operating temperature -60 °C to 70 °C
 Basic material Polyamide 6
 O-Ring Silicone
 Wall thickness, min. 0.5 mm
 Wall thickness, max. 11 mm
 External thread M 16
 Length of thread 12 mm
 Sealing Silicone
 Protection degree IP54, IP66, IP67, IP68 - 5 bar (30 min.)
 Torque for connecting adapter, max. 1.5 Nm
 Torque for connecting adapter, min. 1.5 Nm
 Torque for lock nut, max. 1.5 Nm
 Torque for lock nut, min. 1.3 Nm
 UL 94 flammability rating HB
 Approval conditions ATEX, IECEX
 Certificate no. cable gland (ATEX) IMQ 13 ATEX 010 X
 Certificate no. cable gland (IECEx) IECEx IMQ 13.0003X
 Certificate no. cable gland (INMETRO) TAE00003WV
 GTIN (EAN) 4050118415438
