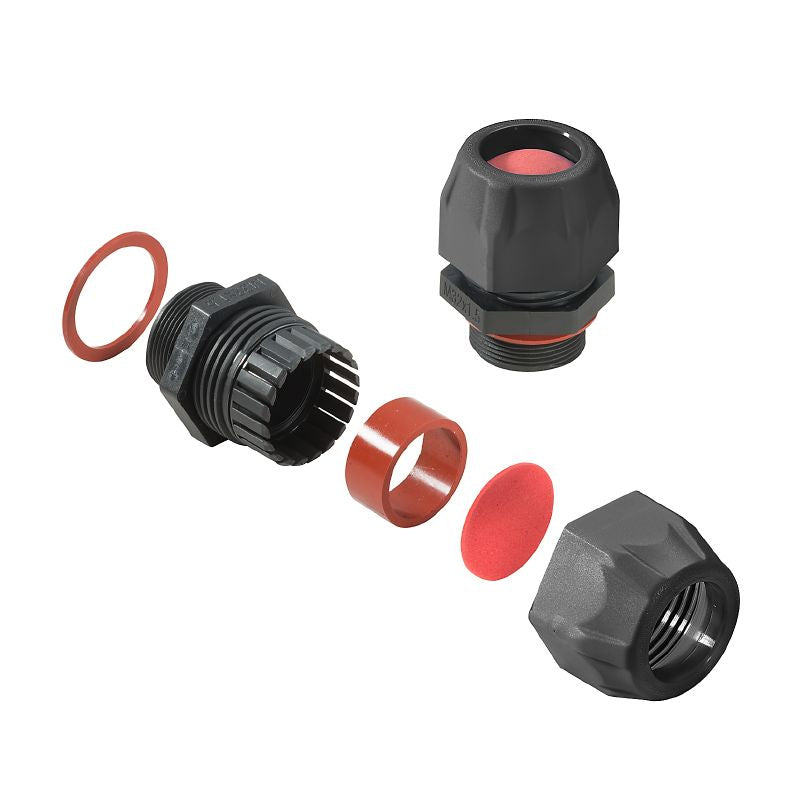

2722160000 - M32 IP68 Cable Gland, 19-25mm, Polyamide, 40.5mm Length (Pack of 20)

SKU: SKU: 2722160000 Download PDF

Select a Variant:

2722160000 - M32 IP68 Cable Gland, 19-25mm, Polyamide, 40.5mm Length (Pack of 20)

SET THE QTY:

Now $271.90 Web pricing policy

~~BEFORE $0.00~~ Now $271.90 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the VG Exe 7J, a durable straight cable gland crafted from high-quality Polyamide 6 Suitable for M32 connections, it accommodates outer diameters ranging from 19 mm to 25 mm With an impressive protection rating of IP54, IP66, IP67, and IP68, it can endure pressures of up to 5 bar for a duration of 30 minutes Measuring 405 mm in length and 467 mm in height, this cable gland is built to perform reliably in extreme temperatures, functioning effectively between -60 °C and 70 °C.

Its robust construction makes it an excellent choice for challenging environmental conditions.

Features and Benefits:

•Protection against water and dust with IP54/IP66/IP67/IP68 ratings.

•Operating temperature range from -60 °C to 70 °C.

•Suitable for a wide range of cable outer diameters (19-25 mm).

•Constructed from durable Polyamide 6.

•Impact resistance of 7 joules according to IEC 60079-0 standards.

Specifications:

Height	46.7 mm
Length	40.5 mm
Net weight	40.04 g
Outer cable diameter, min.	19 mm
Outer cable diameter, max.	25 mm
Length of thread	15 mm
Pitch of thread	1.5 mm
Tightening torque	9 Nm
Torque for cap nut, max.	10 Nm
Torque for cap nut, min.	8 Nm
Torque for connecting adapter, max.	10 Nm
Torque for connecting adapter, min.	8 Nm
Explosion protection type	Improved safety Ex e
Seal insert	Silicone
Sealing	Silicone
Basic material	Polyamide 6
Certification numbers	{'ATEX': 'IMQ 13 ATEX 010 X', 'IECEx': 'IECEx IMQ 13.0003X', 'INMETRO': 'DNV 18.0150 X/01'}
